125A2R134C125-ISLN12-C
125A2R134C125-ISLN12-C
125A2R134C125-ISLN12-C

125A2R134C125-ISLN12-C

UGC DOR6792999
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$556.00 CAD - $556.00 CAD
$556.00 CAD
$556.00 CAD - $556.00 CAD
$556.00 CAD

Vendu en lots de : 1

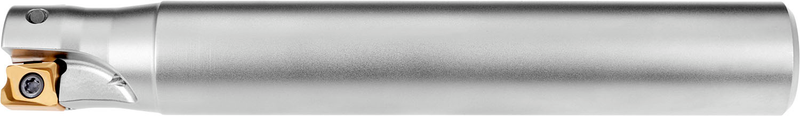

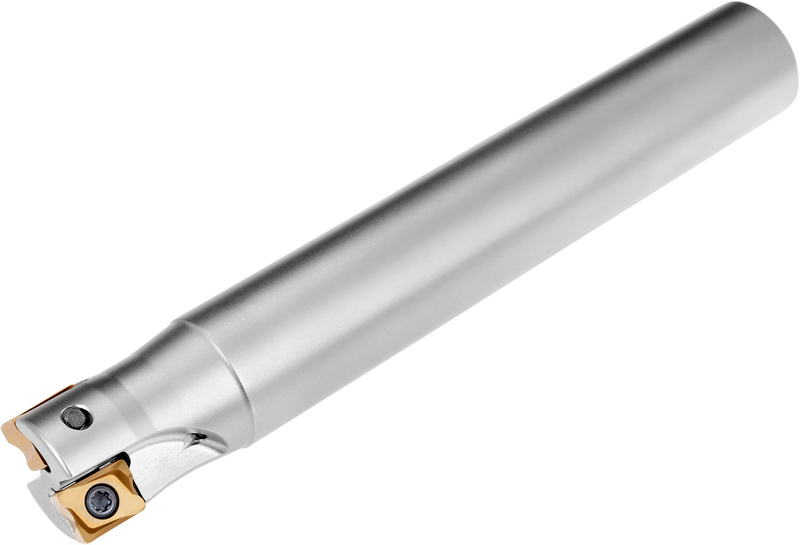

Fraise à épaulement à géométrie double négative qui utilise 2 plaquettes double face LNGX 1205.. ou LNGU 1205.., diamètre de coupe de 1,250'' avec un angle d'approche de 90° et une queue cylindrique de 1,250'' selon DIN 1835A, longueur fonctionnelle de 1,340'' et longueur totale de 7,677'', arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 0,354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A2R134C125-ISLN12-C
Product Number6792999
Product FamilyISLN12

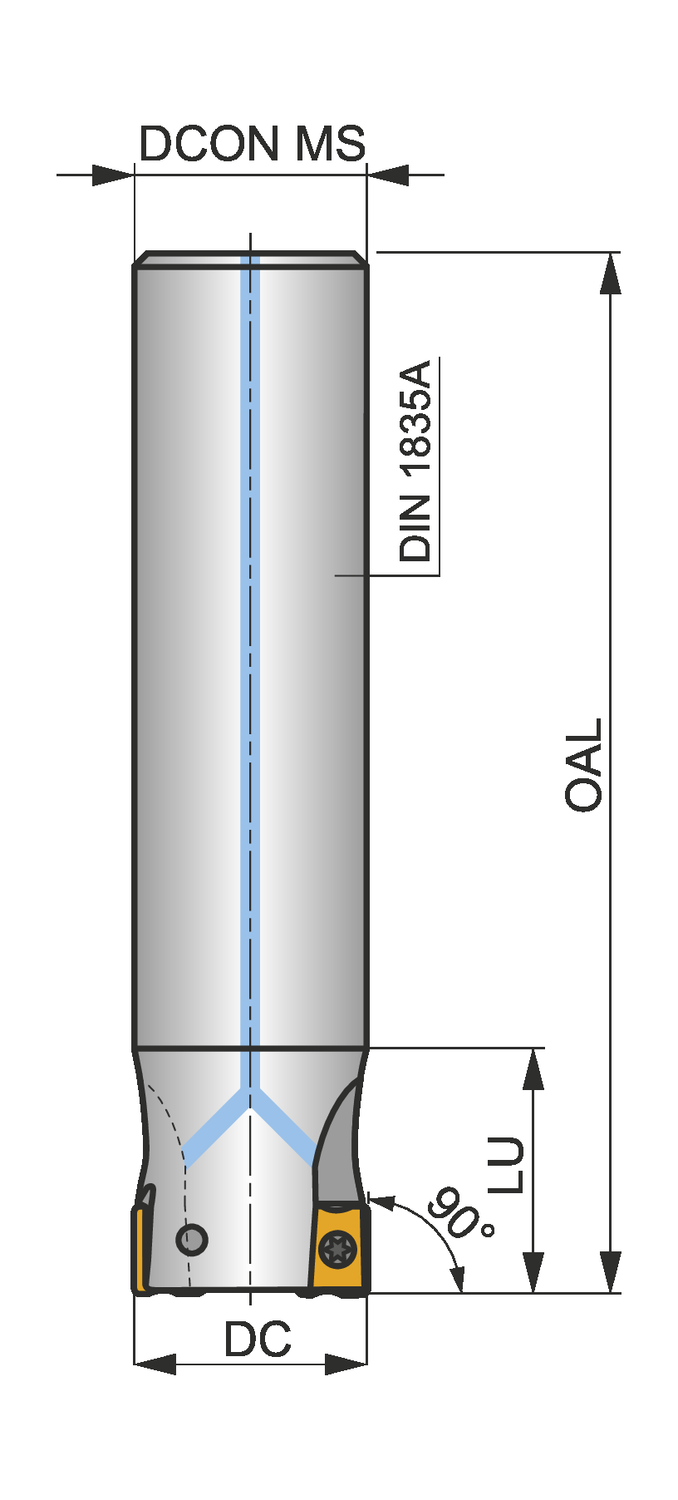

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)195.0 mm
Usable Length — in (LU)1.34"
Usable Length — mm (LU)34.04 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSLN12
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792999
EAN3603602988249
File Type Download
125A2R134C125-ISLN12-C — 3D Model STP Download
125A2R134C125-ISLN12-C — 2D Model DXF Download
125A2R134C125-ISLN12-C — Line Drawing PDF Download
