25A2R033M12-SLN12-C
25A2R033M12-SLN12-C
25A2R033M12-SLN12-C

25A2R033M12-SLN12-C

UGC DOR6798614
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$475.00 CAD - $475.00 CAD
$475.00 CAD
$475.00 CAD - $475.00 CAD
$475.00 CAD

Vendu en lots de : 1

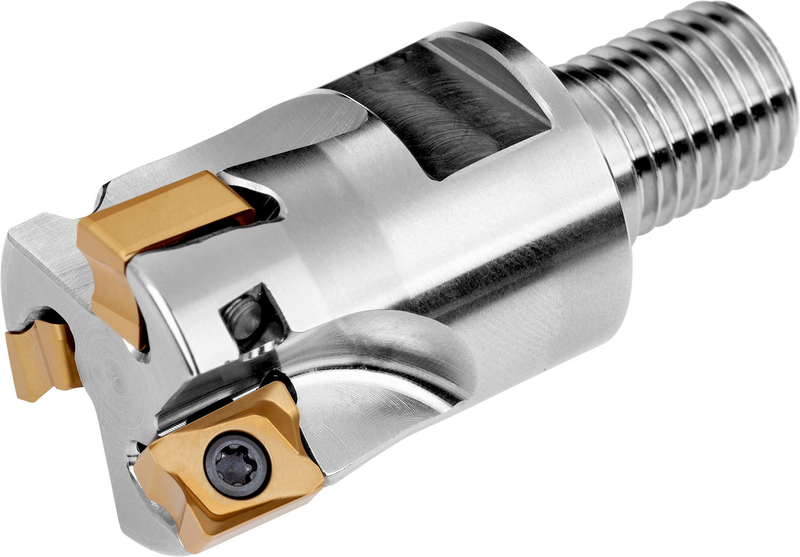

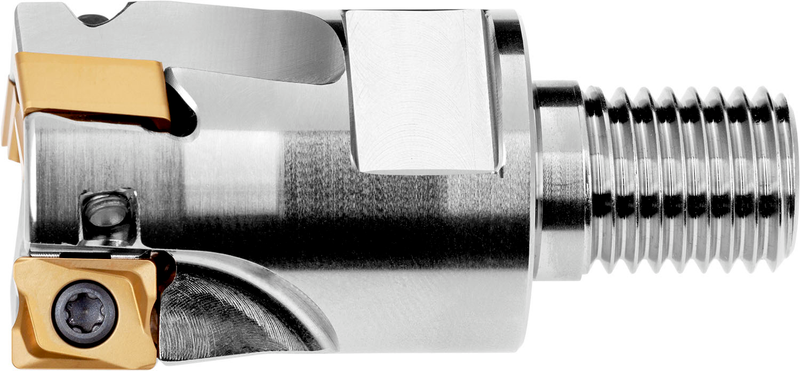

Fraise à surfacer-dresser avec géométrie double-négative utilisant 2 plaquettes double face LNGX 1205... ou LNGU 1205..., diamètre de coupe 25 mm avec angle d'attaque de 90° et queue filetée M12 pour porte-outils modulaires standards, longueur de dépassement 33 mm, arrosage central pour le surfaçage-dressage léger, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 9,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R033M12-SLN12-C
Product Number6798614
Product FamilySLN12
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

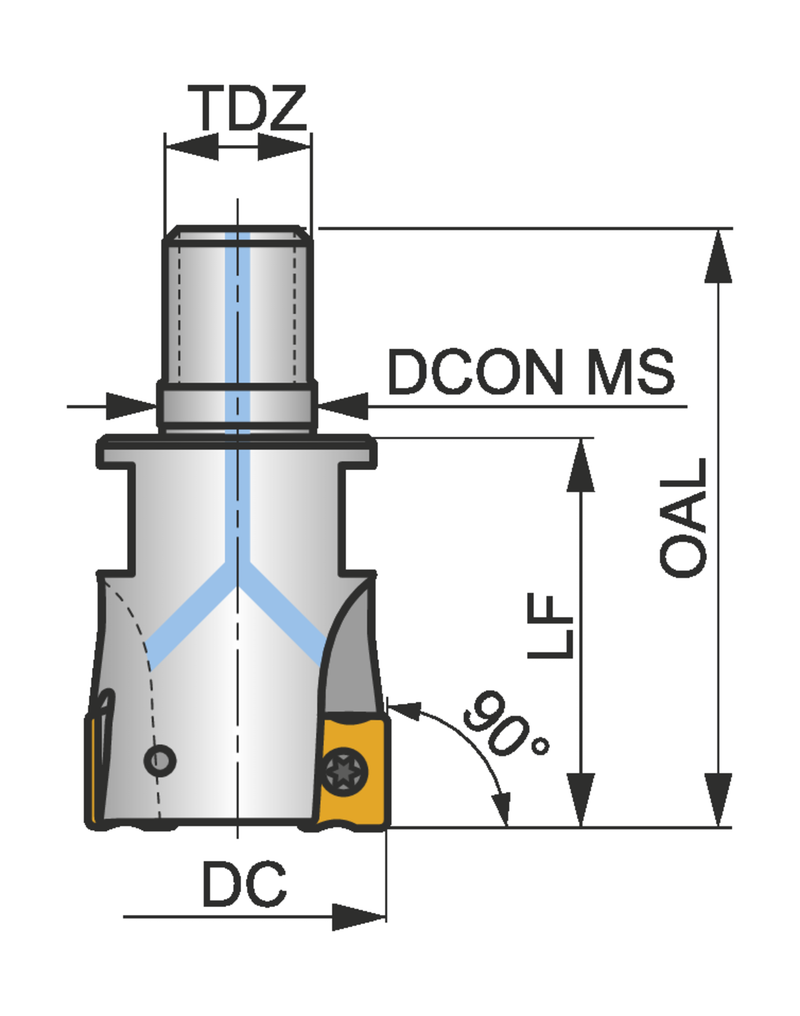

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — mm (LF)33.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)–
Tool Information
Tool DesignSLN12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798614
EAN3603602992529
File Type Download
25A2R033M12-SLN12-C — 3D Model STP Download
25A2R033M12-SLN12-C — 2D Model DXF Download
25A2R033M12-SLN12-C — Line Drawing PDF Download
