300A04R-IS90SN11N3
300A04R-IS90SN11N3
300A04R-IS90SN11N3

300A04R-IS90SN11N3

UGC DOR6789670
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD

Vendu en lots de : 1

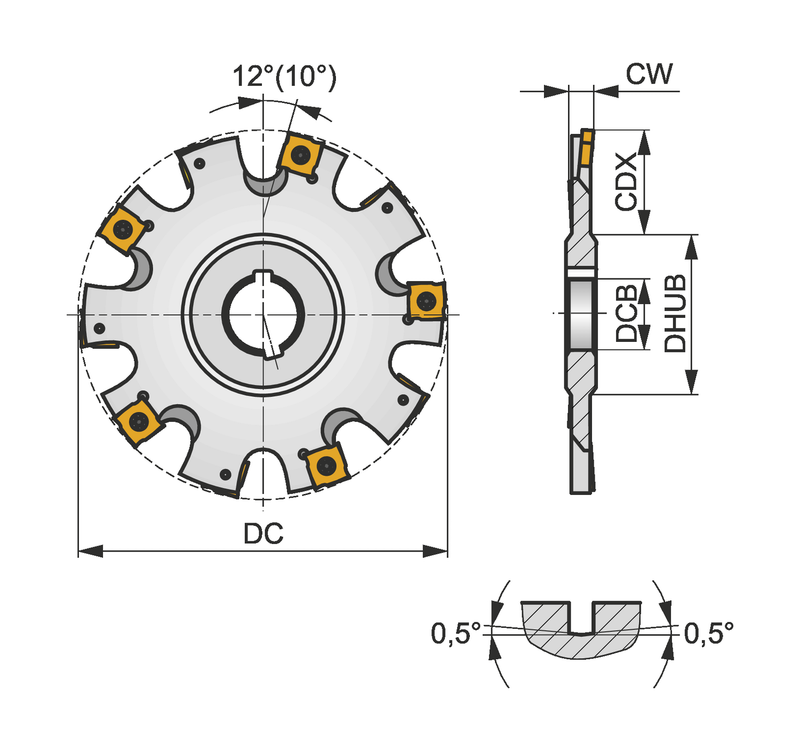

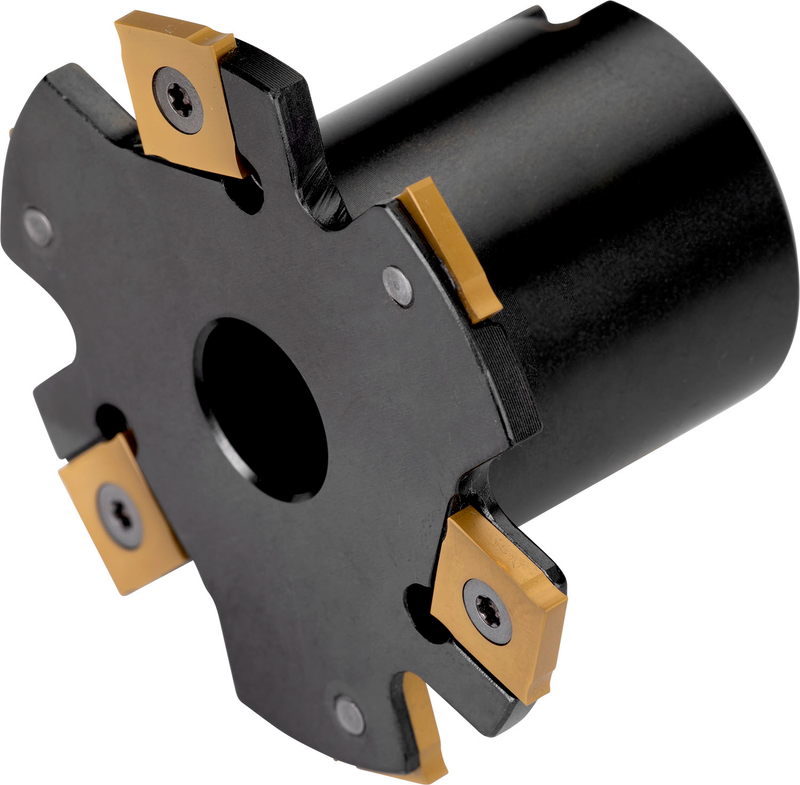

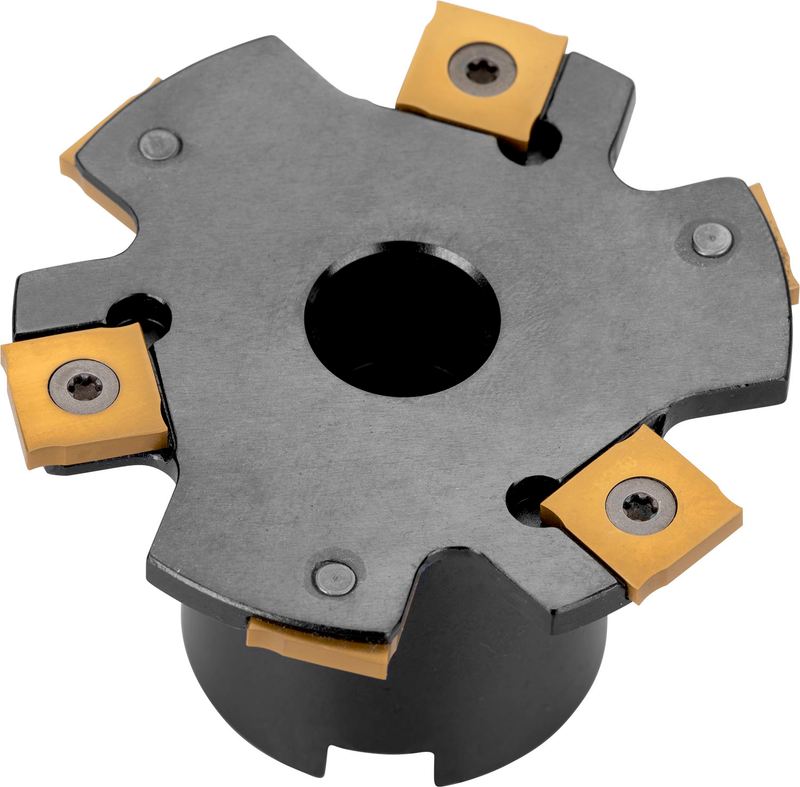

Fraise à disque à double géométrie positive utilisant 8 plaquettes double face SNHQ 1102.., diamètre de coupe de 3,000'' avec un angle d'attaque de 90° et un alésage de connexion de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'' pour le fraisage de gorges profondes avec une largeur de coupe de 0,187''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300A04R-IS90SN11N3
Product Number6789670
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.61"
Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6789670
EAN3603602979193
File Type Download
300A04R-IS90SN11N3 — 3D Model STP Download
300A04R-IS90SN11N3 — 2D Model DXF Download
300A04R-IS90SN11N3 — Line Drawing PDF Download
