300F04N-IS90SN12N5
300F04N-IS90SN12N5
300F04N-IS90SN12N5

300F04N-IS90SN12N5

UGC DOR6789674
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD

Vendu en lots de : 1

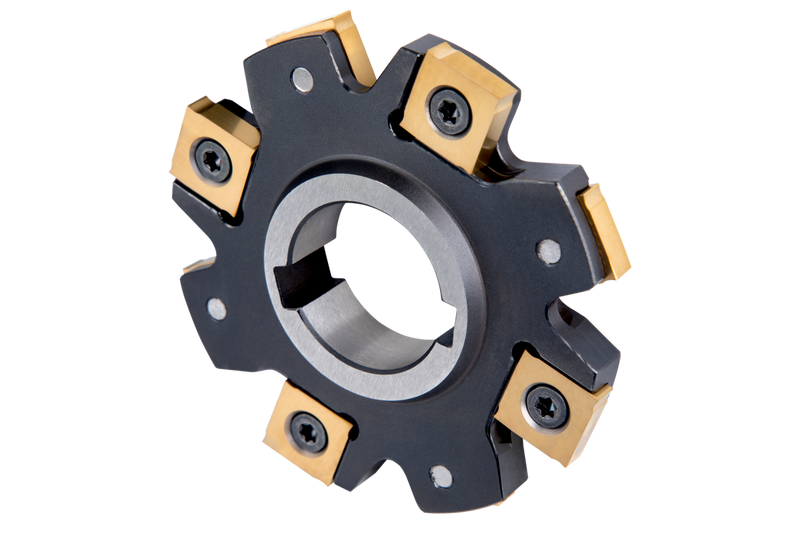

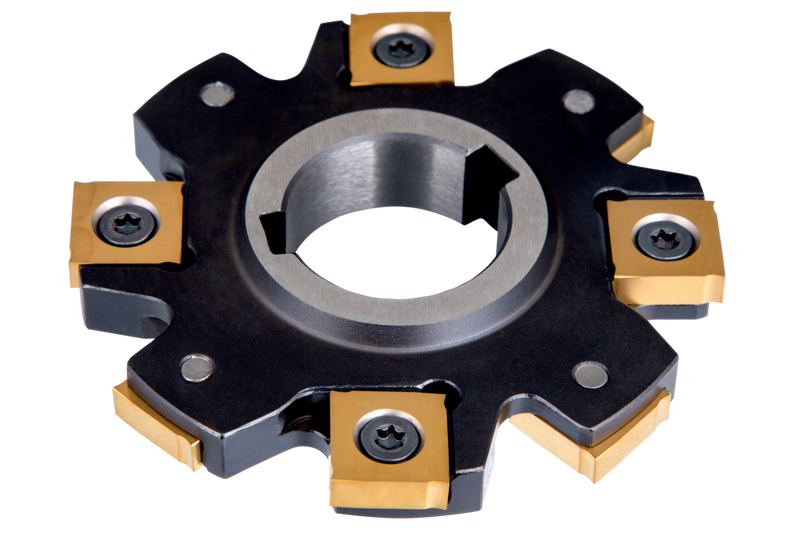

Fraise à surfacer-dresser à double géométrie négative qui utilise 4 plaquettes double face SNHQ 1102.., un diamètre de coupe de 3,000" avec un angle d'attaque de 90° et un alésage de raccordement de 1,000" selon DIN 8030, pour le fraisage de gorges profondes avec une largeur de coupe de 0,313"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300F04N-IS90SN12N5
Product Number6789674
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

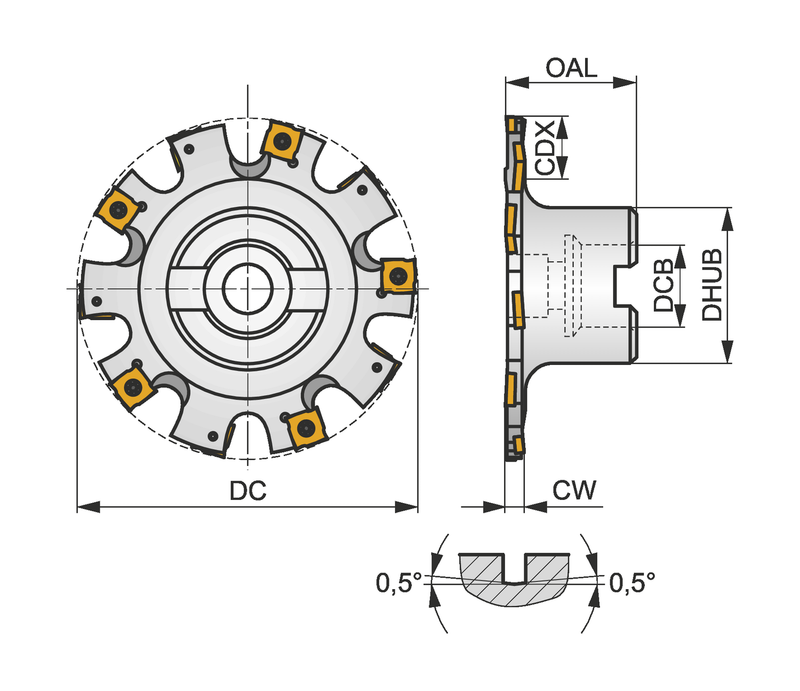

Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignS90SN
ShankFraise coquille DIN 8030 – fraise à disque
Direction of ToolNeutre
Reference Numbers
EDP Number6789674
EAN3603602979230
File Type Download
300F04N-IS90SN12N5 — 3D Model STP Download
300F04N-IS90SN12N5 — 2D Model DXF Download
300F04N-IS90SN12N5 — Line Drawing PDF Download
