400G05N-IS90SN12N4
400G05N-IS90SN12N4
400G05N-IS90SN12N4

400G05N-IS90SN12N4

UGC DOR6789676
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD

Vendu en lots de : 1

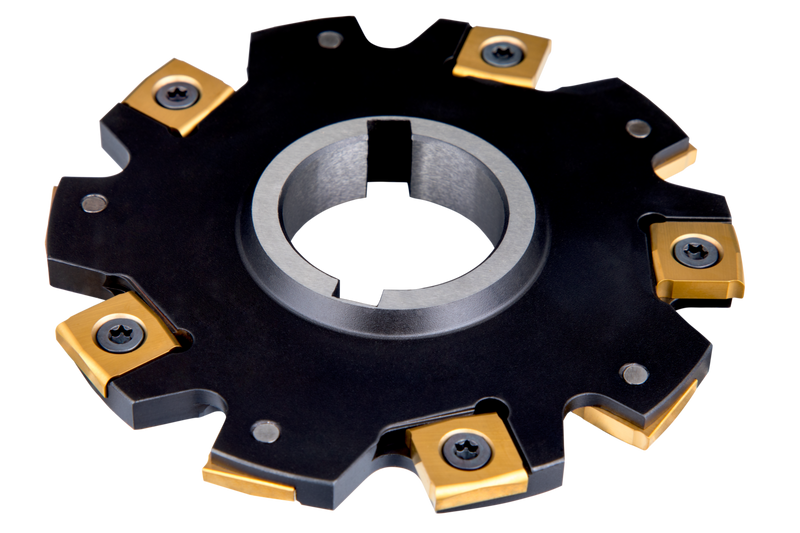

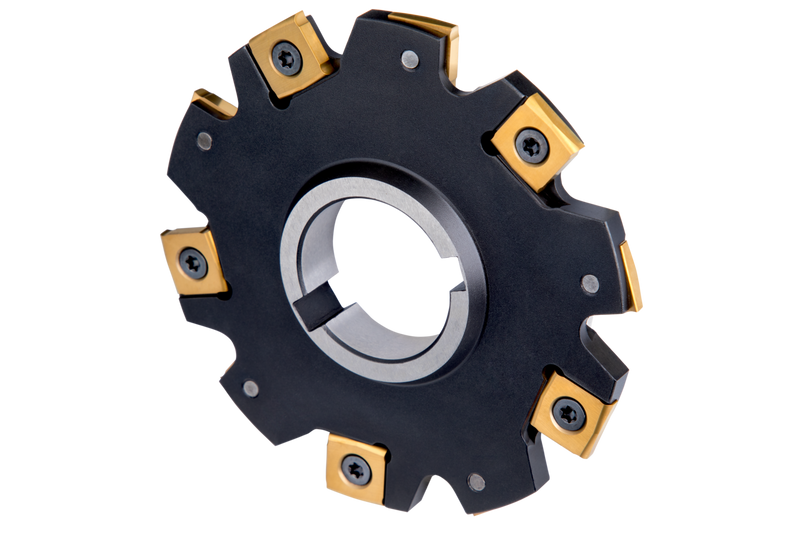

Fraise-scie à double géométrie négative utilisant 5 plaquettes double face SNHQ 1102.., diamètre de coupe 4.000'' avec angle d'attaque de 90° et alésage de connexion 1.250'' selon DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de .250''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400G05N-IS90SN12N4
Product Number6789676
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.945"

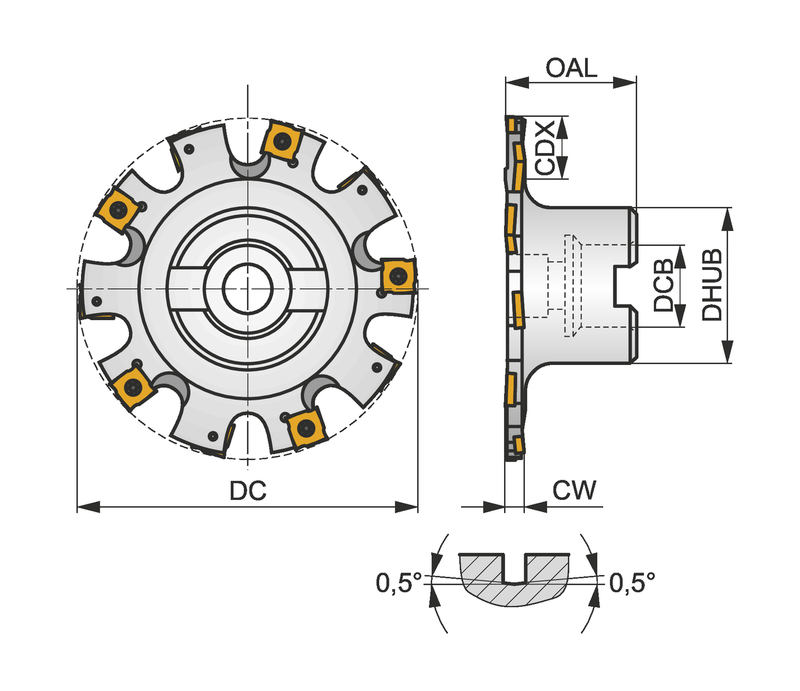

Dimensions
Cutting Diameter — in (DC)4.0"
Cutting Diameter — mm (DC)101.6 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignS90SN
ShankFraise cloche DIN 8030 – fraise disque
Direction of ToolNeutre
Reference Numbers
EDP Number6789676
EAN3603602979254
File Type Download
400G05N-IS90SN12N4 — 3D Model STP Download
400G05N-IS90SN12N4 — 2D Model DXF Download
400G05N-IS90SN12N4 — Line Drawing PDF Download
