TNGX 160608SR-M:M6330
TNGX 160608SR-M:M6330

TNGX 160608SR-M:M6330

UGC DOR8019797
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.97 CAD - $19.97 CAD
$19.97 CAD
$19.97 CAD - $19.97 CAD
$19.97 CAD

Vendu en lots de : 10

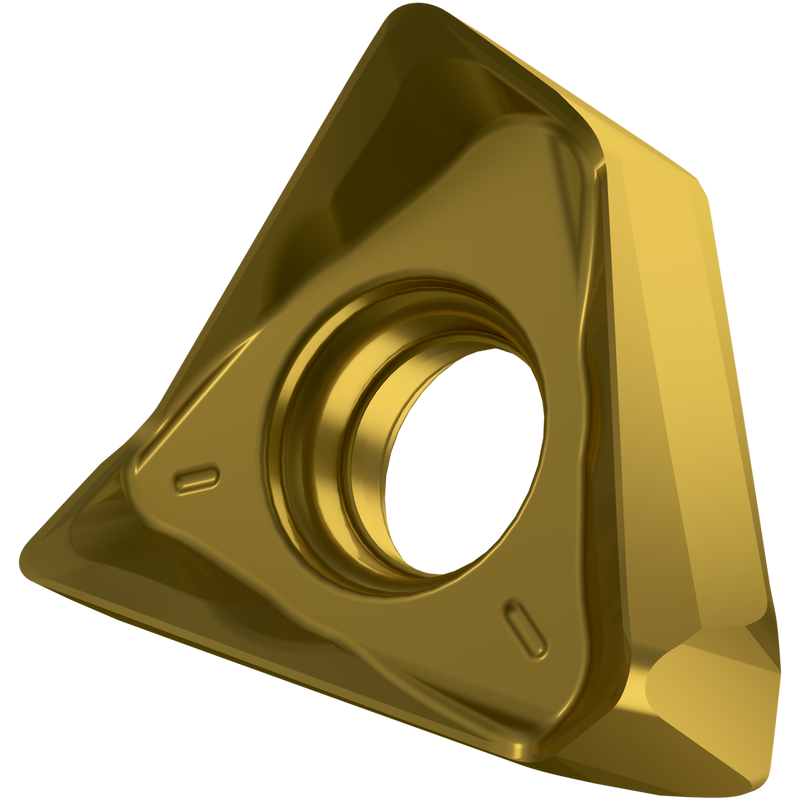

Plaquette de fraisage double face TNGX 1606, triangulaire pour une profondeur de coupe maximale de 10,0 mm, avec rayon de coin de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-G et géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M6330 dans la plage de nuances ISO P20 -P35 pour l'usinage de l'acier avec fraises à épaulement STN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 160608SR-M:M6330
GradeM6330
Chipbreaker (CBMD)M
Product Number8019797
Product FamilyTNGX 16

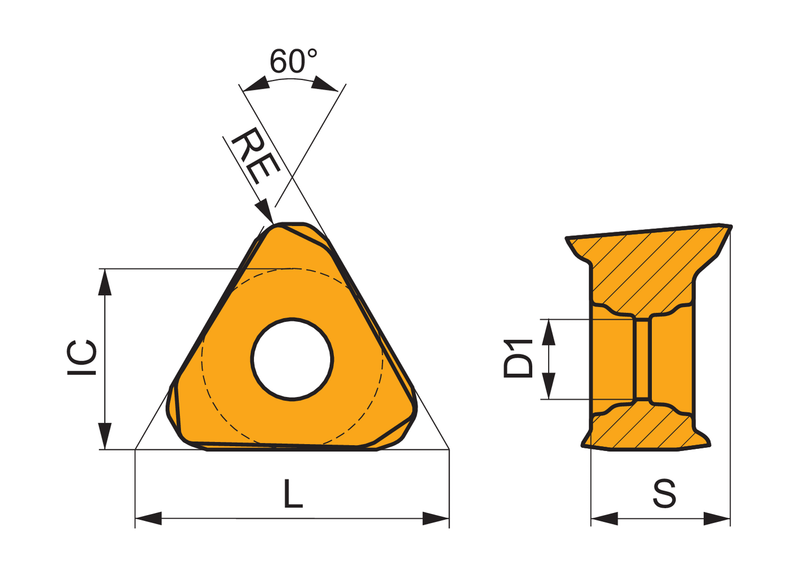

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.259"
Insert Thickness — mm (S)6.58 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8019797
EAN3603603842694
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
TNGX 160608SR-M:M6330 — Line Drawing PDF Download
