TNGX 160604FR-FA:M0315
TNGX 160604FR-FA:M0315

TNGX 160604FR-FA:M0315

UGC DOR8020825
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.81 CAD - $21.81 CAD
$21.81 CAD
$21.81 CAD - $21.81 CAD
$21.81 CAD

Vendu en lots de : 10

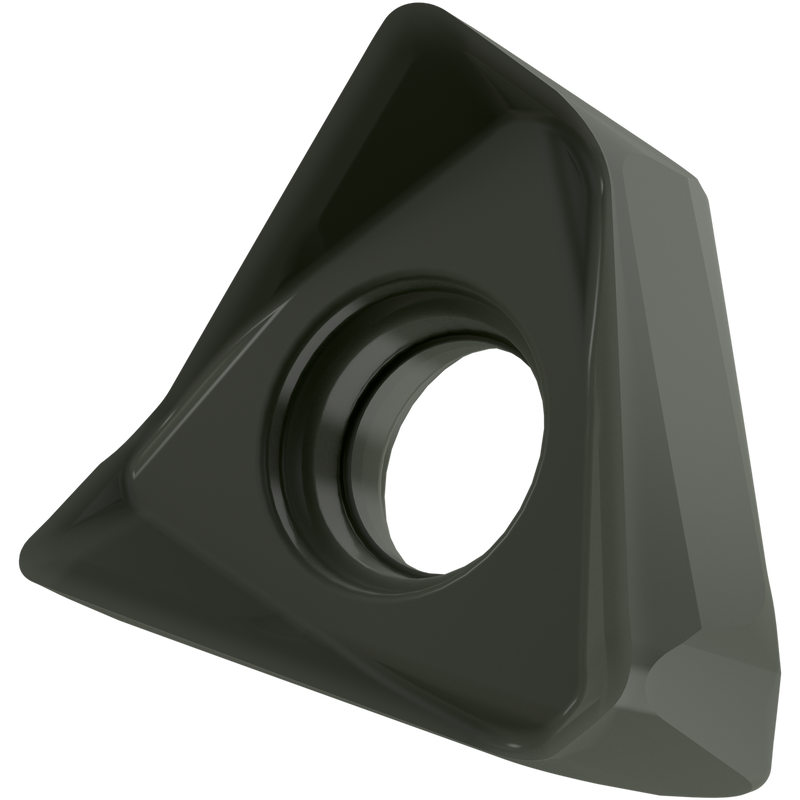

Plaquette de fraisage double face TNGX 1606, triangulaire pour une profondeur de coupe maximale de 10,0mm, avec un rayon de bec de 0,4mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie FA avec des arêtes vives, carbure WC-Co à grains fins revêtu PVD M0315 dans la gamme de classes ISO N05-N25 pour l'usinage des métaux non ferreux avec des fraises à dresser STN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 160604FR-FA:M0315
GradeM0315
Chipbreaker (CBMD)FA
Product Number8020825
Product FamilyTNGX 16-FA

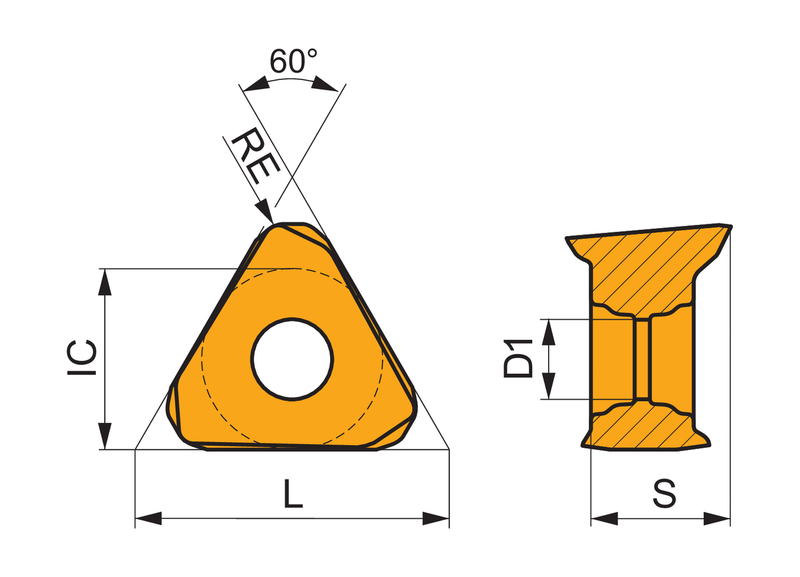

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.259"
Insert Thickness — mm (S)6.58 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8020825
EAN3603603844414
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
TNGX 160604FR-FA:M0315 — Line Drawing PDF Download
