TNGX 160604FR-FA:HF7
TNGX 160604FR-FA:HF7

TNGX 160604FR-FA:HF7

UGC DOR8020826
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.21 CAD - $21.21 CAD
$21.21 CAD
$21.21 CAD - $21.21 CAD
$21.21 CAD

Vendu en lots de : 10

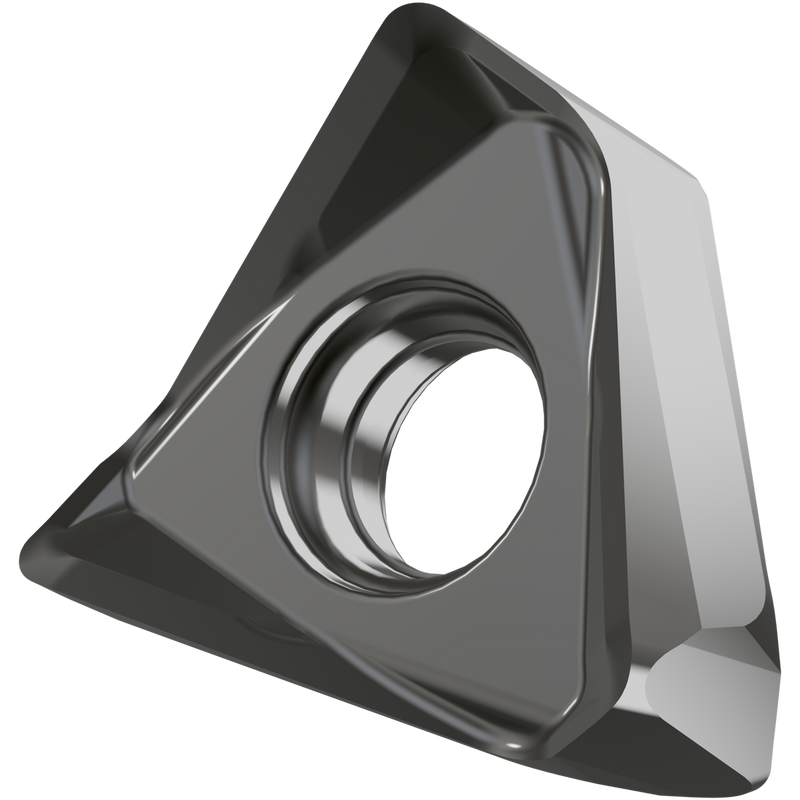

Plaquette de fraisage double face TNGX 1606, triangulaire pour une profondeur de coupe maximale de 10,0mm, avec un rayon de bec de 0,4mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie FA à arêtes vives, en carbure WC-Co à grains fins non revêtu HF7 de classe ISO N10-N25 pour l'usinage de métaux non ferreux avec des fraises à surfacer-dresser STN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 160604FR-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number8020826
Product FamilyTNGX 16-FA

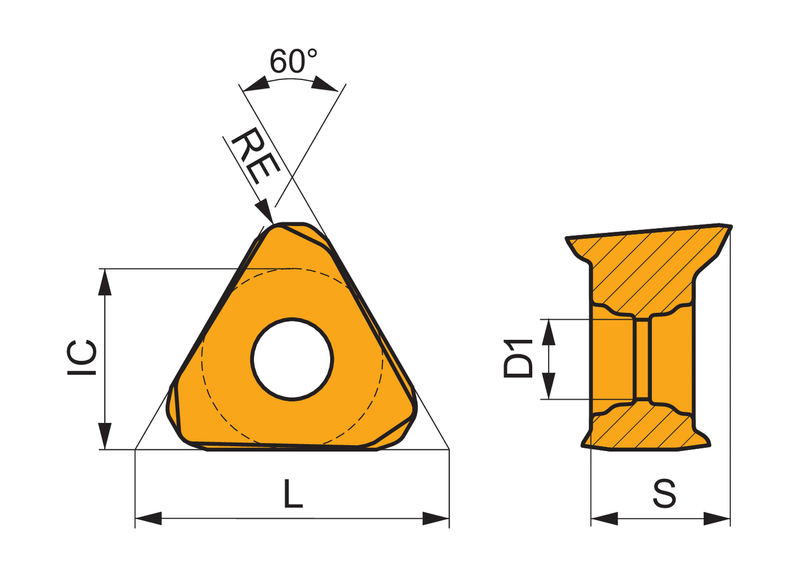

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - triangulaire 60° angle d'ouverture
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.259"
Insert Thickness — mm (S)6.58 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8020826
EAN3603603844421
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
TNGX 160604FR-FA:HF7 — Line Drawing PDF Download
