250A06R-ISMOSO12-C
250A06R-ISMOSO12-C
250A06R-ISMOSO12-C

250A06R-ISMOSO12-C

UGC DOR8551881
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$821.00 CAD - $821.00 CAD
$821.00 CAD
$821.00 CAD - $821.00 CAD
$821.00 CAD

Vendu en lots de : 1

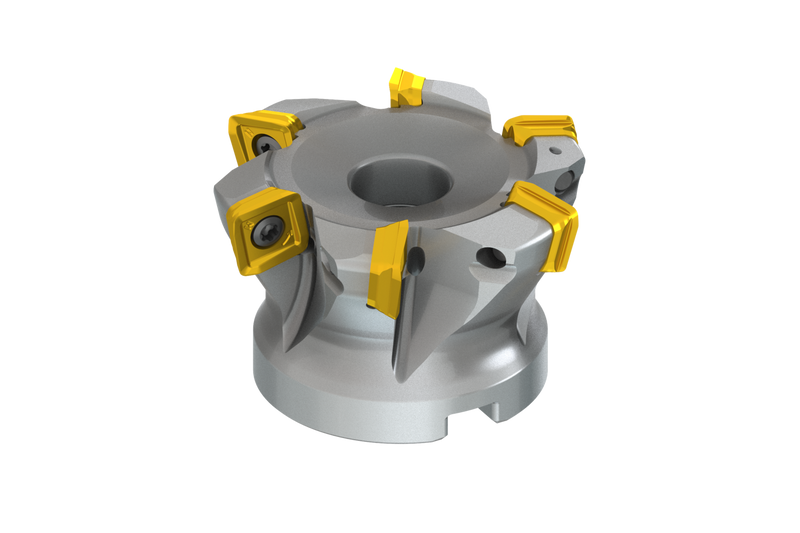

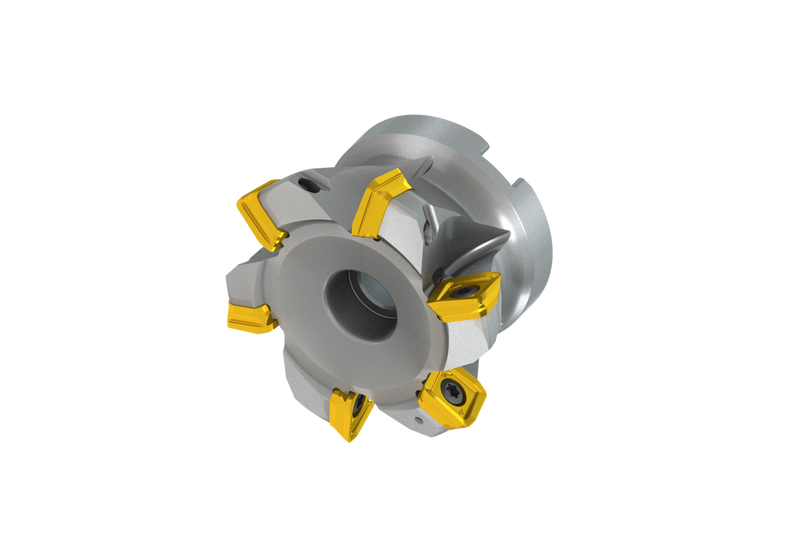

Fraise à grande avance, très polyvalente, de 12˚, utilisant des plaquettes simples SO.. de style 12 avec APMX de 1,9 mm, diamètre de coupe de 1,803 pouce avec un angle d'approche de 12° et un alésage de connexion de 0,75 pouce selon DIN 8030-C, longueur fonctionnelle de 1,575 pouce, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage en ramping, le fraisage hélicoïdal, le fraisage par plongées successives et le fraisage en plongée progressive.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-ISMOSO12-C
Product Number8551881
Product FamilyISSO12
Insert Geometry
Insert DesignSOHT 12

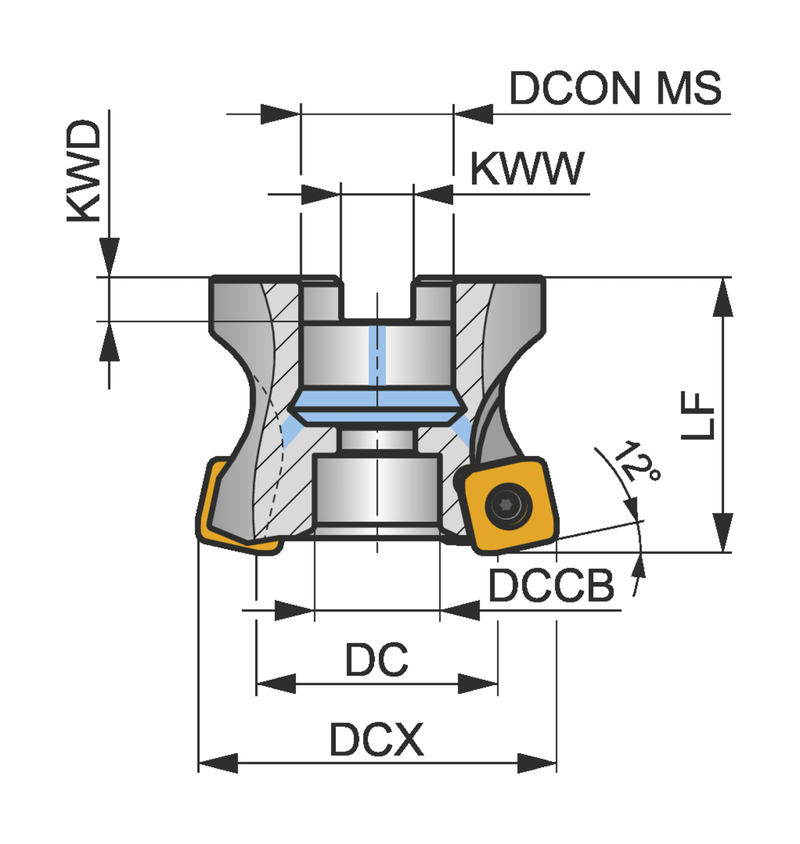

Dimensions
Cutting Diameter — in (DC)1.803"
Cutting Diameter — mm (DC)45.8 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSO12
ShankFraise à surfacer-planer DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8551881
EAN3603604263344
File Type Download
250A06R-ISMOSO12-C — 3D Model STP Download
250A06R-ISMOSO12-C — 2D Model DXF Download
250A06R-ISMOSO12-C — Line Drawing PDF Download
