40A03R-S45OD05-C
40A03R-S45OD05-C
40A03R-S45OD05-C

40A03R-S45OD05-C

UGC DOR7342880
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$636.00 CAD - $636.00 CAD
$636.00 CAD
$636.00 CAD - $636.00 CAD
$636.00 CAD

Vendu en lots de : 1

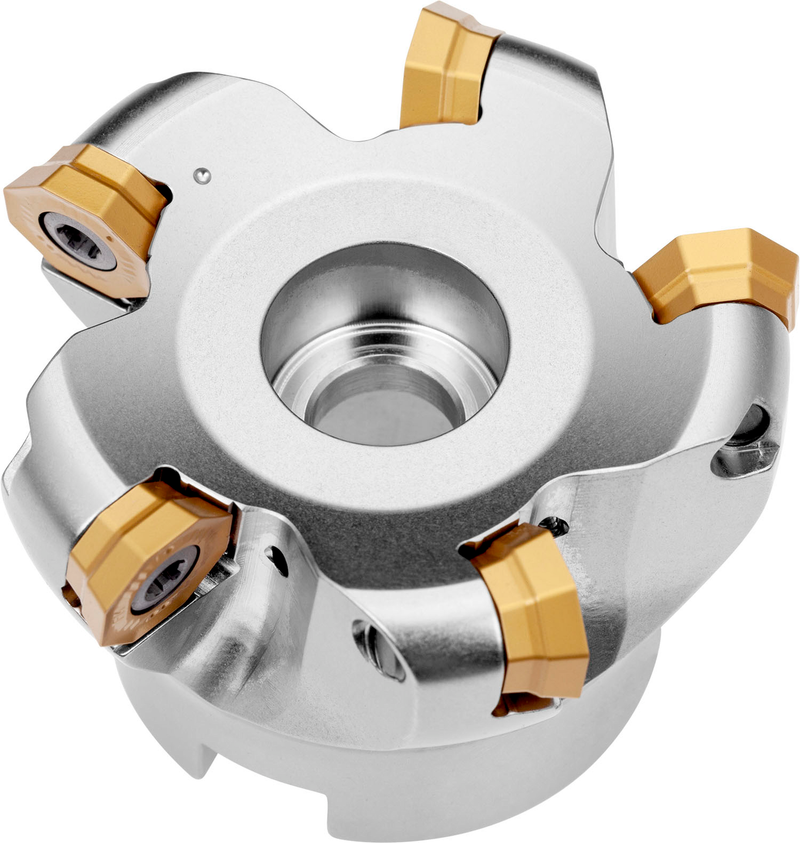

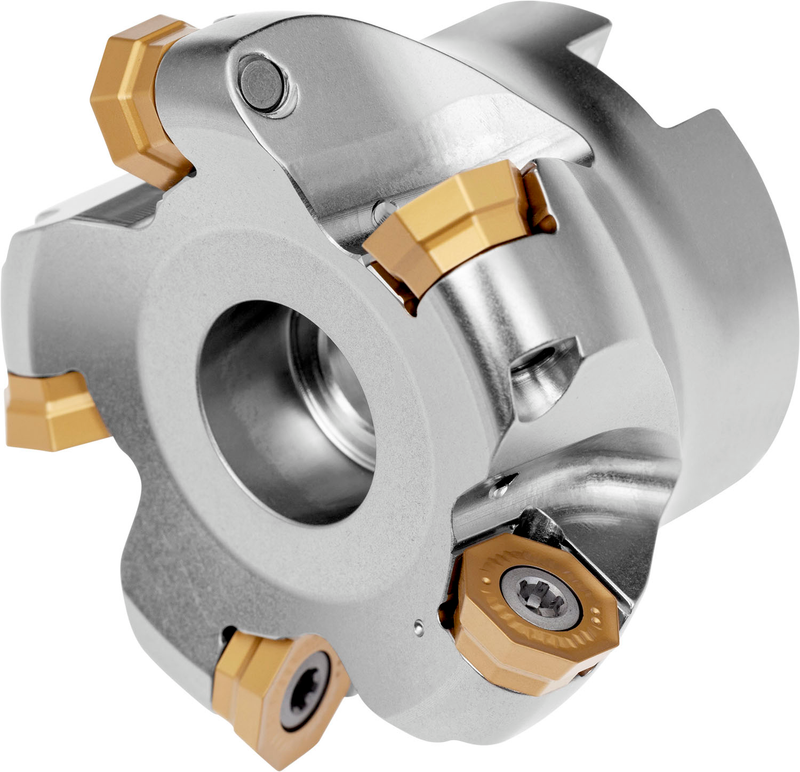

Fraise à copier pour surfaçage à géométrie positive/négative utilisant 3 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 32,7mm avec un angle d'attaque de 45 / 90° et un alésage de connexion de 16mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central pour le surfaçage, la copie, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée, le fraisage en plongée progressif et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A03R-S45OD05-C
Product Number7342880
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

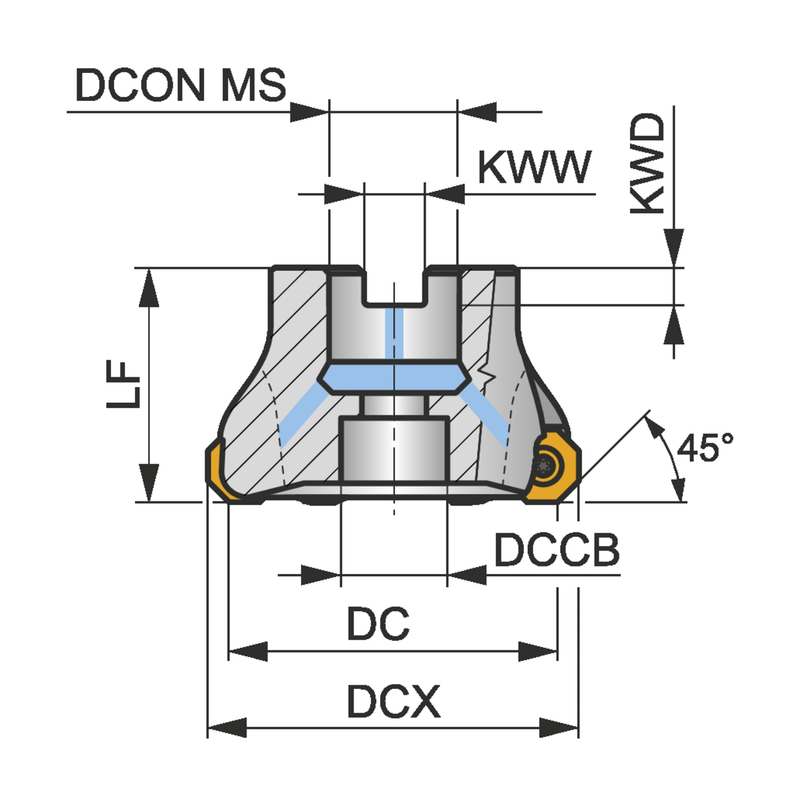

Dimensions
Cutting Diameter — in (DC)1.287"
Cutting Diameter — mm (DC)32.7 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSOD05
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342880
EAN3603603288010
File Type Download
40A03R-S45OD05-C — 3D Model STP Download
40A03R-S45OD05-C — 2D Model DXF Download
40A03R-S45OD05-C — Line Drawing PDF Download
