100A07R-S45OD05-C
100A07R-S45OD05-C
100A07R-S45OD05-C

100A07R-S45OD05-C

UGC DOR7342887
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD

Vendu en lots de : 1

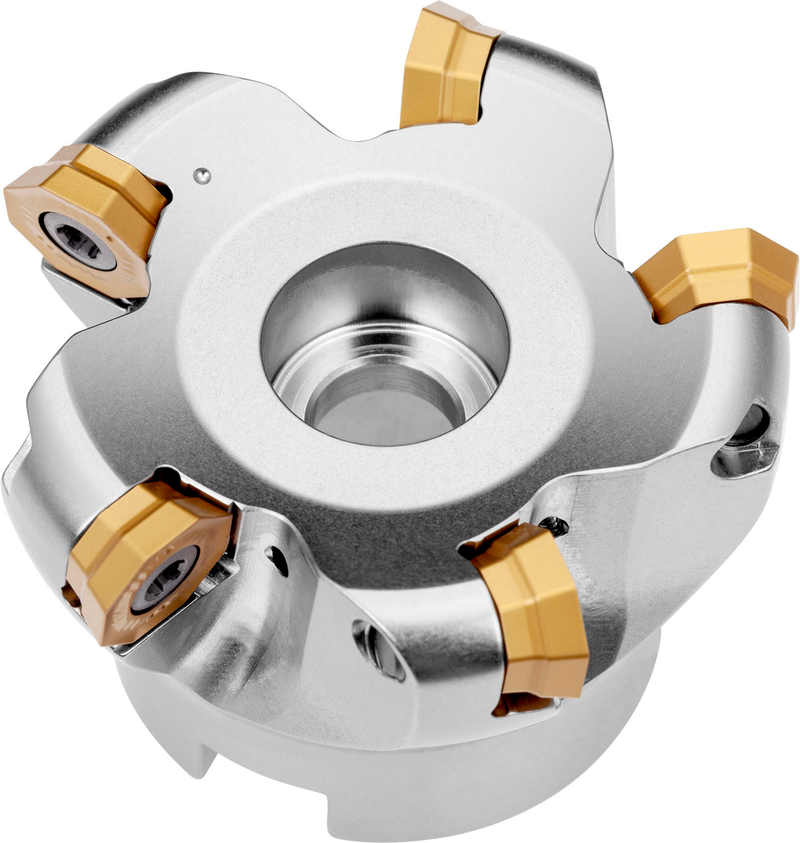

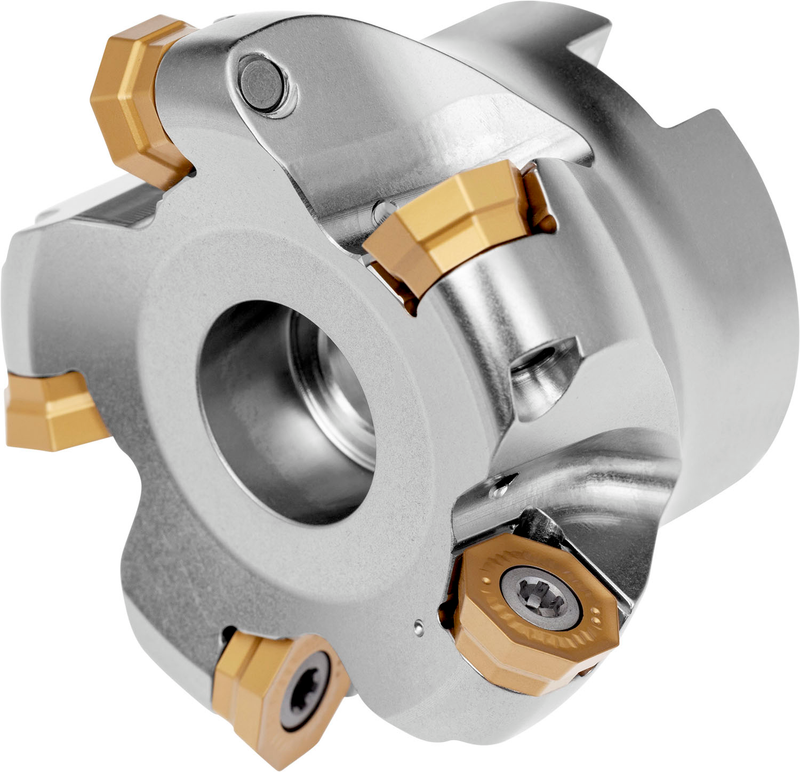

Fraise à surfacer à copier avec géométrie positive/négative qui utilise 7 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 92,6 mm avec angle d'approche 45 / 90° et alésage de connexion 32 mm selon DIN 8030-A, longueur de dépassement 50 mm, arrosage interne et pas différentiel pour le surfaçage, le fraisage à copier, le fraisage d'épaulement peu profond, le fraisage de rainure peu profonde, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A07R-S45OD05-C
Product Number7342887
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

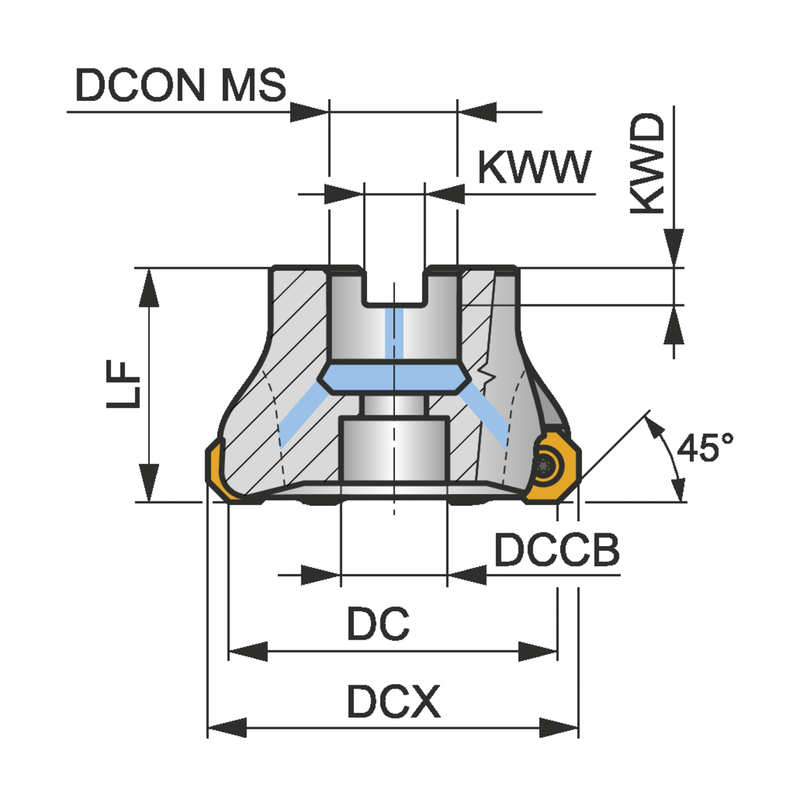

Dimensions
Cutting Diameter — in (DC)3.646"
Cutting Diameter — mm (DC)92.6 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSOD05
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342887
EAN3603603288089
File Type Download
100A07R-S45OD05-C — 3D Model STP Download
100A07R-S45OD05-C — 2D Model DXF Download
100A07R-S45OD05-C — Line Drawing PDF Download
