250A05R-IS45OD05-C
250A05R-IS45OD05-C
250A05R-IS45OD05-C

250A05R-IS45OD05-C

UGC DOR7546799
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$816.00 CAD - $816.00 CAD
$816.00 CAD
$816.00 CAD - $816.00 CAD
$816.00 CAD

Vendu en lots de : 1

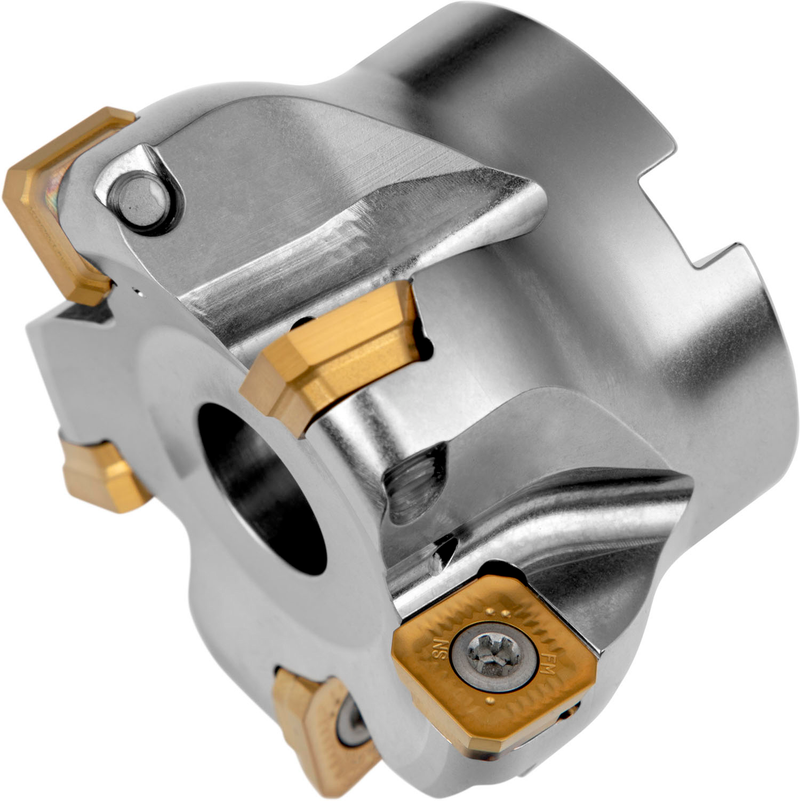

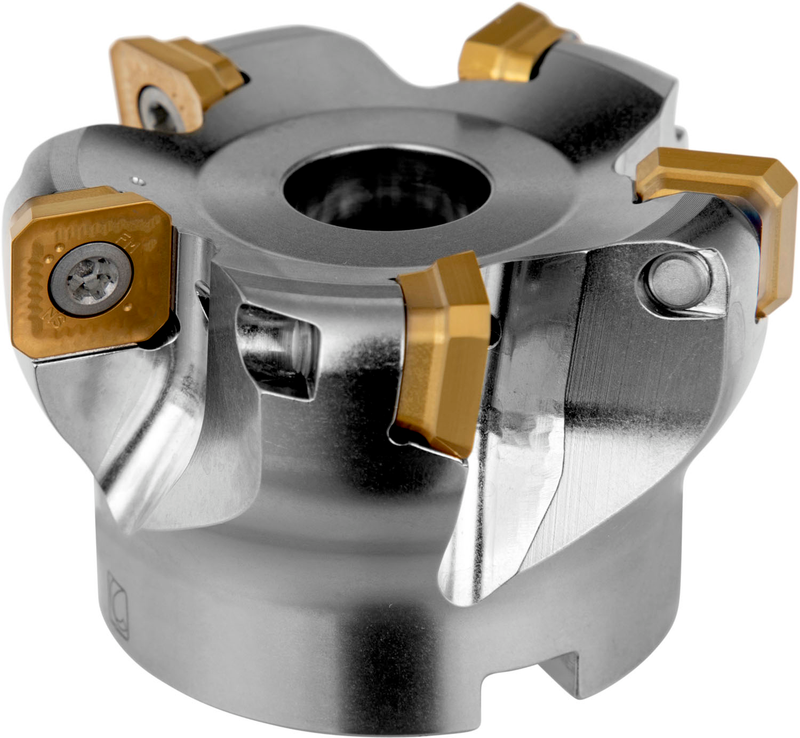

Fraise à copier avec géométrie positive/négative utilisant 5 plaquettes simple-face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe de 2,209 à 2,500'' maximum avec un angle d'attaque de 45 / 90° et un alésage de connexion de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage interne et pas différentiel pour le surfaçage, la copie, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée, le fraisage progressif en plongée et le chanfreinage avec une profondeur de coupe maximale de 0,118 (0,236/0,394)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A05R-IS45OD05-C
Product Number7546799
Product FamilyISOD05

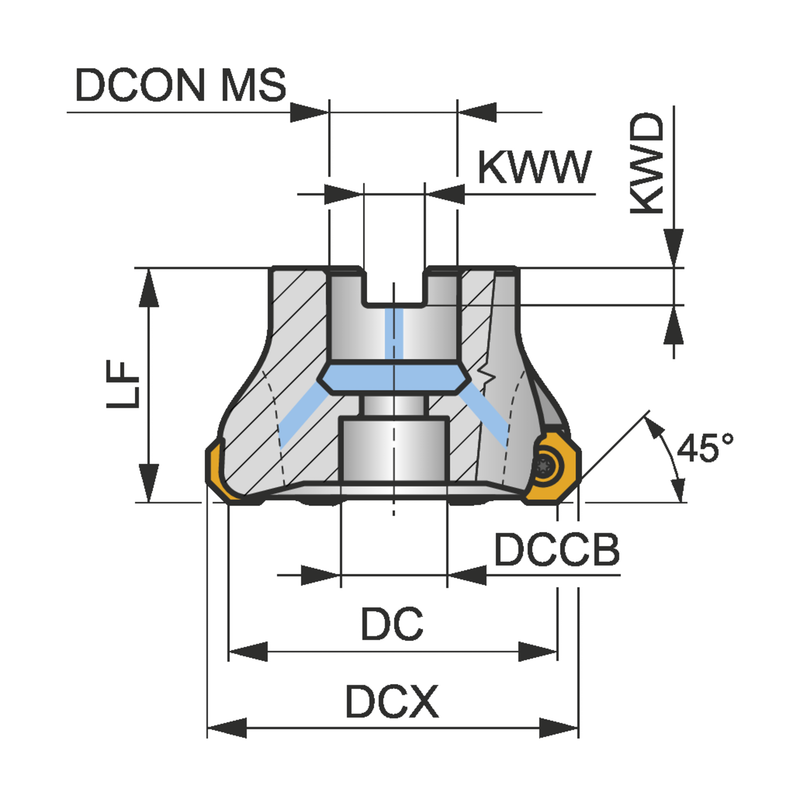

Dimensions
Cutting Diameter — in (DC)2.209"
Cutting Diameter — mm (DC)56.1 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSOD05
ShankFraise-disque DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7546799
EAN3603603488038
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
250A05R-IS45OD05-C — 3D Model STP Download
250A05R-IS45OD05-C — 2D Model DXF Download
250A05R-IS45OD05-C — Line Drawing PDF Download
