ODMT 0504ZZN:M8340
ODMT 0504ZZN:M8340

ODMT 0504ZZN:M8340

UGC DOR6800836
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.96 CAD - $20.96 CAD
$20.96 CAD
$20.96 CAD - $20.96 CAD
$20.96 CAD

Vendu en lots de : 10

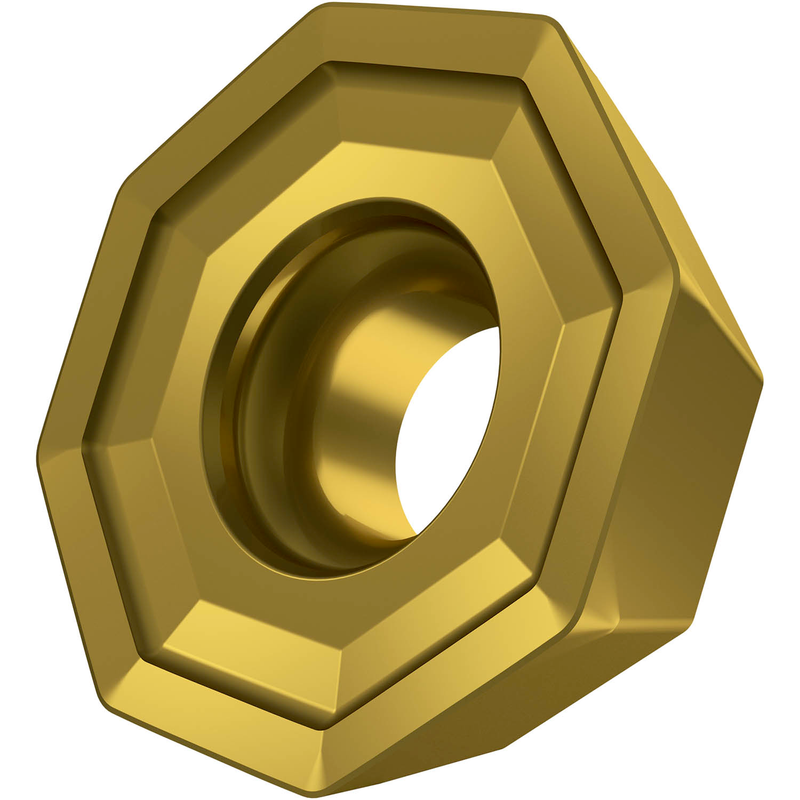

Plaquette de fraisage simple face ODMT 0504 avec brise-copeaux, octogonale pour une profondeur de coupe maximale de 2,5 mm, avec un rayon d'angle de ", une précision de positionnement selon la classe de tolérance ISO-M, carbure WC-Co à grains fins revêtu PVD M8340 dans la plage de nuances ISO P25-P50 pour l'usinage de l'acier avec les fraises à surfacer SOD05D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODMT 0504ZZN:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number6800836
Product FamilyODMT 05

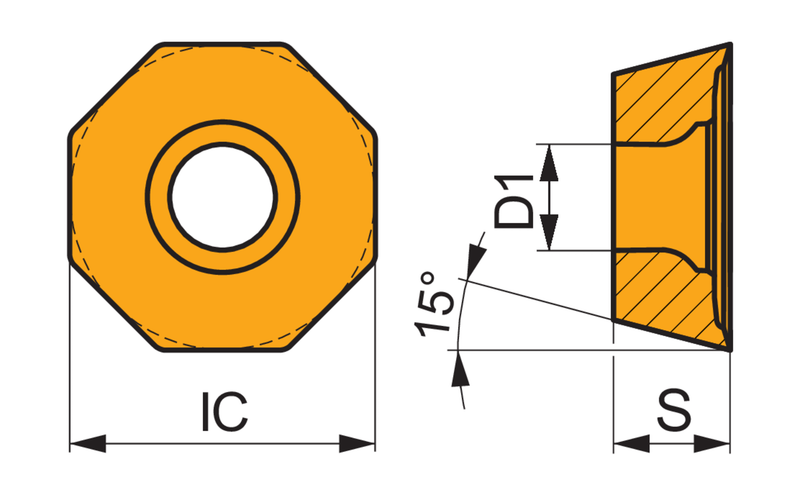

Insert Geometry
Insert DesignODMT
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6800836
EAN3603602993670
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
ODMT 0504ZZN:M8340 — Line Drawing PDF Download
