100A06R-S45OE06Z-C
100A06R-S45OE06Z-C
100A06R-S45OE06Z-C

100A06R-S45OE06Z-C

UGC DOR6922504
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,195.00 CAD - $1,195.00 CAD
$1,195.00 CAD
$1,195.00 CAD - $1,195.00 CAD
$1,195.00 CAD

Vendu en lots de : 1

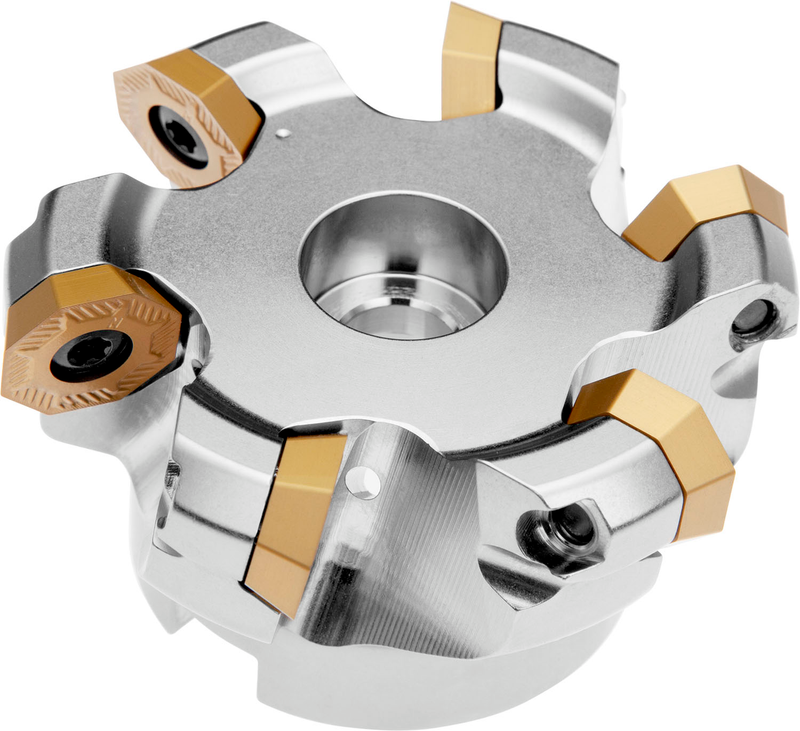

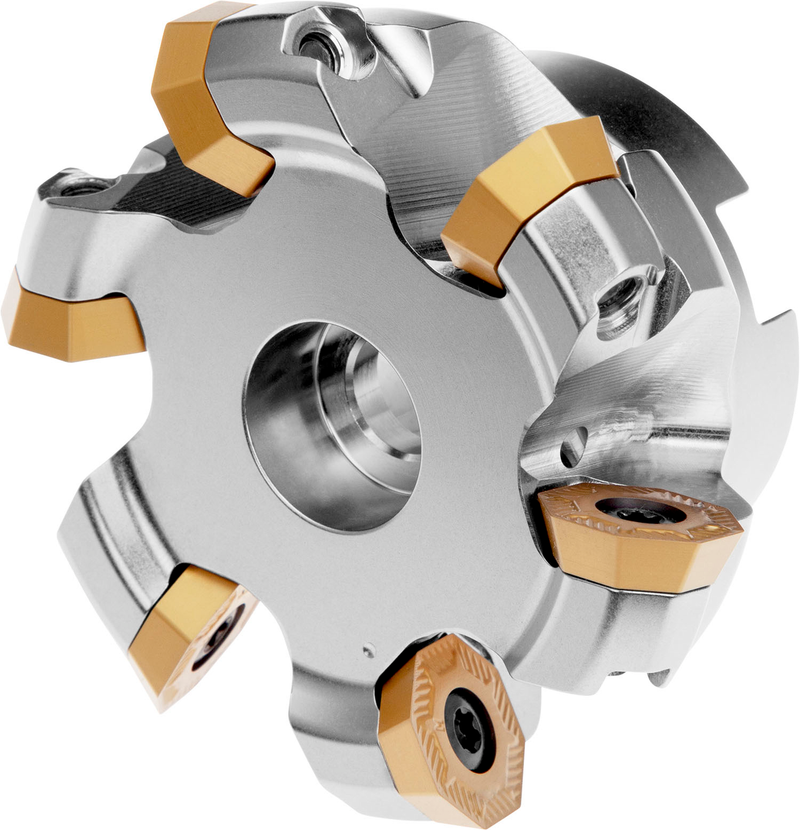

Fraise à surfacer avec géométrie double positive qui utilise 6 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 100 à 110,2 mm maximum avec un angle d'attaque de 43° et un alésage de raccordement de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 3,3 (9,9) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A06R-S45OE06Z-C
Product Number6922504
Product FamilySOE06Z
Insert Geometry
Depth of Cut Max — mm (APMX)3.3 mm

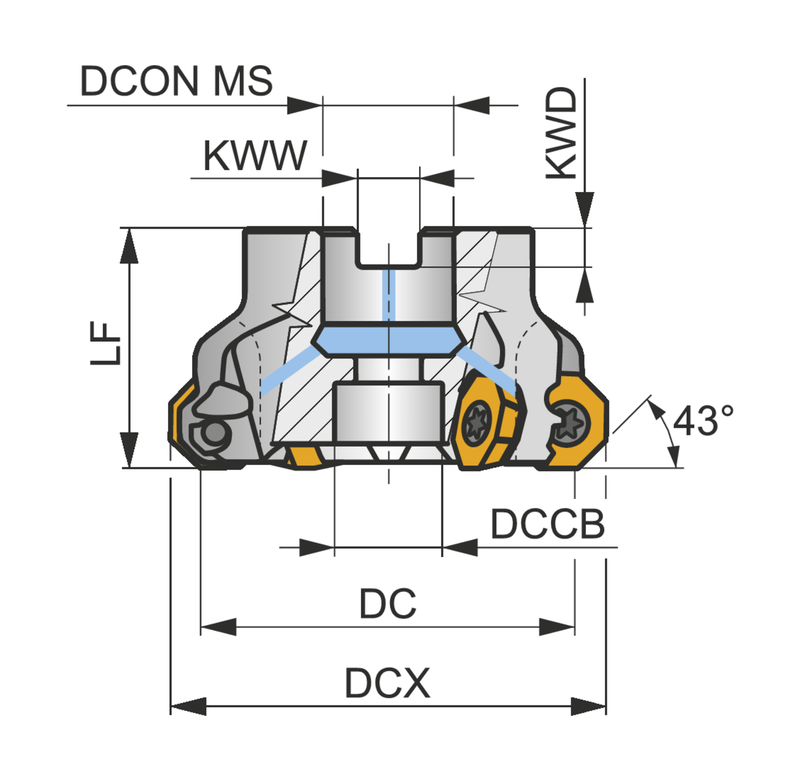

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSOE06Z
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6922504
EAN3603603072268
File Type Download
100A06R-S45OE06Z-C — 3D Model STP Download
100A06R-S45OE06Z-C — 2D Model DXF Download
100A06R-S45OE06Z-C — Line Drawing PDF Download
