63A05R-S19PD09-C
63A05R-S19PD09-C
63A05R-S19PD09-C

63A05R-S19PD09-C

UGC DOR6761259
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$895.00 CAD - $895.00 CAD
$895.00 CAD
$895.00 CAD - $895.00 CAD
$895.00 CAD

Vendu en lots de : 1

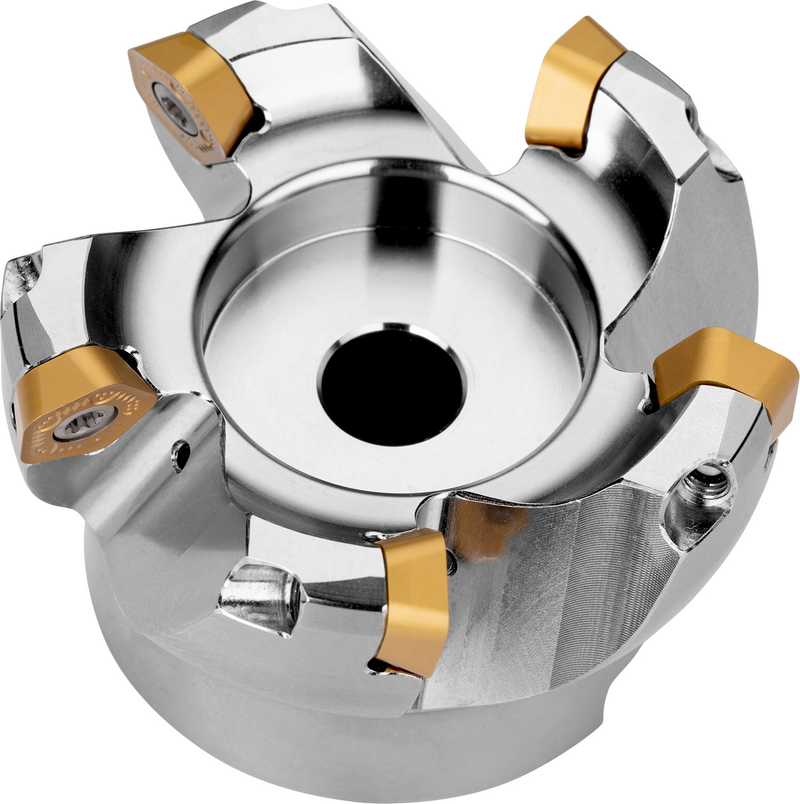

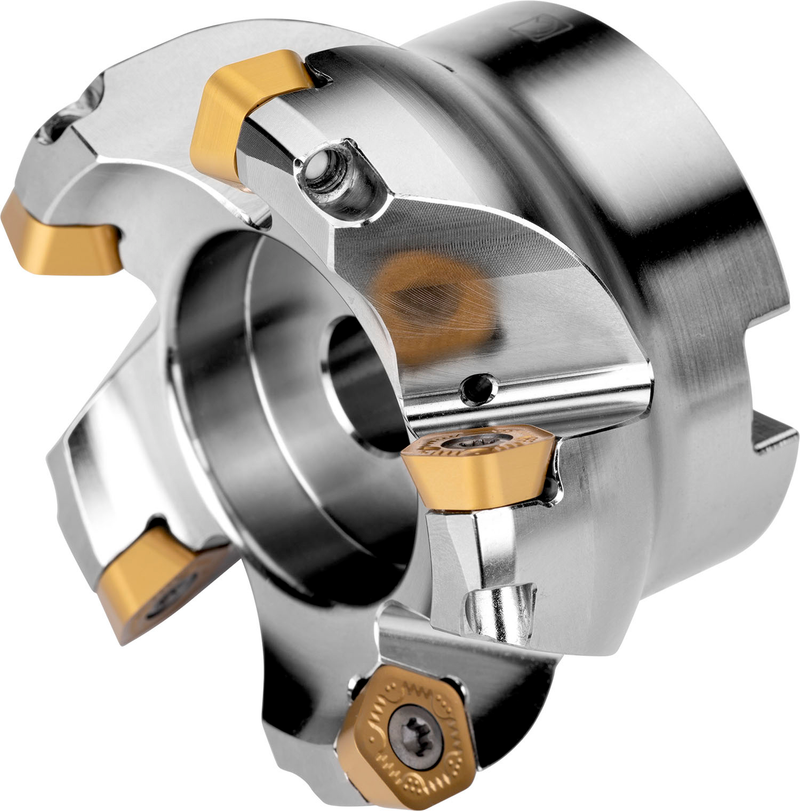

Fraise grande avance avec géométrie positive/négative qui utilise 5 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 63mm avec angle d'attaque 19° et alésage de connexion 22mm selon DIN 8030-A, longueur de porte-à-faux 40mm, arrosage central pour le surfaçage avec une profondeur de coupe maximale de 2,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A05R-S19PD09-C
Product Number6761259
Product FamilySPD09
Insert Geometry
Depth of Cut Max — mm (APMX)2.0 mm
Dimensions
Cutting Diameter — in (DC)1.898"
Cutting Diameter — mm (DC)48.2 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPD09
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761259
EAN3603602966056
File Type Download
63A05R-S19PD09-C — 3D Model STP Download
63A05R-S19PD09-C — 2D Model DXF Download
63A05R-S19PD09-C — Line Drawing PDF Download
