80A05R-SMORC12-C
80A05R-SMORC12-C
80A05R-SMORC12-C

80A05R-SMORC12-C

UGC DOR7155898
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$650.00 CAD - $650.00 CAD
$650.00 CAD
$650.00 CAD - $650.00 CAD
$650.00 CAD

Vendu en lots de : 1

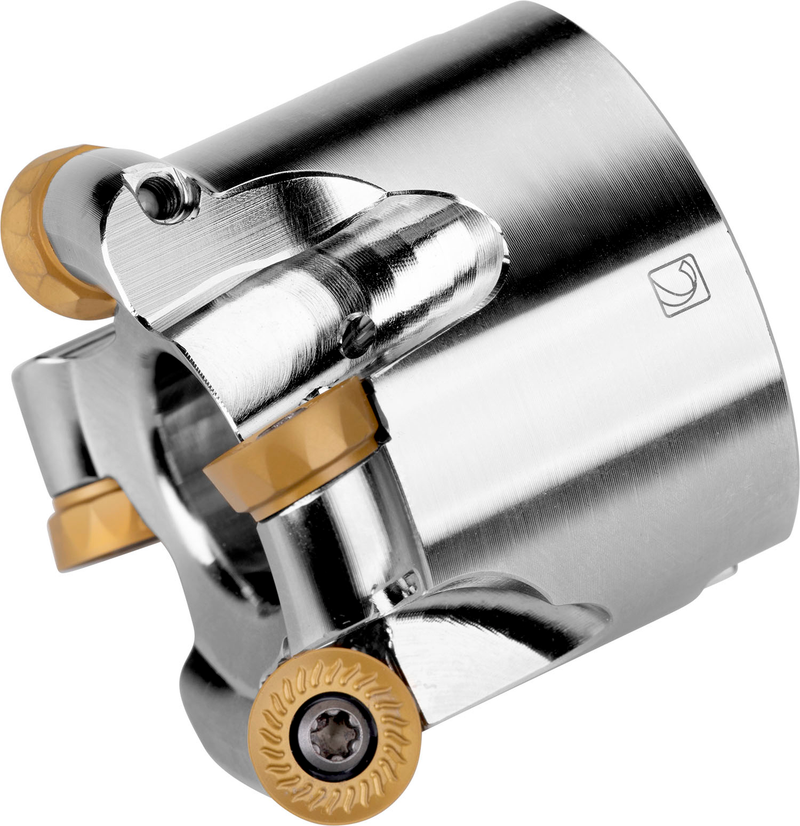

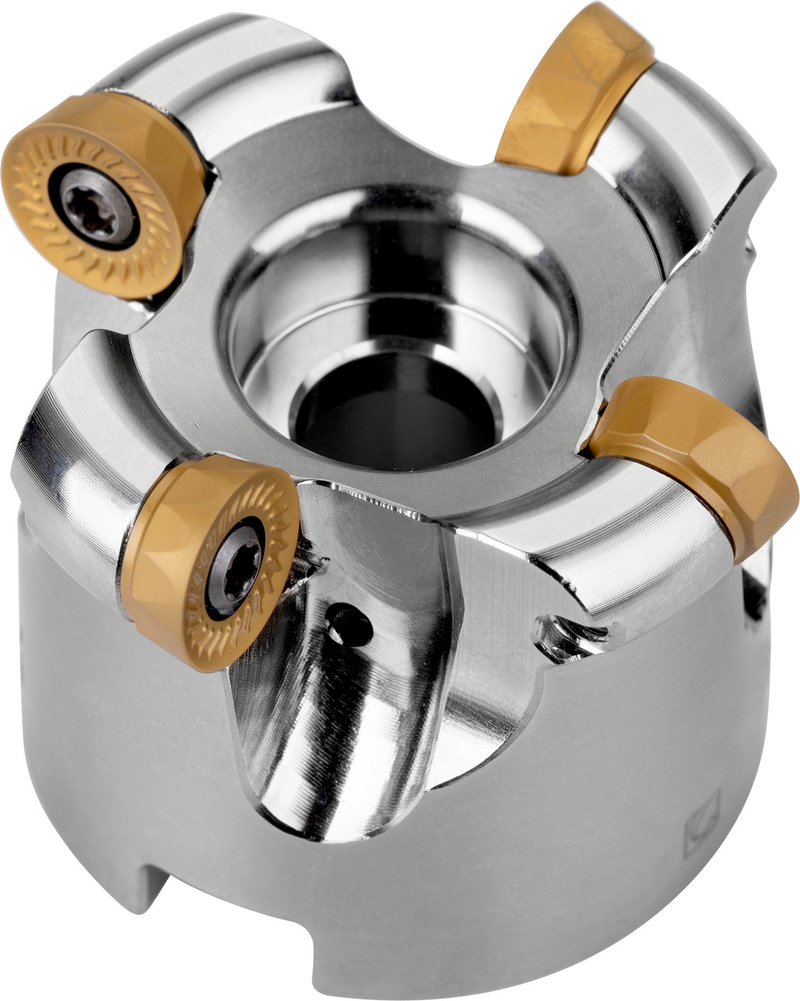

Fraise à surfacer à copier à géométrie double négative qui utilise 5 plaquettes RCMT 1204MO.. à un seul côté, diamètre de coupe de 80 mm avec alésage de raccordement de 27 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage par l'intérieur pour le surfaçage, la copie, le rampement, le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 6,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A05R-SMORC12-C
Product Number7155898
Product FamilySRC12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

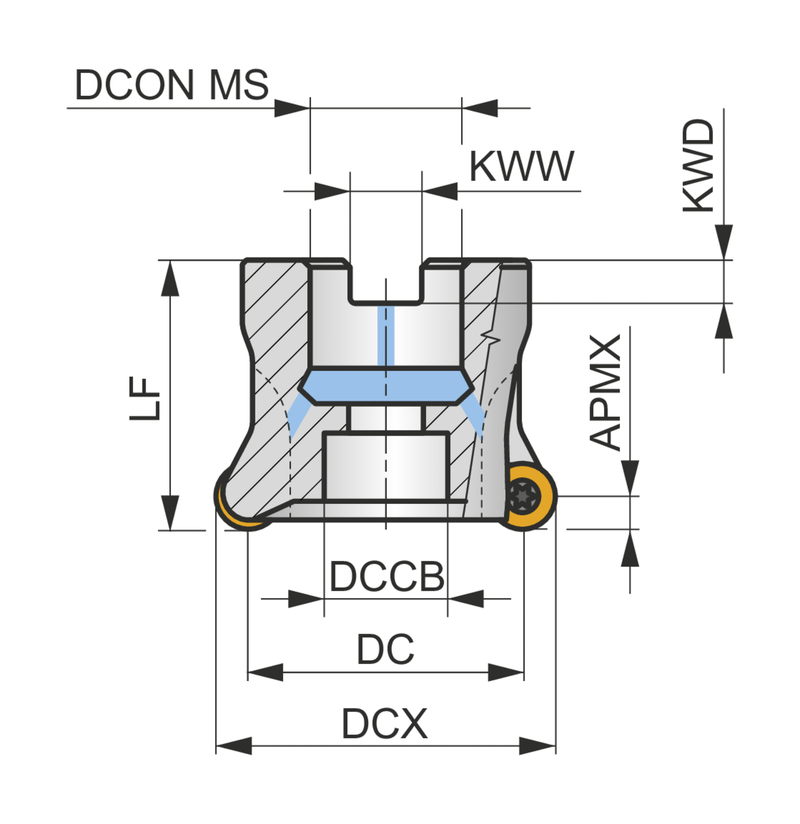

Dimensions
Cutting Diameter — in (DC)2.677"
Cutting Diameter — mm (DC)68.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRC12
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155898
EAN3603603162044
File Type Download
80A05R-SMORC12-C — 3D Model STP Download
80A05R-SMORC12-C — 2D Model DXF Download
80A05R-SMORC12-C — Line Drawing PDF Download
