100A06R-SMORC16-C
100A06R-SMORC16-C
100A06R-SMORC16-C

100A06R-SMORC16-C

UGC DOR7155922
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$940.00 CAD - $940.00 CAD
$940.00 CAD
$940.00 CAD - $940.00 CAD
$940.00 CAD

Vendu en lots de : 1

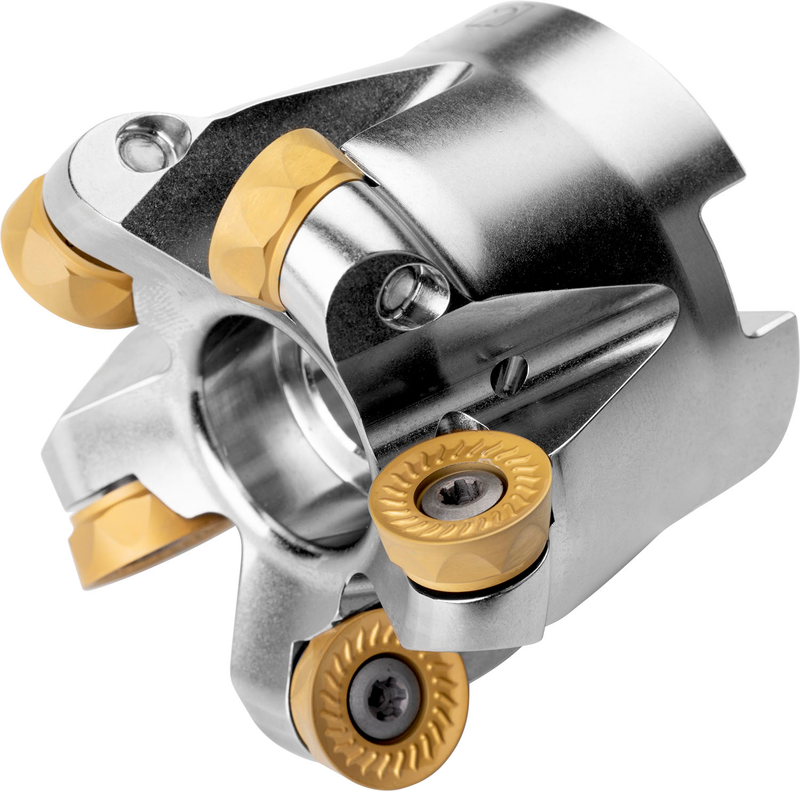

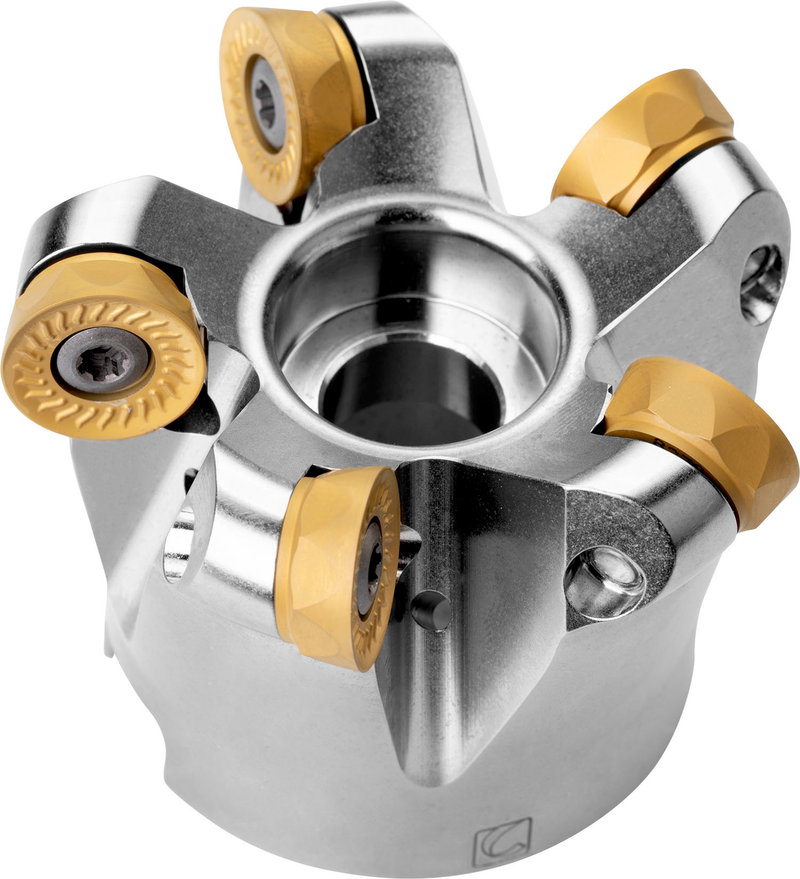

Fraise à copier à surfacer avec double géométrie négative utilisant 6 plaquettes RCMT 1606MO... simple face, diamètre de coupe 100mm avec alésage de raccordement 32mm selon DIN 8030-A, longueur de dépassement 50mm, arrosage central pour surfaçage, fraisage à copier, ramping, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 8.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A06R-SMORC16-C
Product Number7155922
Product FamilySRC16
Insert Geometry
Depth of Cut Max — mm (APMX)2.3 mm

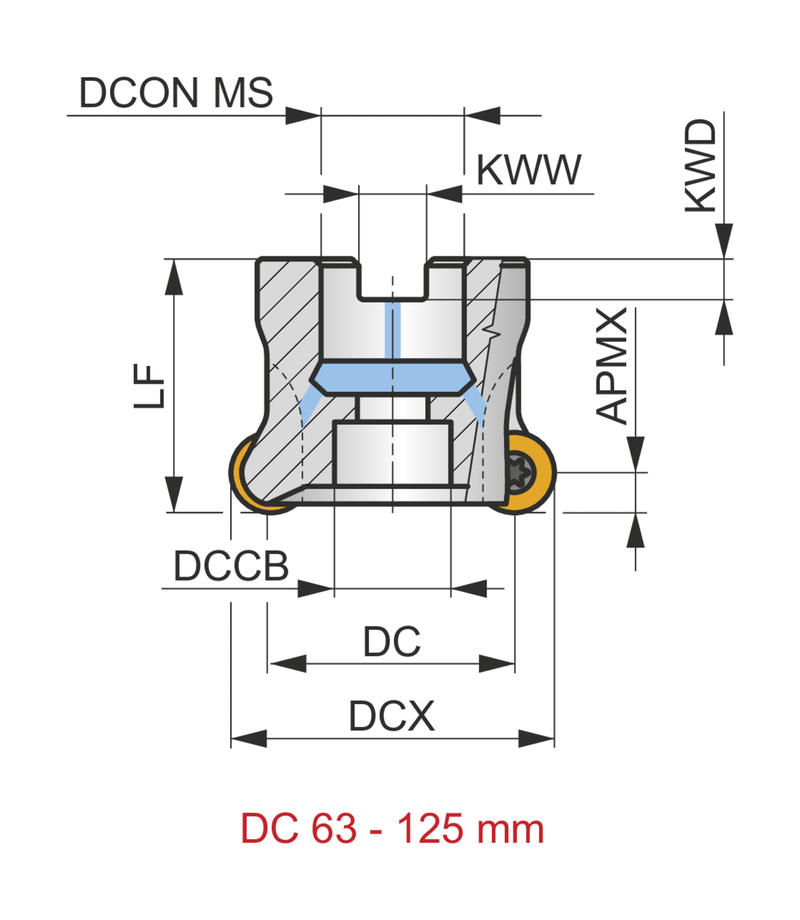

Dimensions
Cutting Diameter — in (DC)3.307"
Cutting Diameter — mm (DC)84.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSRC16
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155922
EAN3603603162082
File Type Download
100A06R-SMORC16-C — 3D Model STP Download
100A06R-SMORC16-C — 2D Model DXF Download
100A06R-SMORC16-C — Line Drawing PDF Download
