160C08R-SMORC16-C
160C08R-SMORC16-C
160C08R-SMORC16-C

160C08R-SMORC16-C

UGC DOR7155923
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,141.00 CAD - $1,141.00 CAD
$1,141.00 CAD
$1,141.00 CAD - $1,141.00 CAD
$1,141.00 CAD

Vendu en lots de : 1

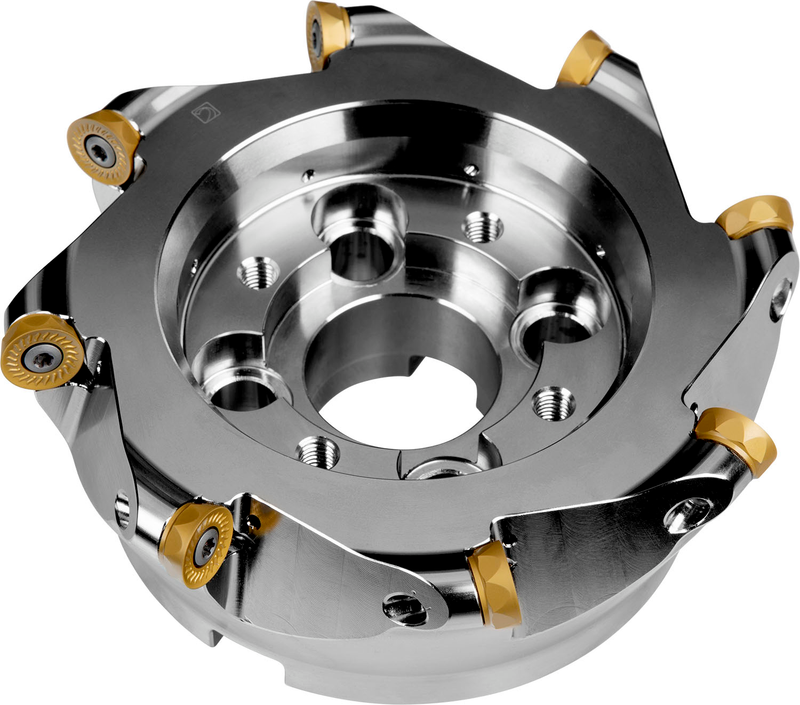

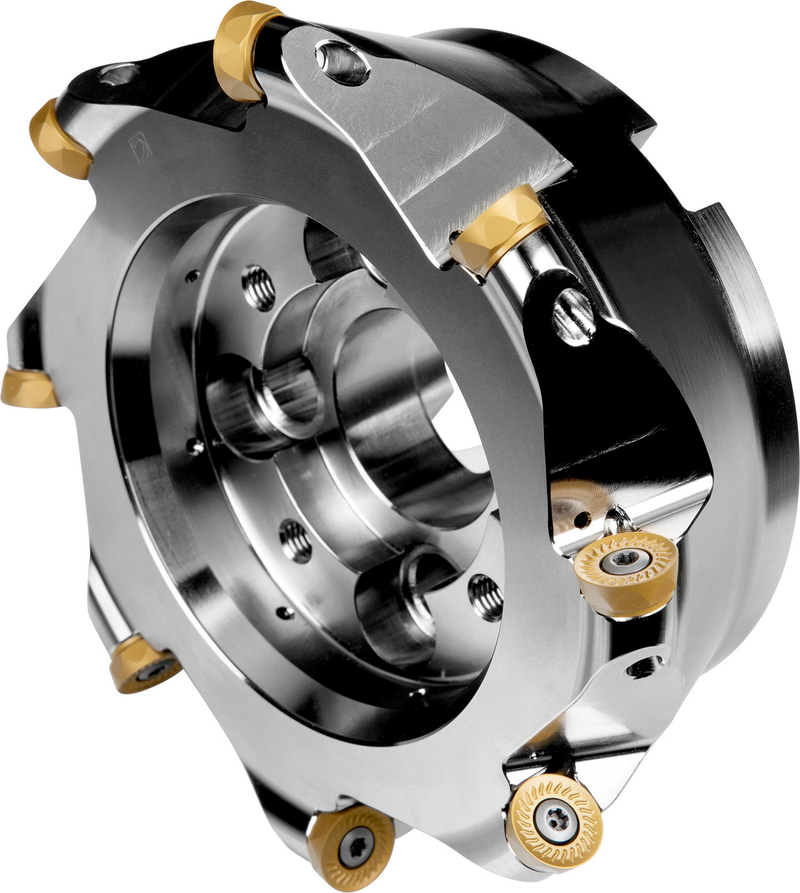

Fraise à copier avec géométrie double négative utilisant 8 plaquettes simple face RCMT 1606MO.., diamètre de coupe 160 mm avec alésage de raccordement de 40 mm selon DIN 8030-C, longueur de saillie de 63 mm, arrosage central pour le surfaçage, la copie, l'usinage en rampe, le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)160C08R-SMORC16-C
Product Number7155923
Product FamilySRC16
Insert Geometry
Depth of Cut Max — mm (APMX)2.3 mm
Dimensions
Cutting Diameter — in (DC)5.669"
Cutting Diameter — mm (DC)144.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSRC16
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7155923
EAN3603603162099
File Type Download
160C08R-SMORC16-C — 3D Model STP Download
160C08R-SMORC16-C — 2D Model DXF Download
160C08R-SMORC16-C — Line Drawing PDF Download
