24E2R032M12-SRD12-CF
24E2R032M12-SRD12-CF
24E2R032M12-SRD12-CF

24E2R032M12-SRD12-CF

UGC DOR7999320
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$273.00 CAD - $273.00 CAD
$273.00 CAD
$273.00 CAD - $273.00 CAD
$273.00 CAD

Vendu en lots de : 1

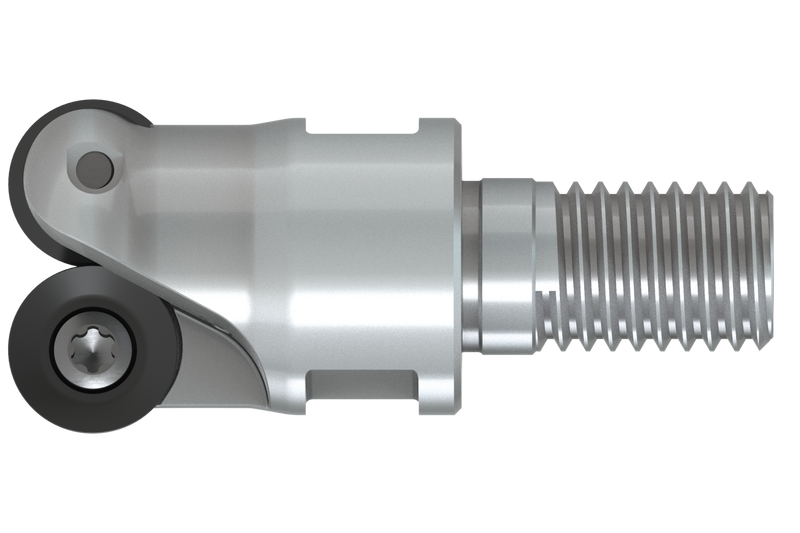

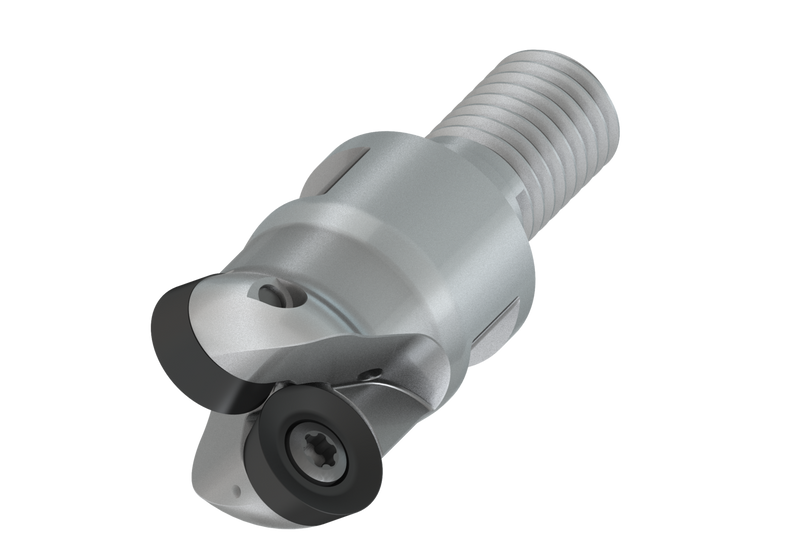

Fraise à surfacer-dresser avec géométrie double négative utilisant 2 plaquettes simple-face RD.. 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe jusqu'à 24mm maximum avec queue filetée M12 pour porte-outils modulaires standards, longueur fonctionnelle de 32mm et longueur en porte-à-faux de 54mm, arrosage central pour surfaçage, copiage, usinage en rampe, usinage en plongée progressive et usinage hélicoïdal avec une profondeur de coupe maximale de 3mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)24E2R032M12-SRD12-CF
Product Number7999320
Product FamilySRD12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

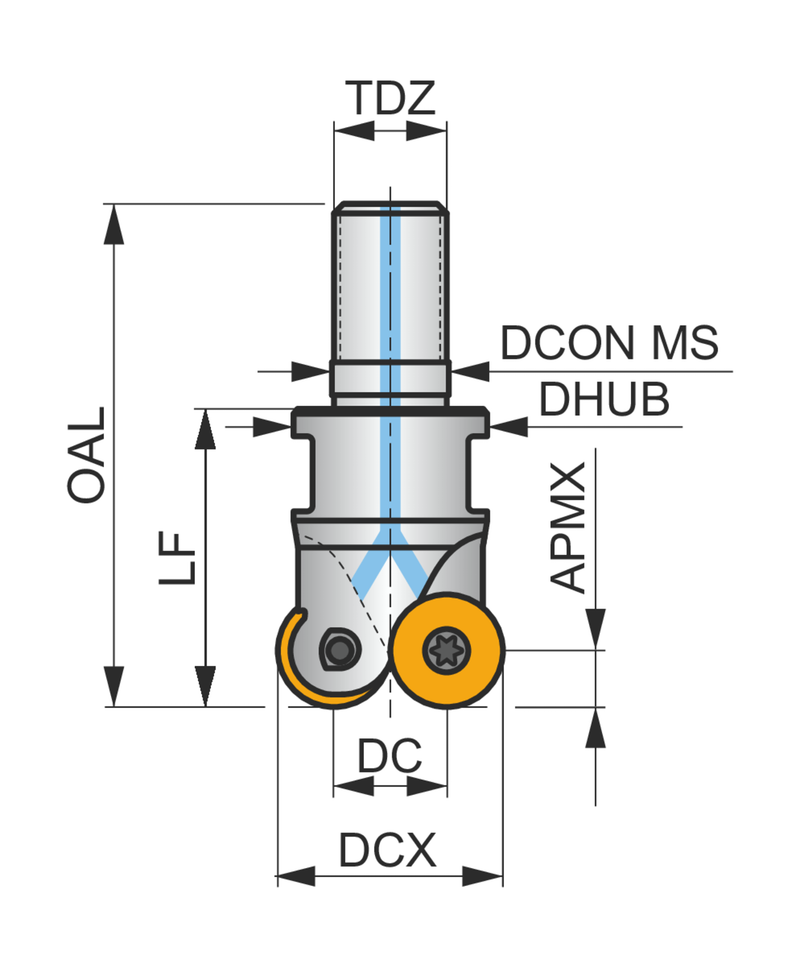

Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Functional Length — mm (LF)32.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSRD12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999320
EAN3603603827967
File Type Download
24E2R032M12-SRD12-CF — 3D Model STP Download
24E2R032M12-SRD12-CF — 2D Model DXF Download
24E2R032M12-SRD12-CF — Line Drawing PDF Download
