42E5R042M16-SRD12-CF
42E5R042M16-SRD12-CF
42E5R042M16-SRD12-CF

42E5R042M16-SRD12-CF

UGC DOR7999324
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$494.00 CAD - $494.00 CAD
$494.00 CAD
$494.00 CAD - $494.00 CAD
$494.00 CAD

Vendu en lots de : 1

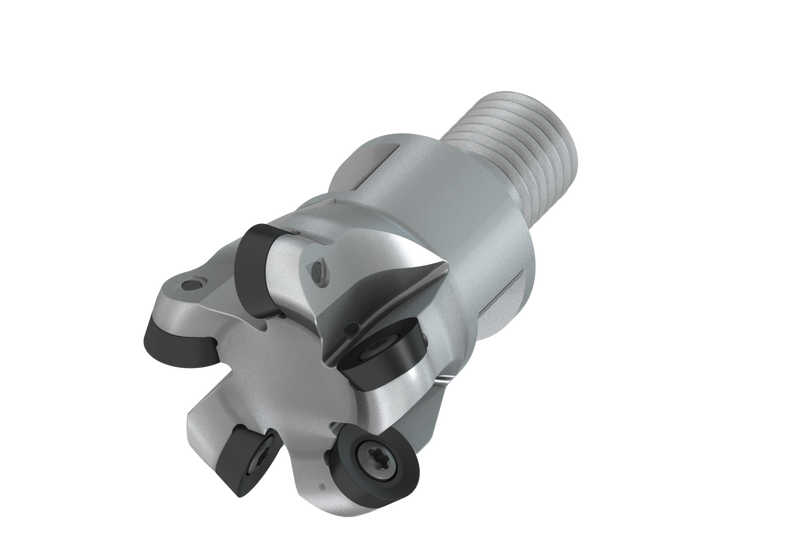

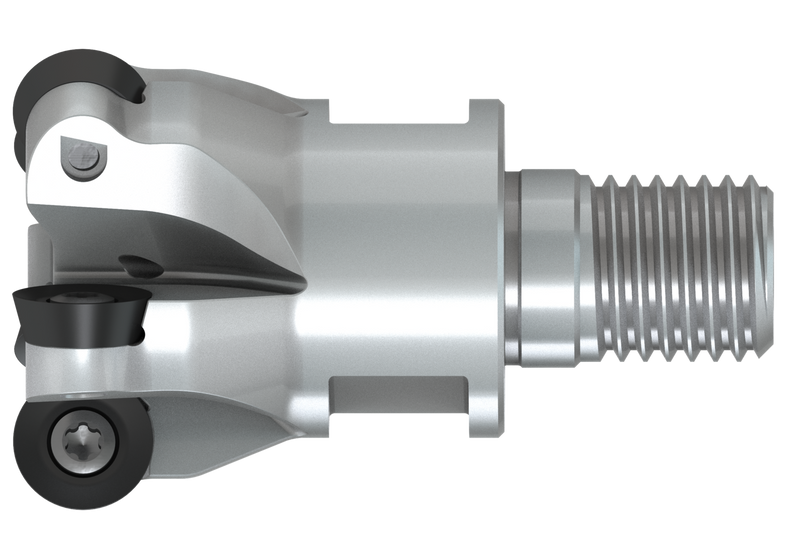

Fraise à surfacer à copier de géométrie double négative utilisant 5 plaquettes simple face RD.. 12T3MOT ou RDHT 12T3MO-FA, diamètre de coupe maximal de 42 mm avec queue filetée M16 pour porte-outils modulaires standards, longueur fonctionnelle de 42 mm et longueur en porte-à-faux de 65 mm, arrosage central pour le surfaçage, la copie, le ramping, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42E5R042M16-SRD12-CF
Product Number7999324
Product FamilySRD12
Insert Geometry
Depth of Cut Max — mm (APMX)3.0 mm

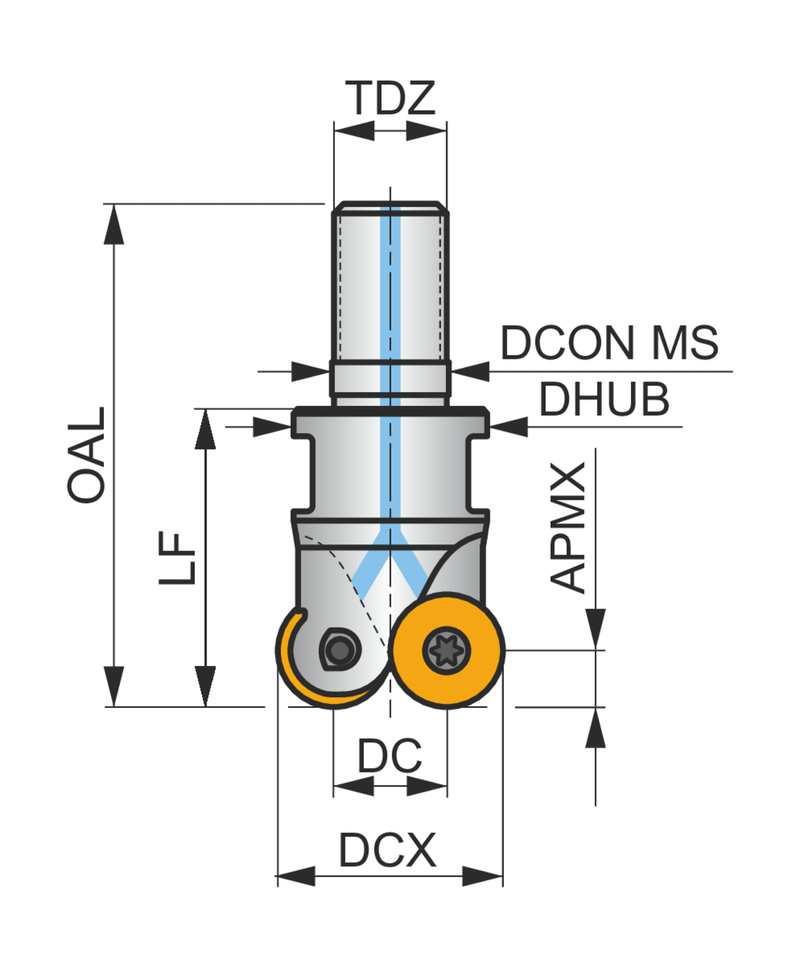

Dimensions
Cutting Diameter — in (DC)1.181"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSRD12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7999324
EAN3603603828001
File Type Download
42E5R042M16-SRD12-CF — 3D Model STP Download
42E5R042M16-SRD12-CF — 2D Model DXF Download
42E5R042M16-SRD12-CF — Line Drawing PDF Download
