42E5R042M16-SRN10-C
42E5R042M16-SRN10-C

42E5R042M16-SRN10-C

UGC DOR8547646
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$510.00 CAD - $510.00 CAD
$510.00 CAD
$510.00 CAD - $510.00 CAD
$510.00 CAD

Vendu en lots de : 1

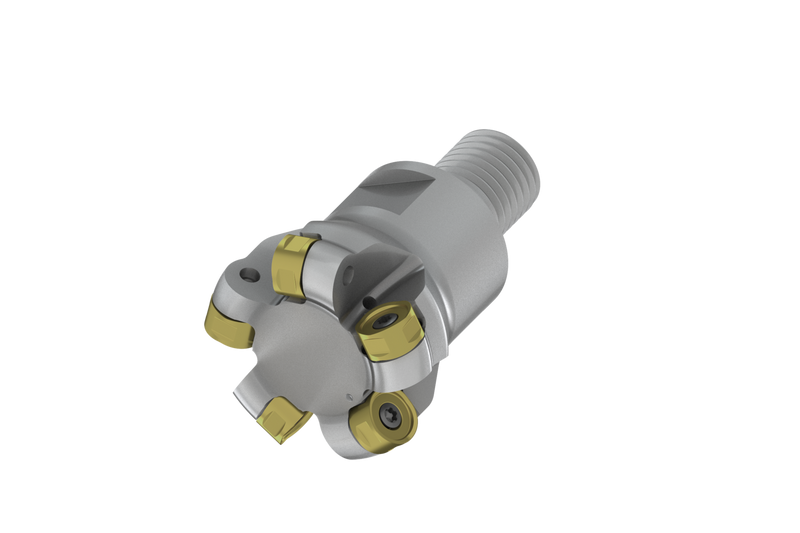

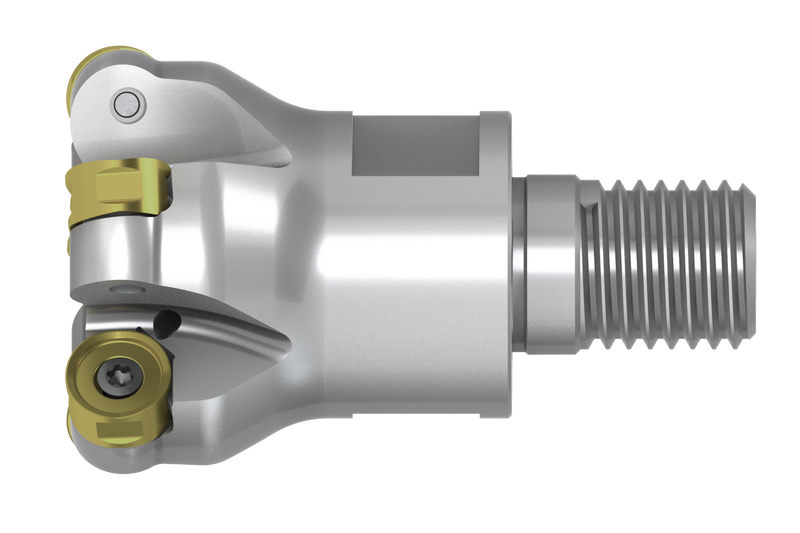

Fraise à copier deux-tailles à géométrie double négative utilisant 5 plaquettes double face RNMU 1004MOT.., diamètre de coupe 42mm avec queue filetée M16mm pour porte-outils modulaires standard, longueur de dépassement 42mm, arrosage central pour le surfaçage, le copiage et le fraisage en plongée progressive avec une profondeur de coupe maximale de 4,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)42E5R042M16-SRN10-C
Product Number8547646
Product FamilySRN10
Insert Geometry
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — in (LF)1.654"
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRN10
ShankAccouplement fileté
Reference Numbers
EDP Number8547646
EAN3603604262033
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
42E5R042M16-SRN10-C — 3D Model STP Download
42E5R042M16-SRN10-C — 2D Model DXF Download
42E5R042M16-SRN10-C — Line Drawing PDF Download
