32E3R042M16-SRN12-C
32E3R042M16-SRN12-C

32E3R042M16-SRN12-C

UGC DOR8547831
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$458.00 CAD - $458.00 CAD
$458.00 CAD
$458.00 CAD - $458.00 CAD
$458.00 CAD

Vendu en lots de : 1

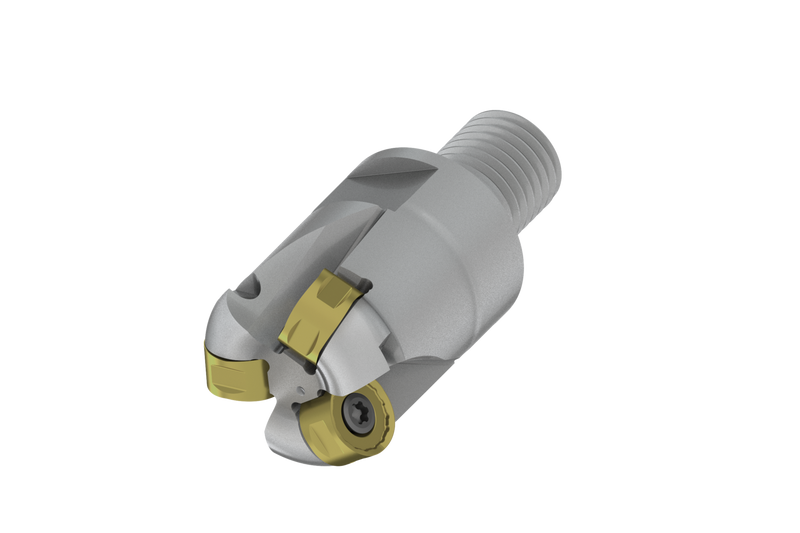

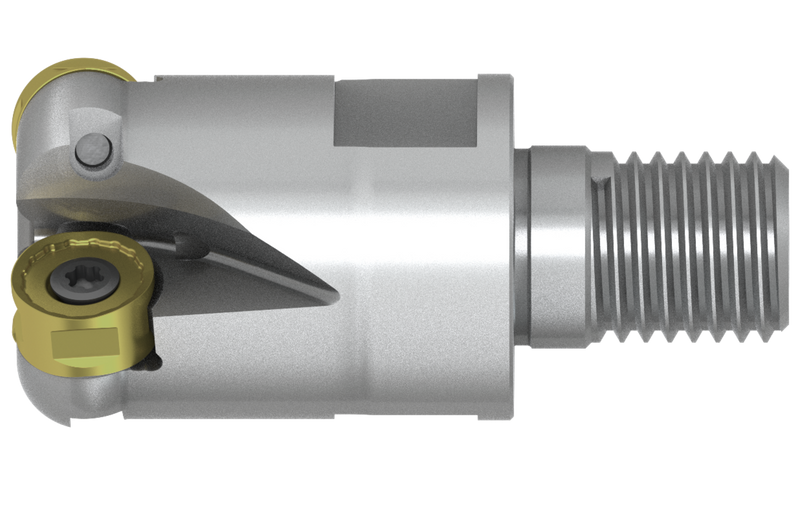

Fraise à copier double effet avec géométrie négative qui utilise 3 plaquettes double face RNMU 1205MOT, diamètre de coupe 32 mm avec une queue filetée M16 mm pour porte-outils modulaires standards, longueur de dépassement de 42 mm, arrosage central pour le surfaçage, le copiage et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E3R042M16-SRN12-C
Product Number8547831
Product FamilySRN12
Insert Geometry
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — in (LF)1.654"
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSRN12
ShankRaccord fileté
Reference Numbers
EDP Number8547831
EAN3603604262149
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
32E3R042M16-SRN12-C — 3D Model STP Download
32E3R042M16-SRN12-C — 2D Model DXF Download
32E3R042M16-SRN12-C — Line Drawing PDF Download
