52A05R-SMORN12-C
52A05R-SMORN12-C

52A05R-SMORN12-C

UGC DOR8547835
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$581.00 CAD - $581.00 CAD
$581.00 CAD
$581.00 CAD - $581.00 CAD
$581.00 CAD

Vendu en lots de : 1

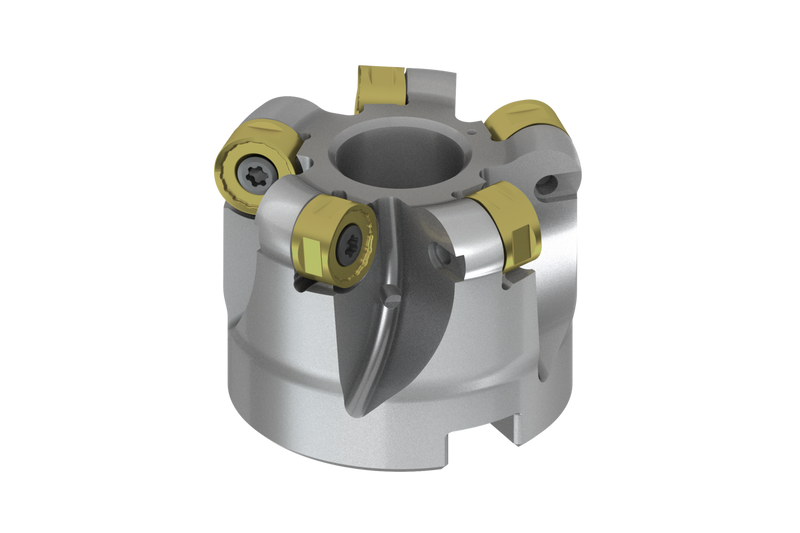

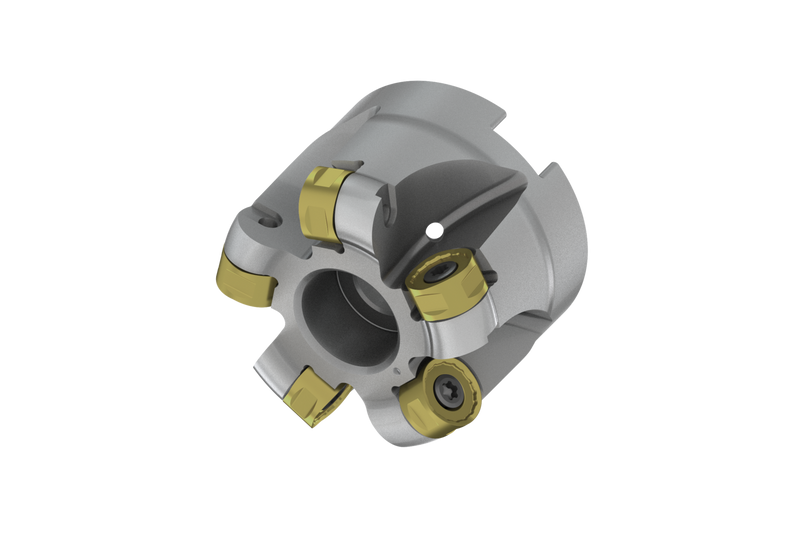

Fraise à copier avec une géométrie doublement négative qui utilise 5 plaquettes double face RNMU 1205MOT..., diamètre de coupe 52mm avec alésage de connexion de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central pour le surfaçage, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de 5,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A05R-SMORN12-C
Product Number8547835
Product FamilySRN12
Insert Geometry
Insert DesignRNMU12
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSRN12
ShankFraise coquille DIN 8030 A
Reference Numbers
EDP Number8547835
EAN3603604262187
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
52A05R-SMORN12-C — 3D Model STP Download
52A05R-SMORN12-C — 2D Model DXF Download
52A05R-SMORN12-C — Line Drawing PDF Download
