125E3R134C125-ISRN12-C
125E3R134C125-ISRN12-C

125E3R134C125-ISRN12-C

UGC DOR8654380
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$458.00 CAD - $458.00 CAD
$458.00 CAD
$458.00 CAD - $458.00 CAD
$458.00 CAD

Vendu en lots de : 1

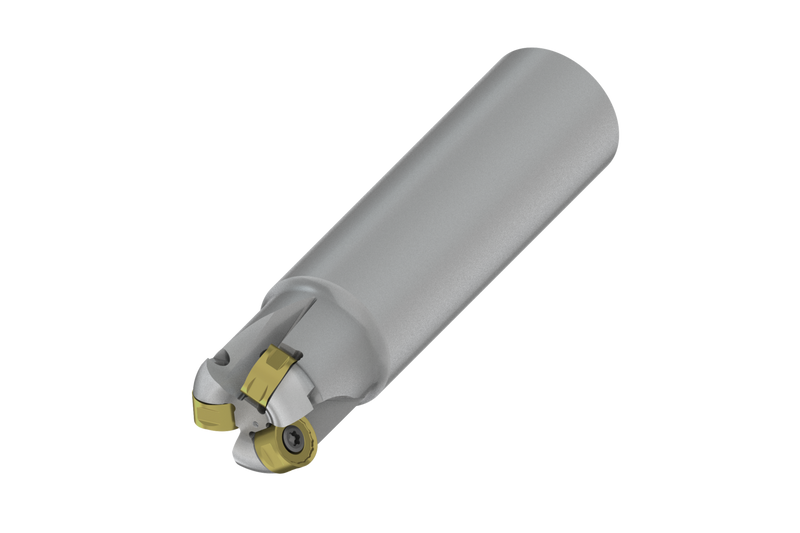

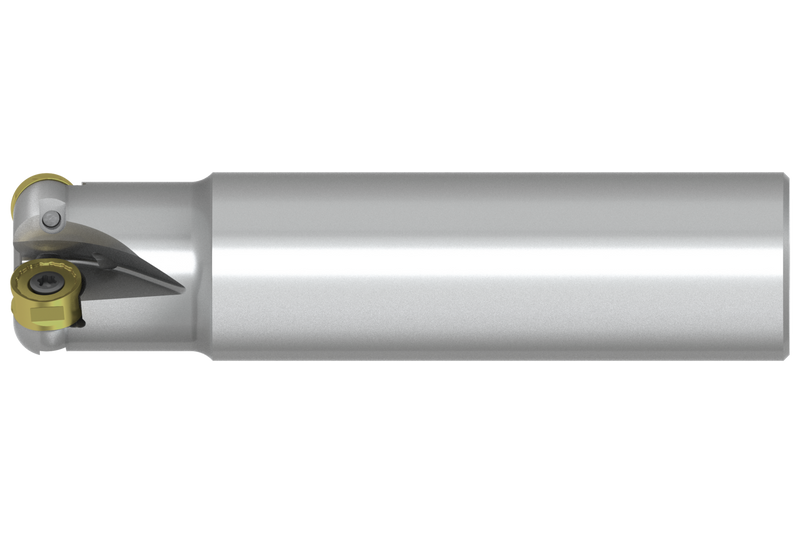

Fraise à surfacer à copier avec géométrie double négative qui utilise 3 plaquettes double-face RNMU 1205MOT, diamètre de coupe 1,250'' avec queue cylindrique 1,250'' selon DIN 1835A, longueur fonctionnelle 1,340'' et longueur totale 5,157'', arrosage interne pour le surfaçage, le fraisage en copie et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,236''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E3R134C125-ISRN12-C
Product Number8654380
Product FamilyISRN12
Insert Geometry
Depth of Cut Max — in (APMX)0.236"
Dimensions
Cutting Diameter — in (DC)0.778"
Cutting Diameter — mm (DC)19.75 mm
Overall Length — in (OAL)5.157"
Overall Length — mm (OAL)131.0 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSRN12
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number8654380
EAN3603604459112
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
125E3R134C125-ISRN12-C — 3D Model STP Download
125E3R134C125-ISRN12-C — 2D Model DXF Download
125E3R134C125-ISRN12-C — Line Drawing PDF Download
