UGC DOR7455290
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$307.00 CAD - $307.00 CAD
$307.00 CAD
$307.00 CAD - $307.00 CAD
$307.00 CAD

Vendu en lots de : 1

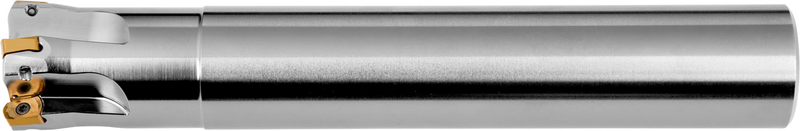

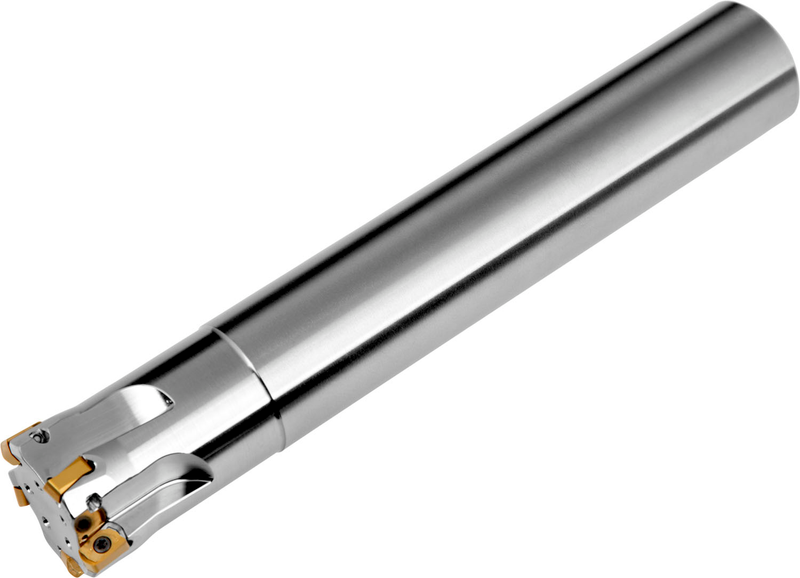

Fraise à avance rapide à double géométrie négative qui utilise 2 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 15,875 mm avec un angle d'attaque de 20° et une queue cylindrique de 15,875 mm selon DIN 1835A, longueur fonctionnelle 50 mm et longueur totale 150 mm, arrosage central pour le surfaçage, la copie, le fraisage d'épaulements profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 1 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)062E2R197C062-ISBN10-C
Product Number7455290
Product FamilyISBN10

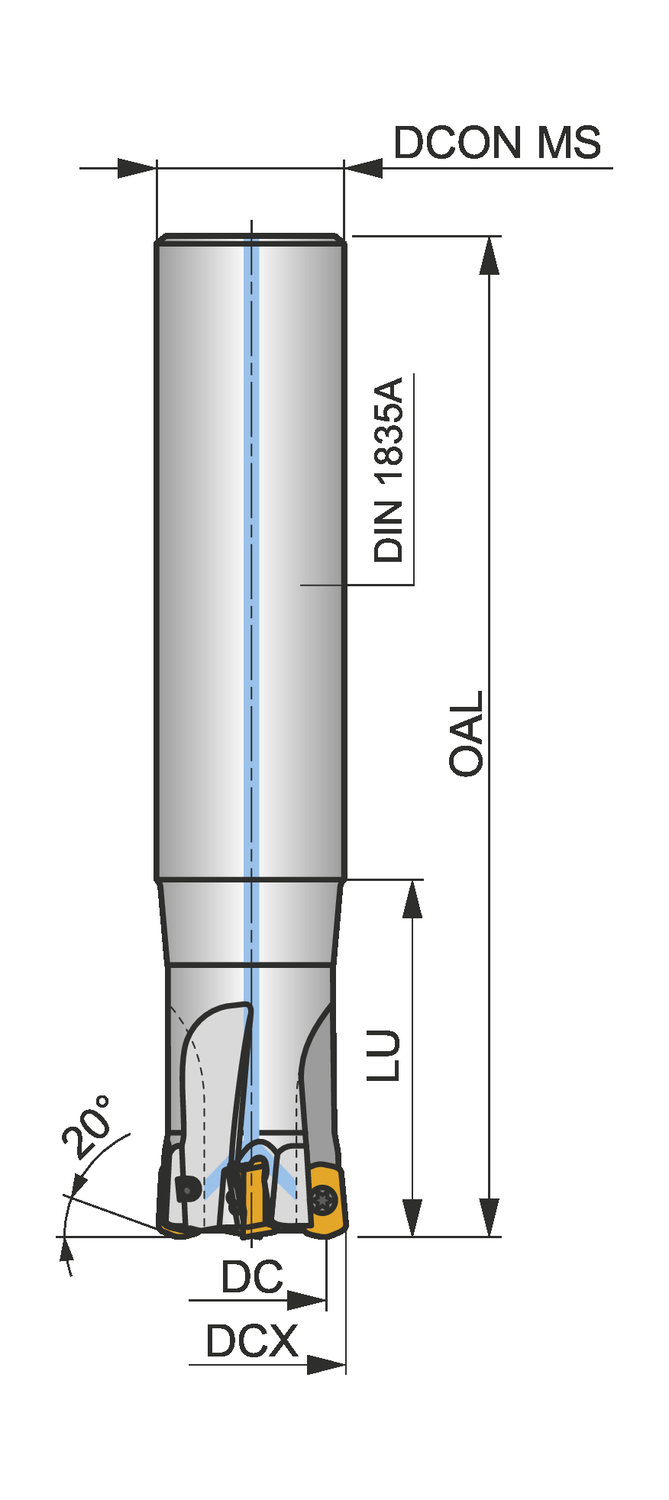

Dimensions
Cutting Diameter — in (DC)0.365"
Cutting Diameter — mm (DC)9.3 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.01 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.9 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7455290
EAN3603603388246
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
062E2R197C062-ISBN10-C — 3D Model STP Download
062E2R197C062-ISBN10-C — 2D Model DXF Download
062E2R197C062-ISBN10-C — Line Drawing PDF Download
