40A07R-SMOBN10-C
40A07R-SMOBN10-C
40A07R-SMOBN10-C

40A07R-SMOBN10-C

UGC DOR7464825
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

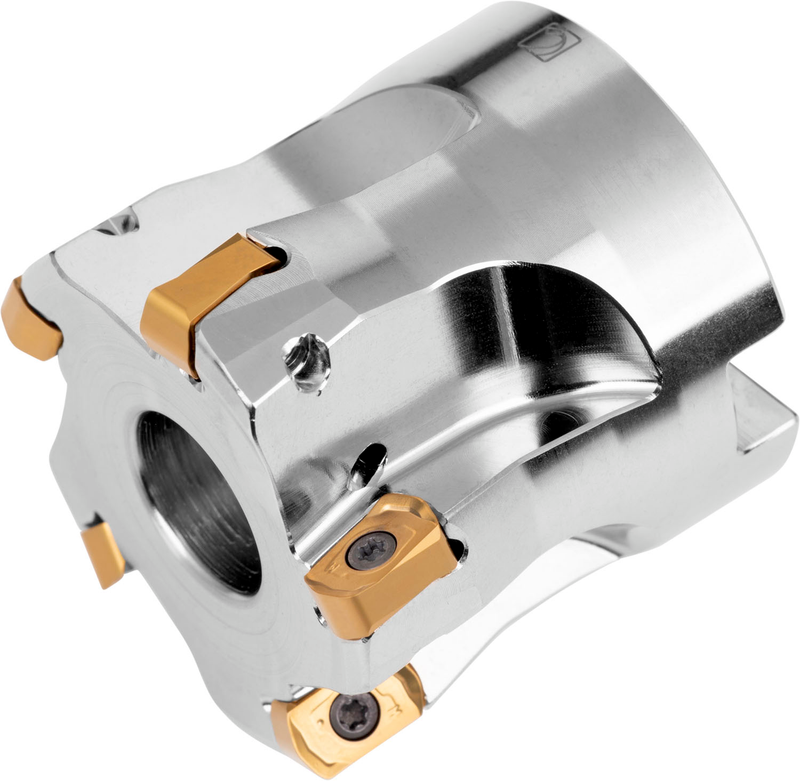

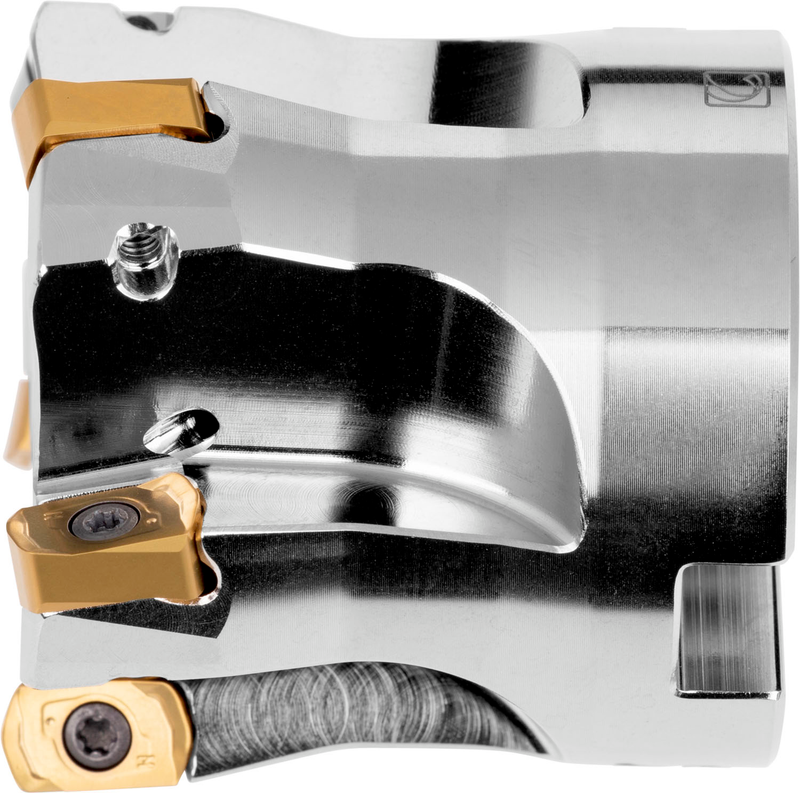

Fraise à avance rapide à géométrie positive/négative qui utilise 7 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 40 mm avec un angle d'attaque de 20° et un alésage de raccordement de 16 mm selon la norme DIN 8030-A, longueur de saillie 40 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage d'épaulement peu profond, le fraisage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A07R-SMOBN10-C
Product Number7464825
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

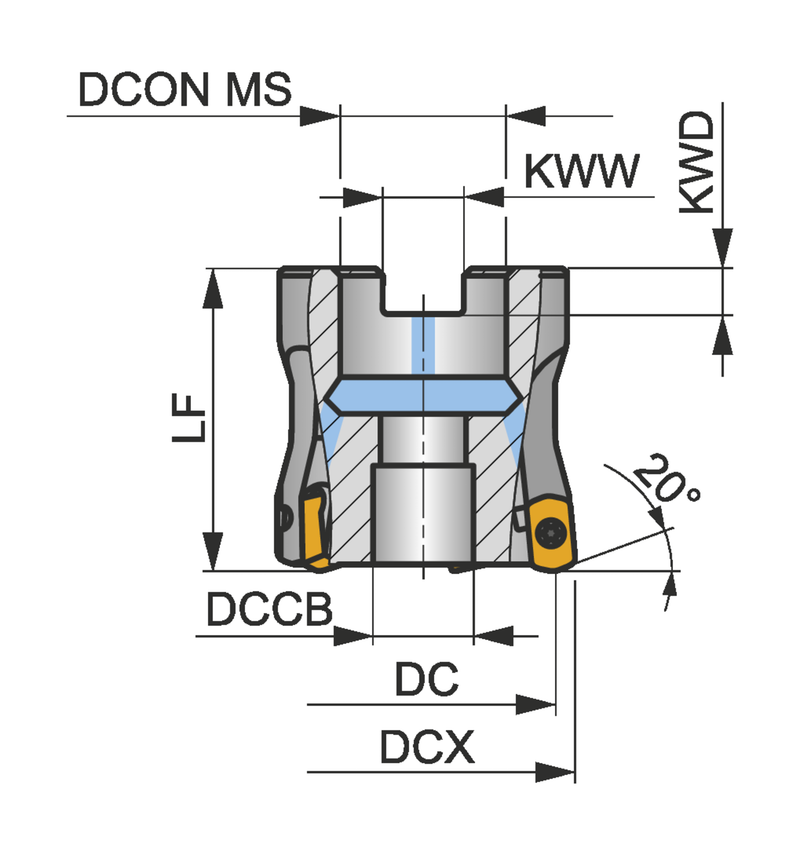

Dimensions
Cutting Diameter — in (DC)1.315"
Cutting Diameter — mm (DC)33.4 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSBN10
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7464825
EAN3603603406025
File Type Download
40A07R-SMOBN10-C — 3D Model STP Download
40A07R-SMOBN10-C — 2D Model DXF Download
40A07R-SMOBN10-C — Line Drawing PDF Download
