BNGX 10T308SR-MM:M9340
BNGX 10T308SR-MM:M9340

BNGX 10T308SR-MM:M9340

UGC DOR7253621
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.01 CAD - $20.01 CAD
$20.01 CAD
$20.01 CAD - $20.01 CAD
$20.01 CAD

Vendu en lots de : 10

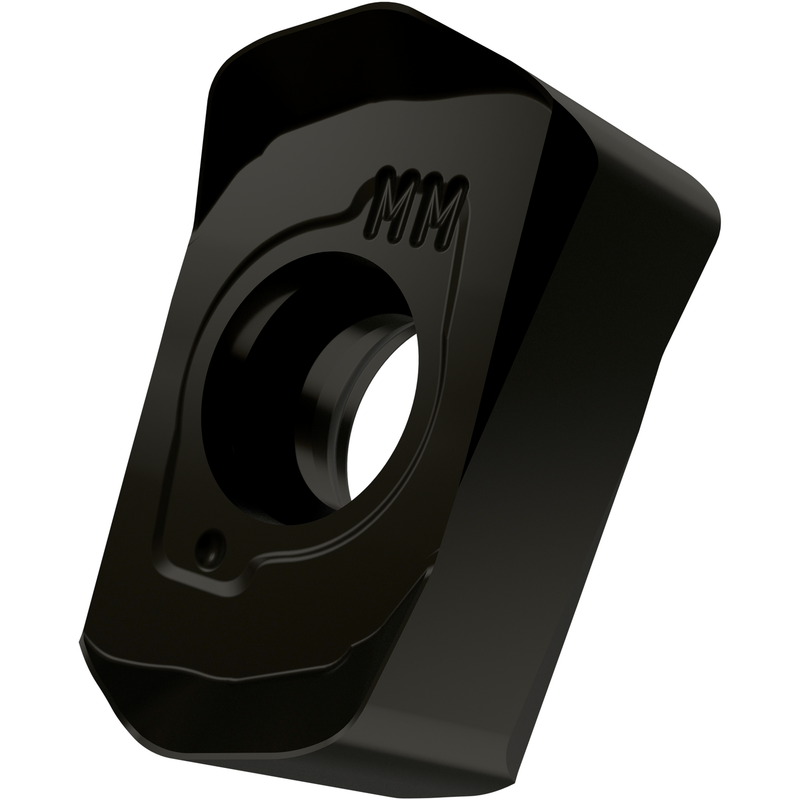

Plaquette de fraisage double face BNGX 10T3, parallélogramme 82° et conception à avance élevée pour une profondeur de coupe maximale de 1 mm, avec rayon de pointe de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G et géométrie MM avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu MT-CVD M9340 dans les plages de grades ISO M30-M40 et S15-S20 pour l'usinage de l'acier inoxydable et du superalliage avec les fraises à avance élevée SBN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BNGX 10T308SR-MM:M9340
GradeM9340
Chipbreaker (CBMD)MM
Product Number7253621
Product FamilyBNGX 10

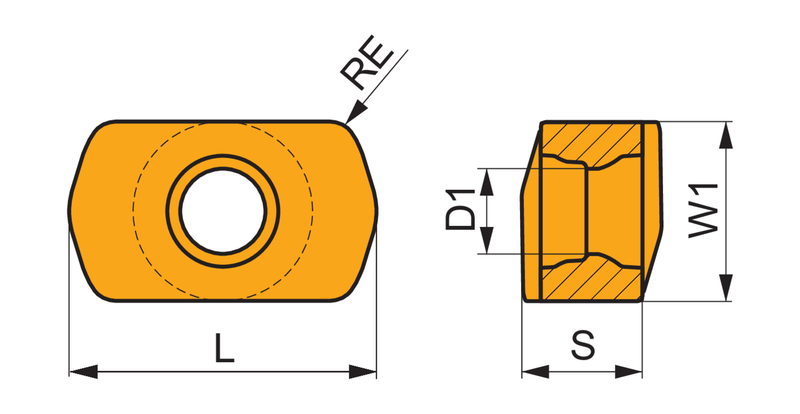

Insert Geometry
Insert DesignBNGX
Insert Shape Code (SC)B - parallélogramme angle inclus de 82°
Insert Thickness — in (S)0.154"
Insert Thickness — mm (S)3.9 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7253621
EAN3603603226081
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
BNGX 10T308SR-MM:M9340 — Line Drawing PDF Download
