BNGX 10T308SR-M:8215
BNGX 10T308SR-M:8215

BNGX 10T308SR-M:8215

UGC DOR7451991
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.41 CAD - $19.41 CAD
$19.41 CAD
$19.41 CAD - $19.41 CAD
$19.41 CAD

Vendu en lots de : 10

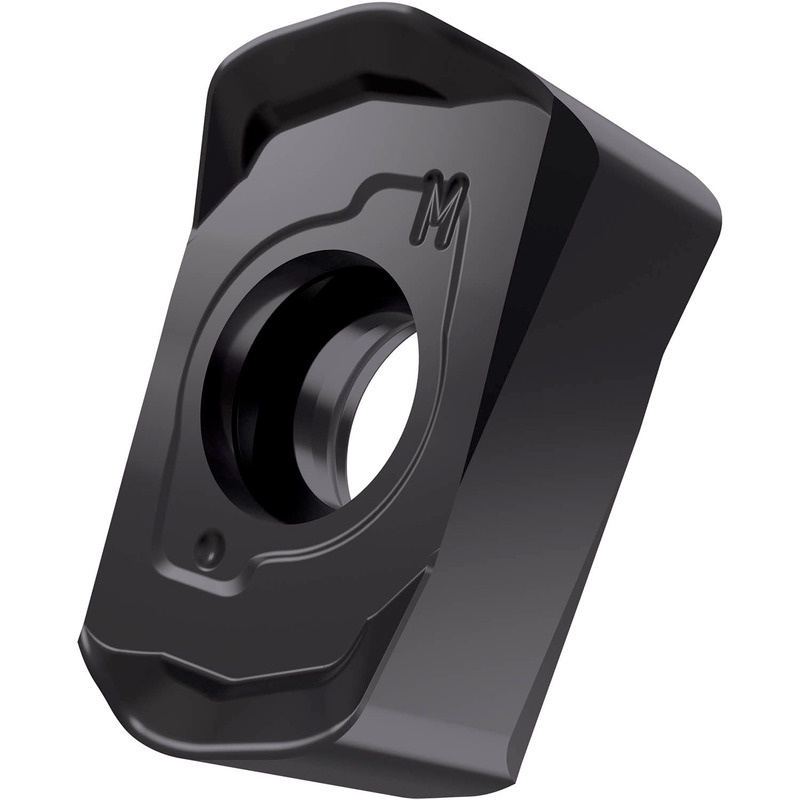

Plaquette de fraisage double-face BNGX 10T3, parallélogramme de 82° et conception à avance rapide pour une profondeur de coupe maximale de 1 mm, avec rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G et géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD 8215 dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier et de la fonte avec des fraises à avance rapide SBN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BNGX 10T308SR-M:8215
Grade8215
Chipbreaker (CBMD)M
Product Number7451991
Product FamilyBNGX 10

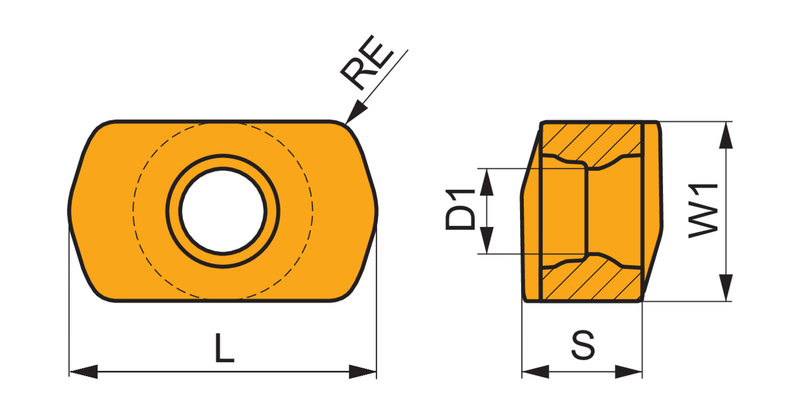

Insert Geometry
Insert DesignBNGX
Insert Shape Code (SC)B - parallélogramme angle inclus de 82°
Insert Thickness — in (S)0.154"
Insert Thickness — mm (S)3.9 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7451991
EAN3603603386419
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
BNGX 10T308SR-M:8215 — Line Drawing PDF Download
