ANHX 10T320SR-F:M8330
ANHX 10T320SR-F:M8330

ANHX 10T320SR-F:M8330

UGC DOR7452020
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.03 CAD - $19.03 CAD
$19.03 CAD
$19.03 CAD - $19.03 CAD
$19.03 CAD

Vendu en lots de : 10

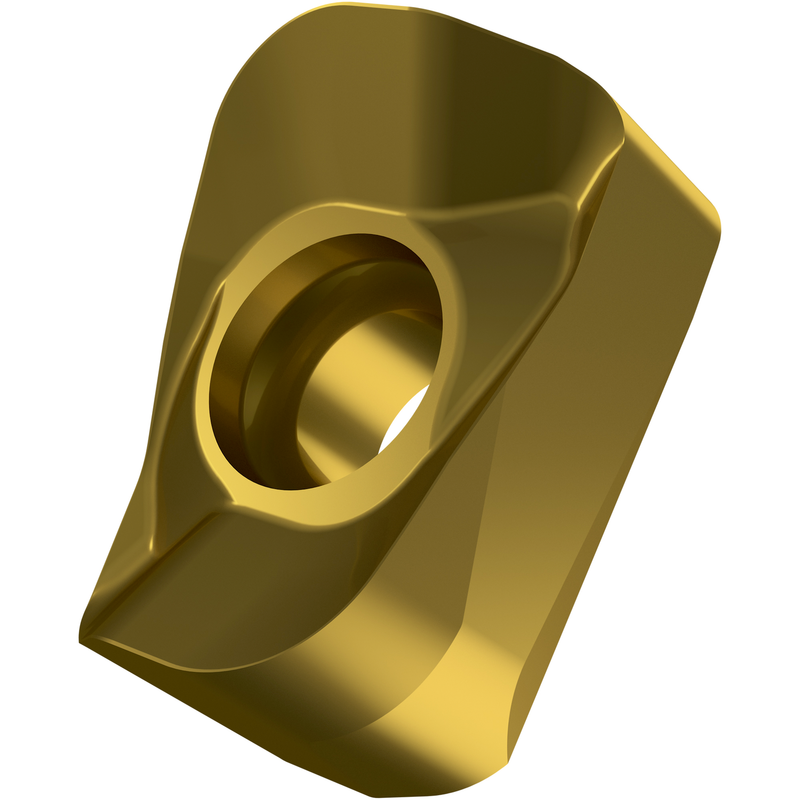

Plaquette de fraisage simple face ANHX 10T3, parallélogramme à 85° pour une profondeur de coupe maximale de 3 mm, avec un rayon de coin de 2 mm, une précision de positionnement selon la classe de tolérance ISO-H et une géométrie F avec arêtes de coupe et facette arrondies, carbure WC-Co à grains fins revêtu PVD M8330 de classe ISO P20-P40 pour l'usinage de l'acier avec des fraises à avance élevée SBN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ANHX 10T320SR-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number7452020
Product FamilyANHX 10

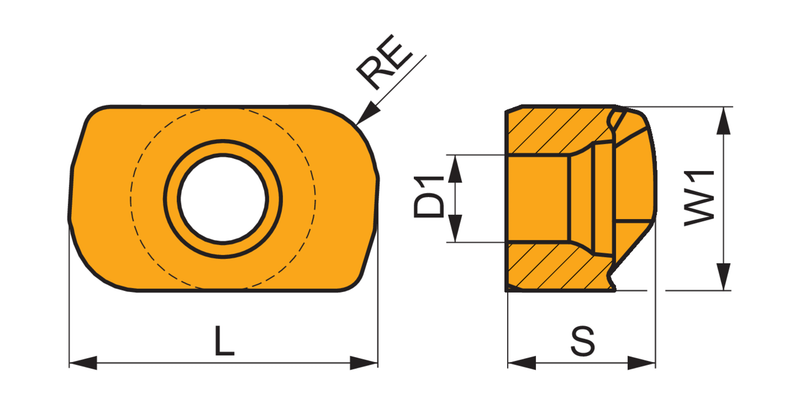

Insert Geometry
Insert DesignANHX
Insert Shape Code (SC)A - parallélogramme angle inclus 85°
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.7 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7452020
EAN3603603386501
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
File Type Download
ANHX 10T320SR-F:M8330 — Line Drawing PDF Download
