40N3R045B32-SSD13F-C
40N3R045B32-SSD13F-C
40N3R045B32-SSD13F-C

40N3R045B32-SSD13F-C

UGC DOR8202699
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$562.00 CAD - $562.00 CAD
$562.00 CAD
$562.00 CAD - $562.00 CAD
$562.00 CAD

Vendu en lots de : 1

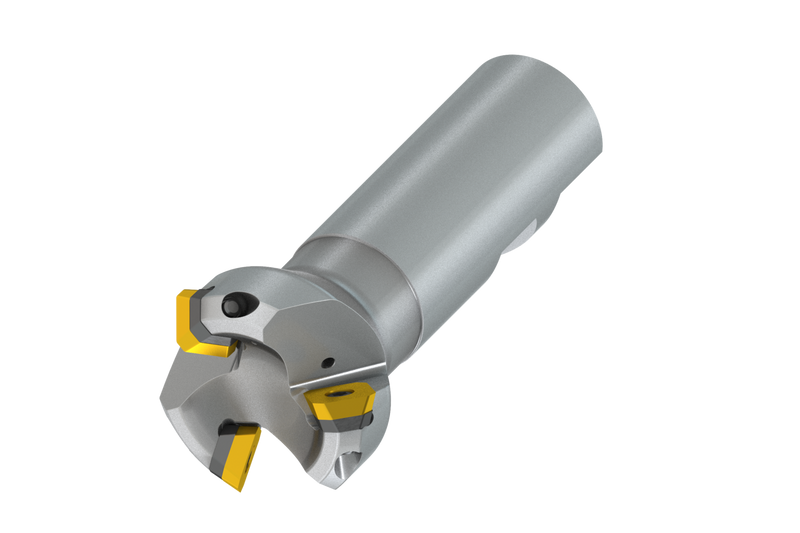

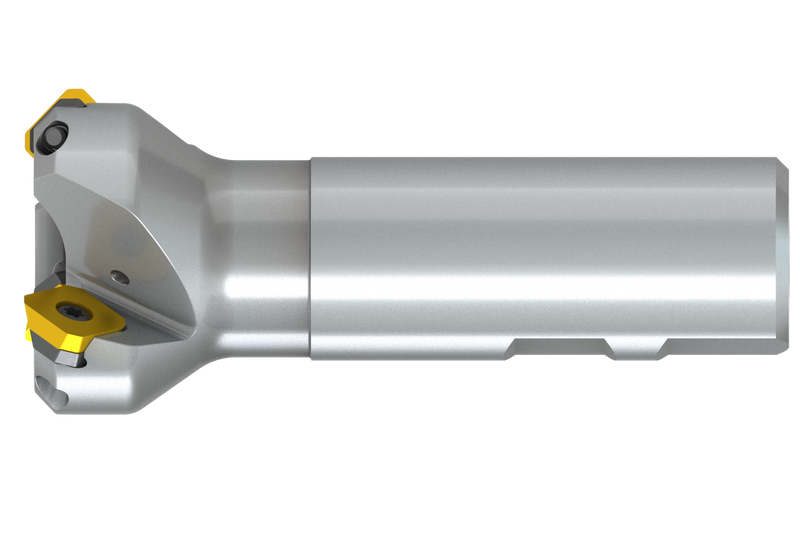

Fraise à surfacer à géométrie positive/négative qui utilise 3 plaquettes simple face SDET 13T3.., SDMT 13T3.. ou XDET 13T3.., diamètre de coupe de 40mm à 53,5mm maximum avec un angle d'attaque de 45° et un queue Weldon de 32mm selon DIN 1835B, longueur utile de 45mm et longueur totale de 120mm, arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 6,4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40N3R045B32-SSD13F-C
Product Number8202699
Product FamilySSD13F
Insert Geometry
Depth of Cut Max — mm (APMX)6.4 mm

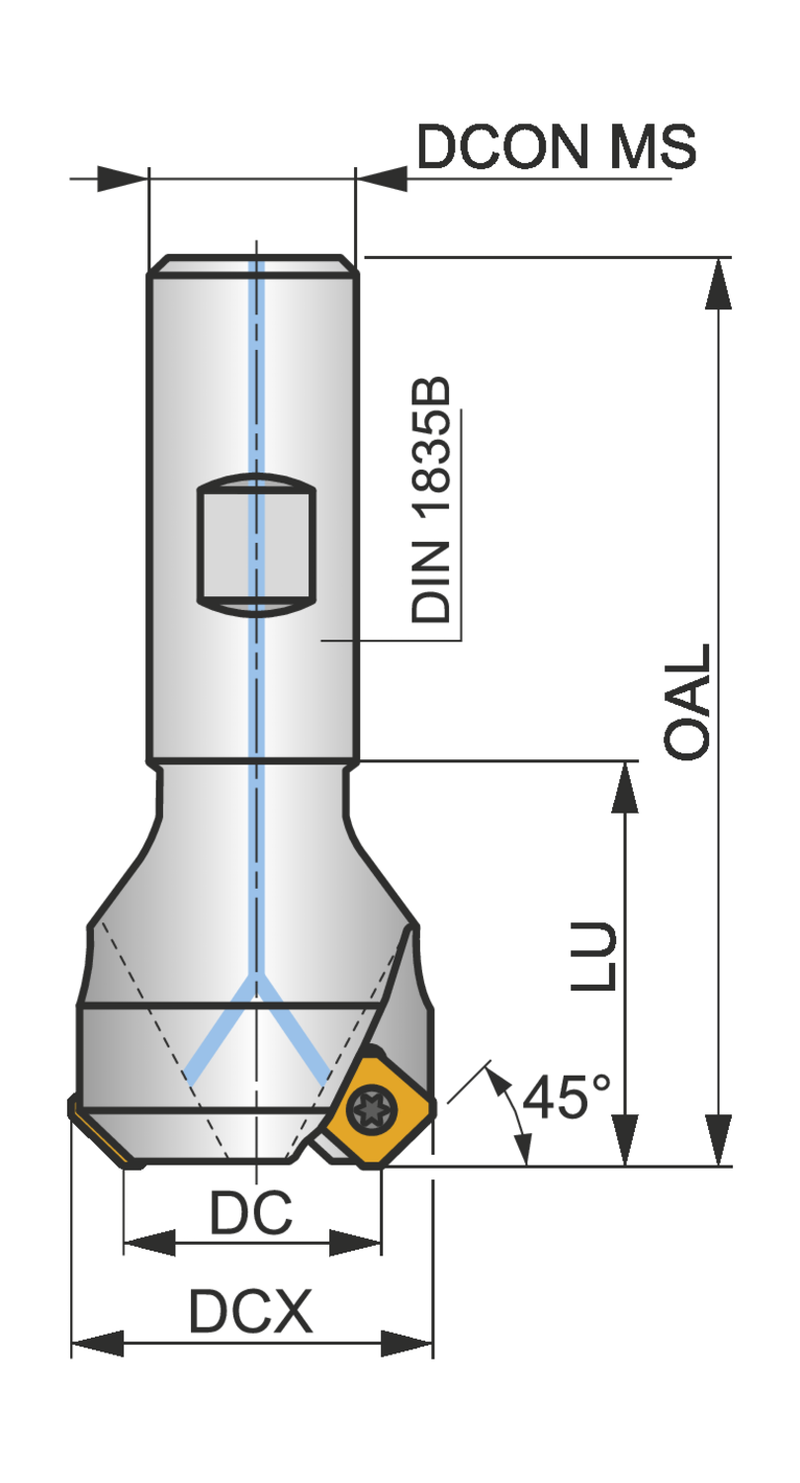

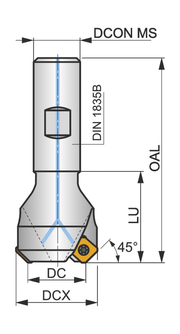

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — in (LU)1.772"
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSD13F
ShankQueue de Weldon DIN 1835B
Through Coolant Yes
Reference Numbers
EDP Number8202699
EAN3603603977204
File Type Download
40N3R045B32-SSD13F-C — 3D Model STP Download
40N3R045B32-SSD13F-C — 2D Model DXF Download
40N3R045B32-SSD13F-C — Line Drawing PDF Download
