SDMT 13T3AFSN-M:M8330
SDMT 13T3AFSN-M:M8330

SDMT 13T3AFSN-M:M8330

UGC DOR8202689
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.00 CAD - $21.00 CAD
$21.00 CAD
$21.00 CAD - $21.00 CAD
$21.00 CAD

Vendu en lots de : 10

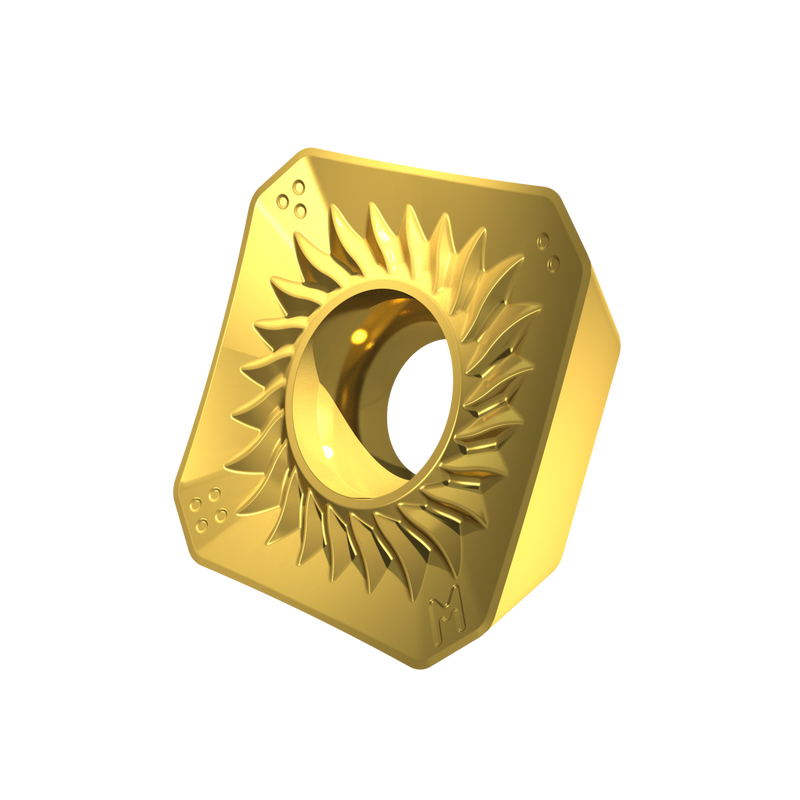

Plaquette de fraisage simple face SDMT 13T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,4 mm, avec une précision d'indexage selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD M8330 dans les gammes de classes ISO P20 -P40/M20 -M35 et K20 -K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte avec les fraises à surfacer SSD13F

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 13T3AFSN-M:M8330
Chipbreaker (CBMD)M
Product Number8202689
Product FamilySDMT 13
Insert Geometry
Insert DesignSDMT 13
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.527"
Inscribed Circle Dia. — mm (IC)13.38 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number8202689
EAN3603603977105
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download

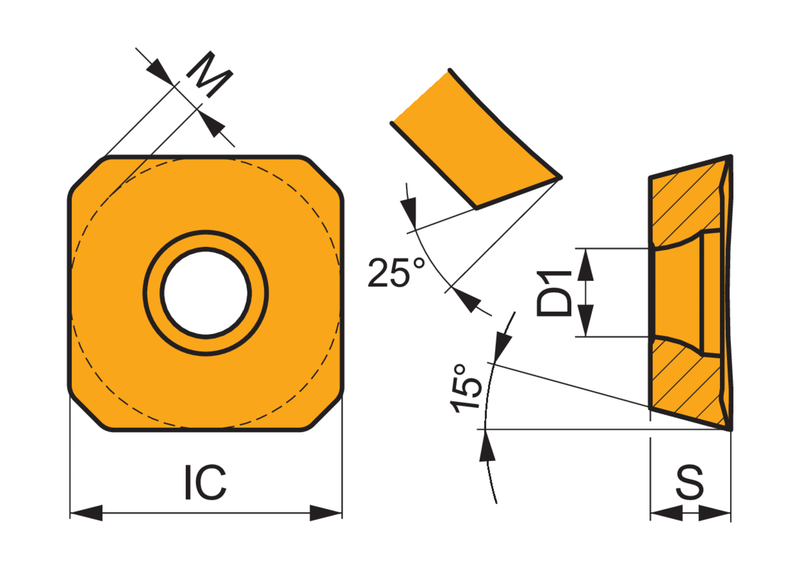

SDMT 13T3AFSN-M:M8330 — Line Drawing PDF Download
