200C16R-S45SD13F-C
200C16R-S45SD13F-C
200C16R-S45SD13F-C

200C16R-S45SD13F-C

UGC DOR8202794
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,141.00 CAD - $2,141.00 CAD
$2,141.00 CAD
$2,141.00 CAD - $2,141.00 CAD
$2,141.00 CAD

Vendu en lots de : 1

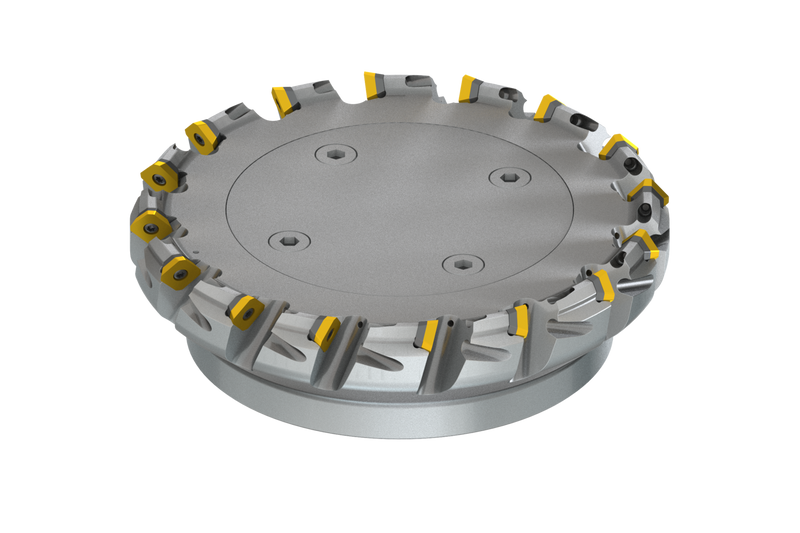

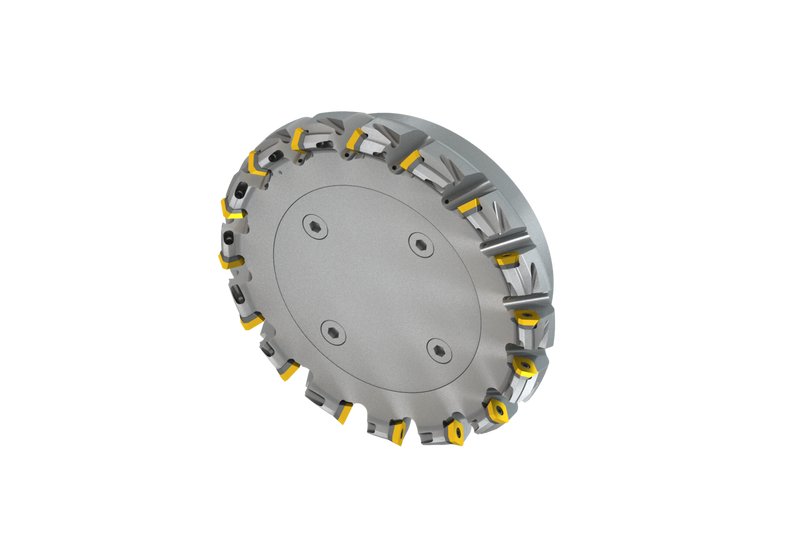

Fraise à surfacer avec géométrie positive/négative utilisant 16 plaquettes simple face SDET 13T3.., SDMT 13T3.. ou XDET 13T3.., diamètre de coupe de 200 mm à 212,8 mm maximum avec un angle d'attaque de 45° et un alésage de connexion de 60 mm selon DIN 8030-C, un alésage fonctionnel de 63 mm et un arrosage par le centre, pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 6,4 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200C16R-S45SD13F-C
Product Number8202794
Product FamilySSD13F

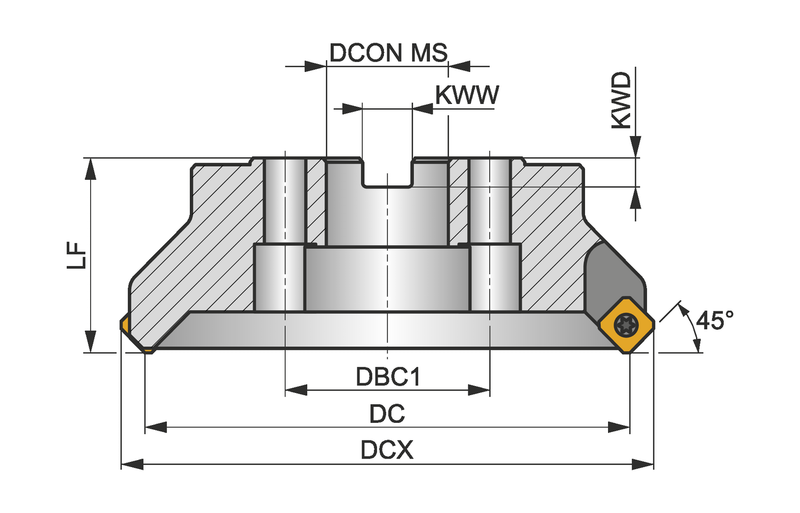

Insert Geometry
Depth of Cut Max — mm (APMX)6.4 mm
Dimensions
Cutting Diameter — in (DC)7.874"
Cutting Diameter — mm (DC)200.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)16
Tool Information
Tool DesignSSD13F
ShankFraise cloche DIN 8030 C
Through Coolant Yes
Reference Numbers
EDP Number8202794
EAN3603603977310
File Type Download
200C16R-S45SD13F-C — 3D Model STP Download
200C16R-S45SD13F-C — 2D Model DXF Download
200C16R-S45SD13F-C — Line Drawing PDF Download
