250C20R-S45SD13F-C
250C20R-S45SD13F-C
250C20R-S45SD13F-C

250C20R-S45SD13F-C

UGC DOR8202796
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,714.00 CAD - $2,714.00 CAD
$2,714.00 CAD
$2,714.00 CAD - $2,714.00 CAD
$2,714.00 CAD

Vendu en lots de : 1

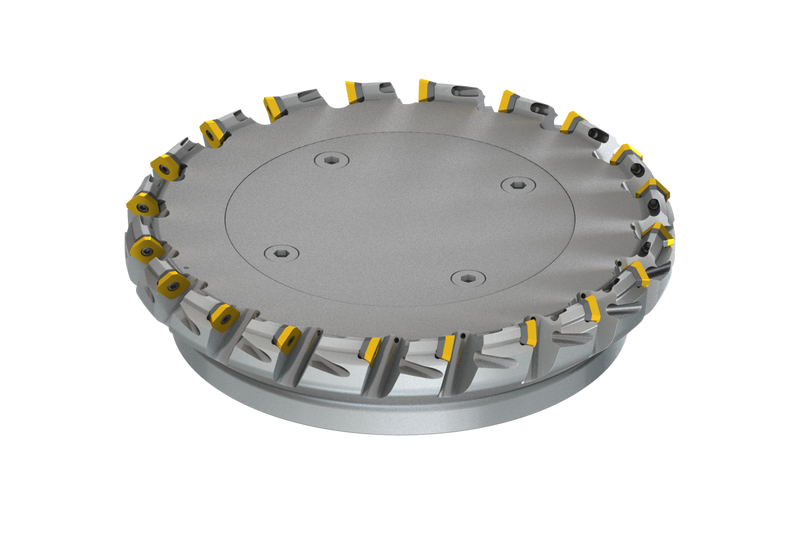

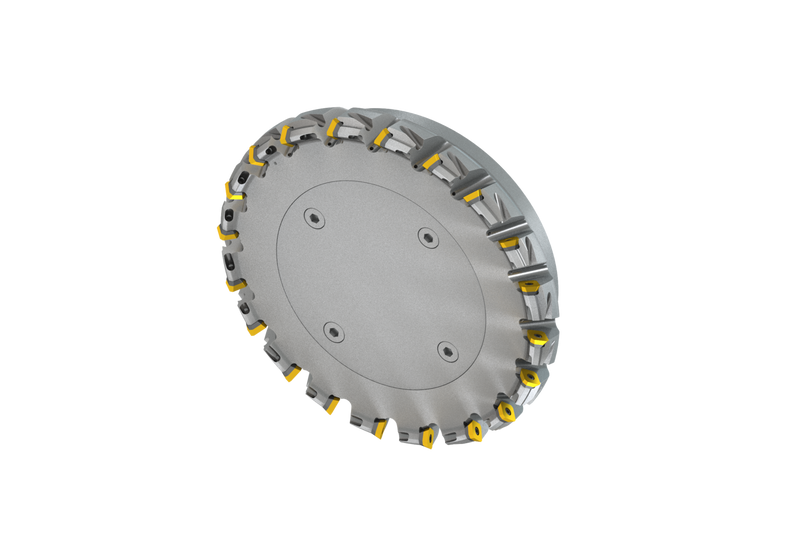

Fraise à surfacer à géométrie positive/négative qui utilise 20 plaquettes simple-face SDET 13T3.., SDMT 13T3.. ou XDET 13T3.., diamètre de coupe 250mm à maximum 262.8mm avec un angle d'attaque de 45° et un alésage de connexion de 60mm selon DIN 8030-C, 63mm fonctionnel et, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 6.4mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250C20R-S45SD13F-C
Product Number8202796
Product FamilySSD13F
Insert Geometry
Depth of Cut Max — mm (APMX)6.4 mm

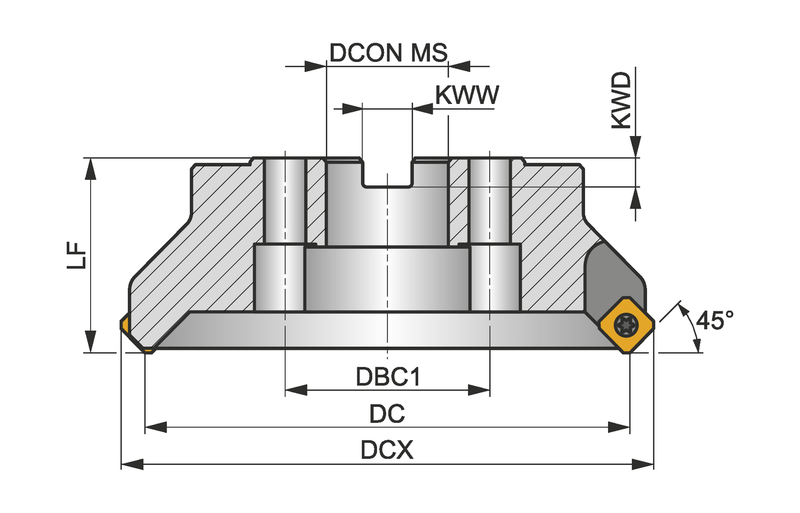

Dimensions
Cutting Diameter — in (DC)9.843"
Cutting Diameter — mm (DC)250.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)20
Tool Information
Tool DesignSSD13F
ShankFraise-scie DIN 8030 C
Through Coolant Yes
Reference Numbers
EDP Number8202796
EAN3603603977334
File Type Download
250C20R-S45SD13F-C — 3D Model STP Download
250C20R-S45SD13F-C — 2D Model DXF Download
250C20R-S45SD13F-C — Line Drawing PDF Download
