1000C14R-IS45SD13F-C
1000C14R-IS45SD13F-C
1000C14R-IS45SD13F-C

1000C14R-IS45SD13F-C

UGC DOR8202812
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,190.00 CAD - $2,190.00 CAD
$2,190.00 CAD
$2,190.00 CAD - $2,190.00 CAD
$2,190.00 CAD

Vendu en lots de : 1

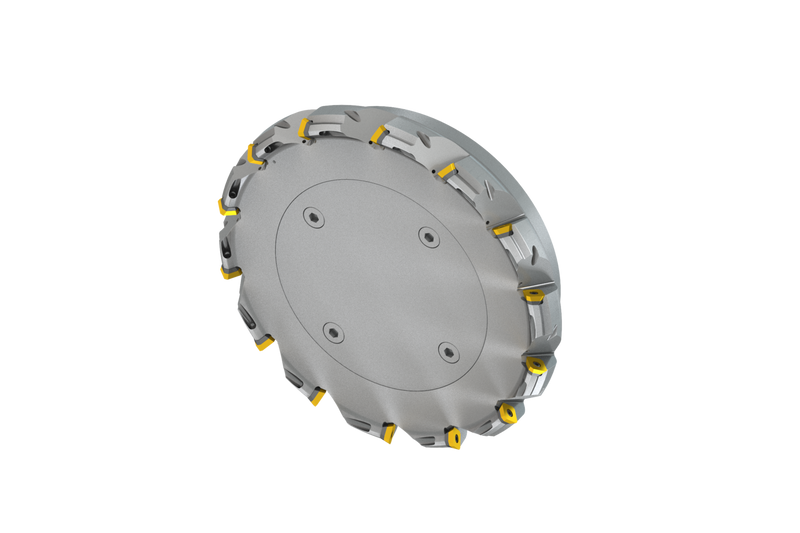

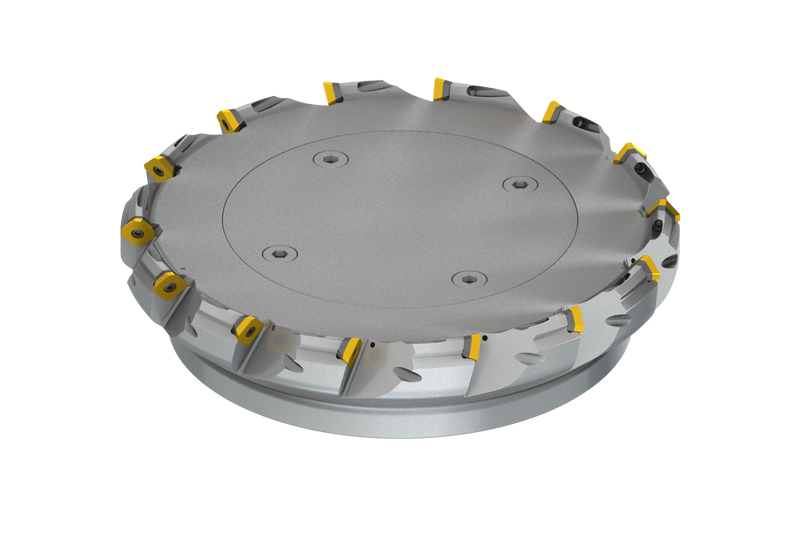

Fraise à surfacer à géométrie positive/négative utilisant 14 plaquettes simple face SDET 13T3.., SDMT 13T3.. ou XDET 13T3.., diamètre de coupe de 10.000" à 10.504" maximum avec un angle d'attaque de 45° et un alésage de connexion de 2.500" selon DIN 8030-C, 2.480" fonctionnel et, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0.252"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)1000C14R-IS45SD13F-C
Product Number8202812
Product FamilyISSD13F

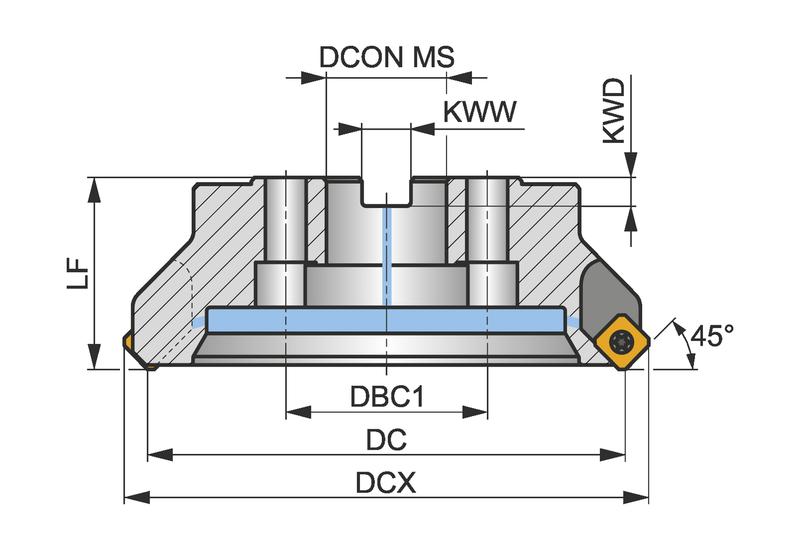

Dimensions
Cutting Diameter — in (DC)10.0"
Cutting Diameter — mm (DC)245.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)60.8 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)61.3 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignSSD13F
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8202812
EAN3603603977471
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
1000C14R-IS45SD13F-C — 3D Model STP Download
1000C14R-IS45SD13F-C — 2D Model DXF Download
1000C14R-IS45SD13F-C — Line Drawing PDF Download
