50A06R-SMOSN11-C
50A06R-SMOSN11-C
50A06R-SMOSN11-C

50A06R-SMOSN11-C

UGC DOR7799341
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$843.00 CAD - $843.00 CAD
$843.00 CAD
$843.00 CAD - $843.00 CAD
$843.00 CAD

Vendu en lots de : 1

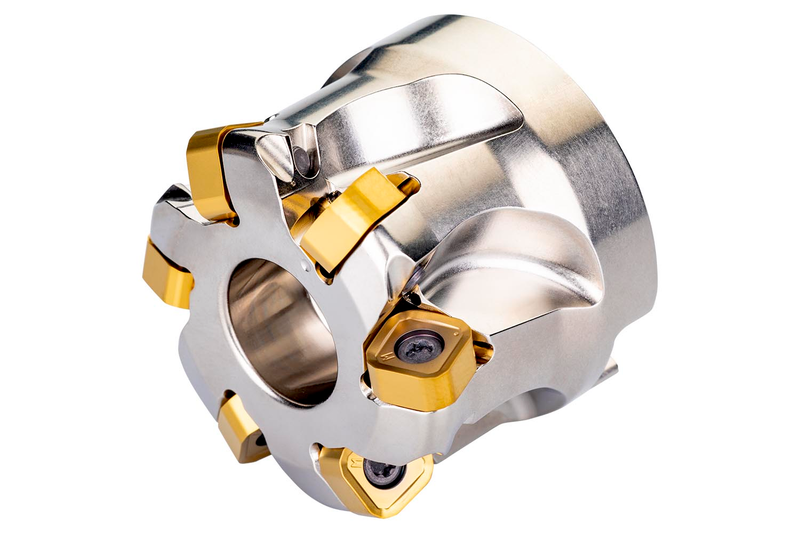

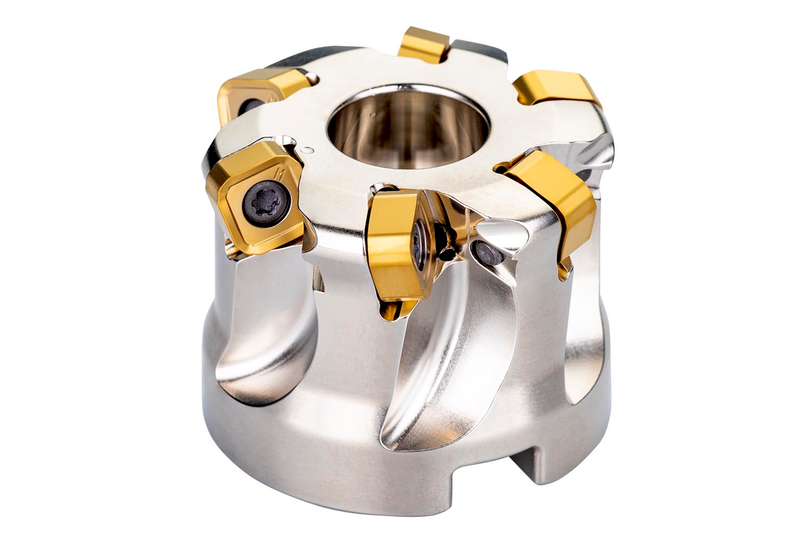

Fraise grande avance à double géométrie négative utilisant 6 plaquettes double face SNGX 1104.., diamètre de coupe 50 mm avec un angle d'attaque de 18° et un alésage de raccordement de 22 mm selon DIN 8030-C, longueur de saillie de 40 mm, arrosage par l'intérieur et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en piqué et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-SMOSN11-C
Product Number7799341
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

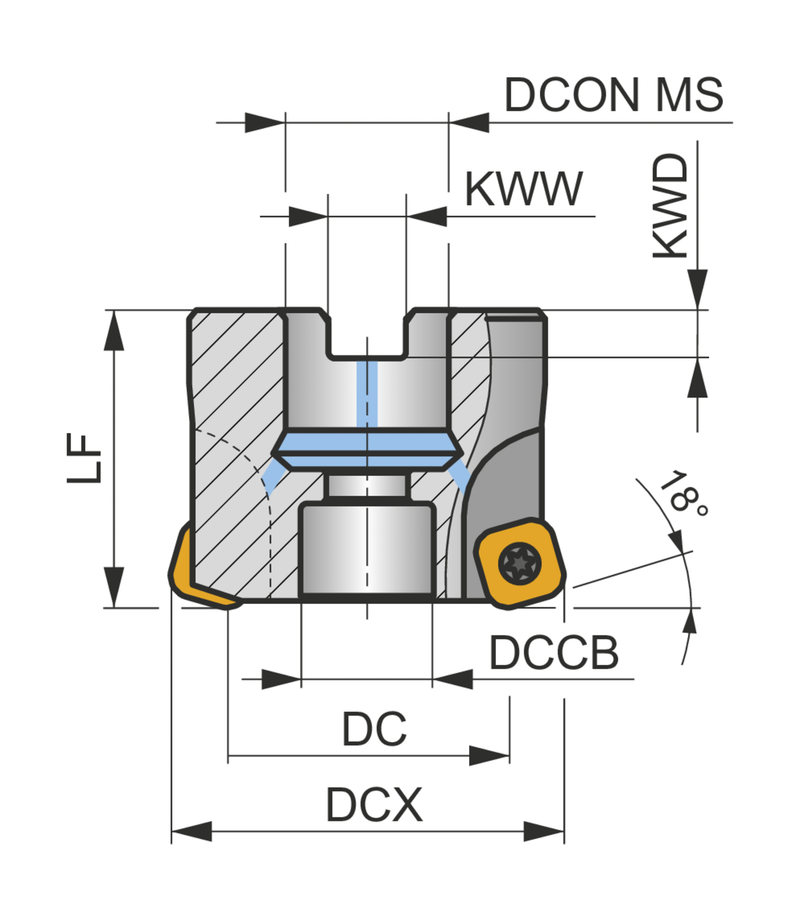

Dimensions
Cutting Diameter — in (DC)1.421"
Cutting Diameter — mm (DC)36.1 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSN11
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799341
EAN3603603672369
File Type Download
50A06R-SMOSN11-C — 3D Model STP Download
50A06R-SMOSN11-C — 2D Model DXF Download
50A06R-SMOSN11-C — Line Drawing PDF Download
