32E3R040M16-SSN11-C
32E3R040M16-SSN11-C
32E3R040M16-SSN11-C

32E3R040M16-SSN11-C

UGC DOR7799394
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$586.00 CAD - $586.00 CAD
$586.00 CAD
$586.00 CAD - $586.00 CAD
$586.00 CAD

Vendu en lots de : 1

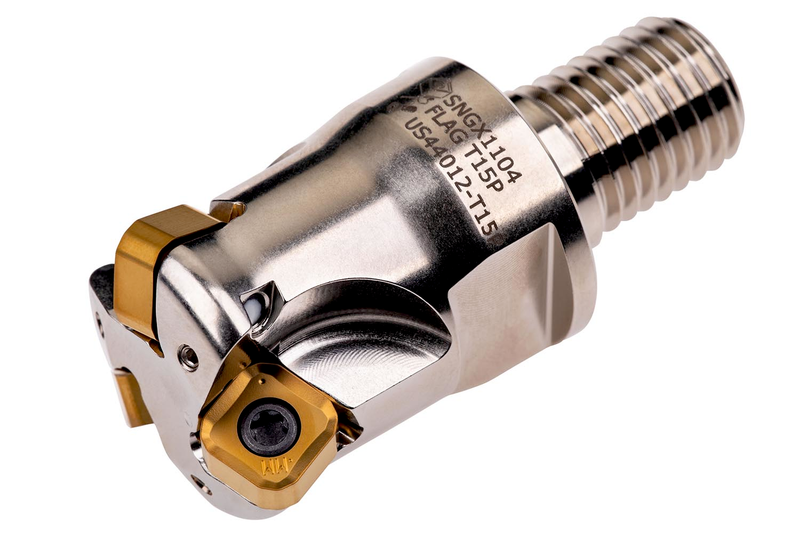

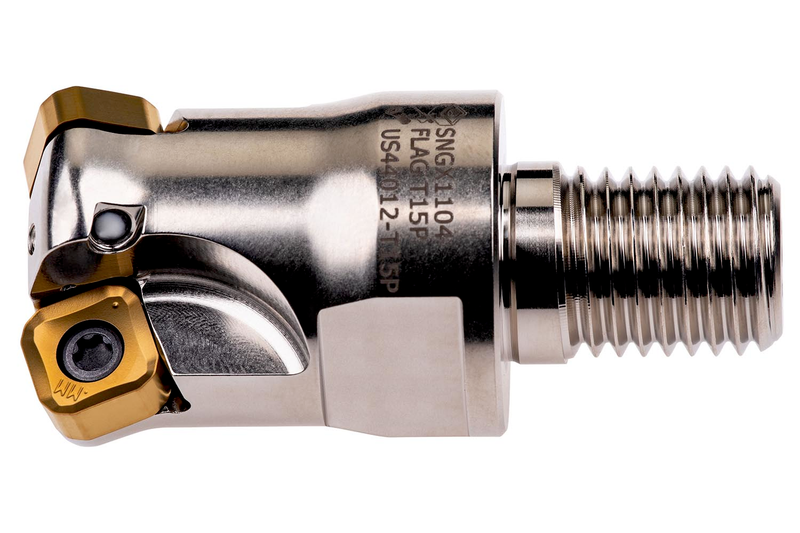

Fraise à avance rapide à géométrie double négative qui utilise 3 inserts double face SNGX 1104..., diamètre de coupe de 32 mm avec un angle d'attaque de 18° et une queue filetée M16 pour porte-outils modulaires standard, longueur de dépassement de 40 mm, arrosage central pour le surfaçage, la copiage, l'interpolation hélicoïdale, l'usinage en plongée et l'usinage en plongée progressive avec une profondeur de coupe maximale de 1,7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E3R040M16-SSN11-C
Product Number7799394
Product FamilySSN11
Insert Geometry
Depth of Cut Max — mm (APMX)1.7 mm

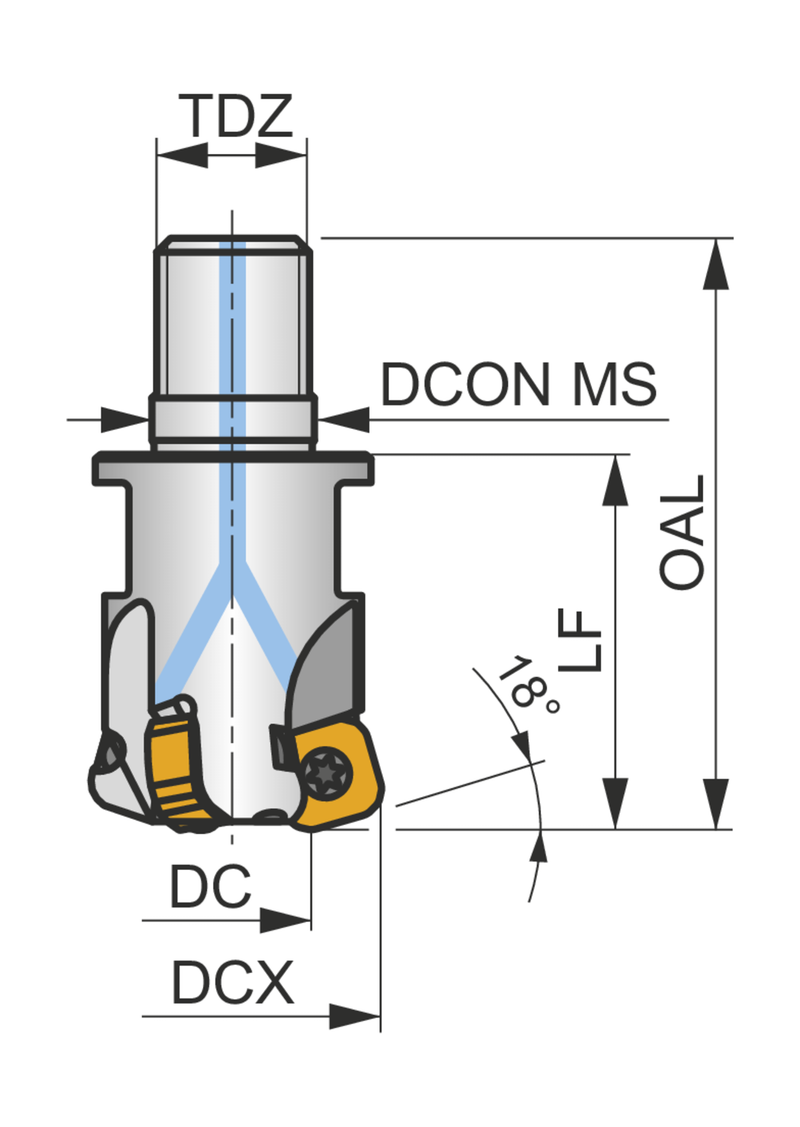

Dimensions
Cutting Diameter — in (DC)0.72"
Cutting Diameter — mm (DC)18.3 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSSN11
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7799394
EAN3603603672529
File Type Download
32E3R040M16-SSN11-C — 3D Model STP Download
32E3R040M16-SSN11-C — 2D Model DXF Download
32E3R040M16-SSN11-C — Line Drawing PDF Download
