200A05R-ISMOSN11-C
200A05R-ISMOSN11-C
200A05R-ISMOSN11-C

200A05R-ISMOSN11-C

UGC DOR7800652
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$812.00 CAD - $812.00 CAD
$812.00 CAD
$812.00 CAD - $812.00 CAD
$812.00 CAD

Vendu en lots de : 1

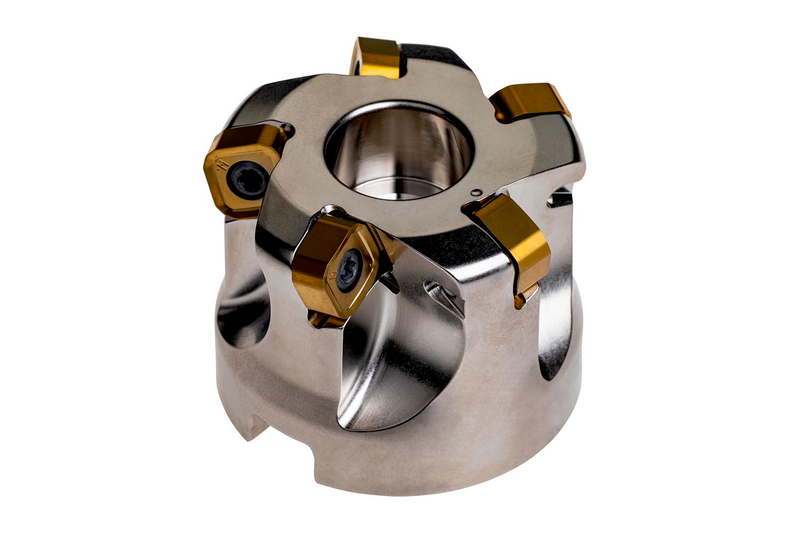

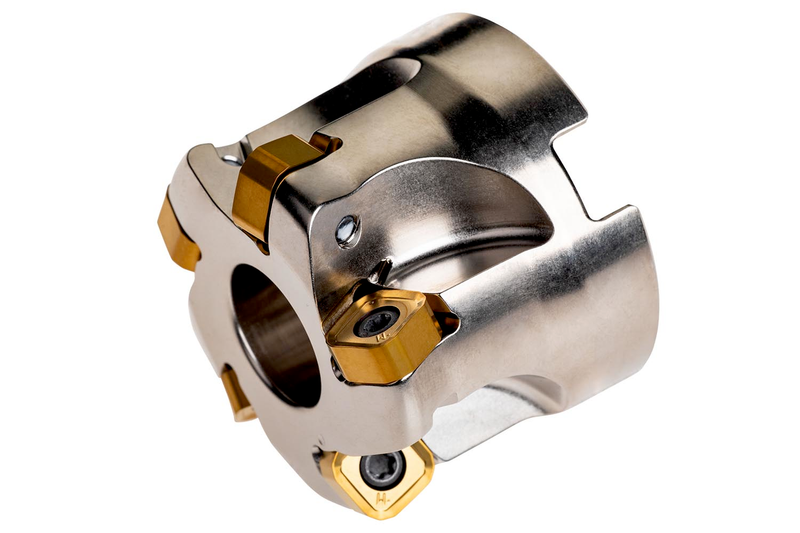

Fraise grande avance à double géométrie négative utilisant 5 plaquettes double face SNGX 1104, diamètre de coupe de 2,000" avec un angle d'attaque de 18° et un alésage de raccordement de 0,750" selon DIN 8030-C, une longueur de dépassement de 1,575", arrosage par l'intérieur et pas différentiel pour le surfaçage, la copie, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,067"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A05R-ISMOSN11-C
Product Number7800652
Product FamilyISSN11

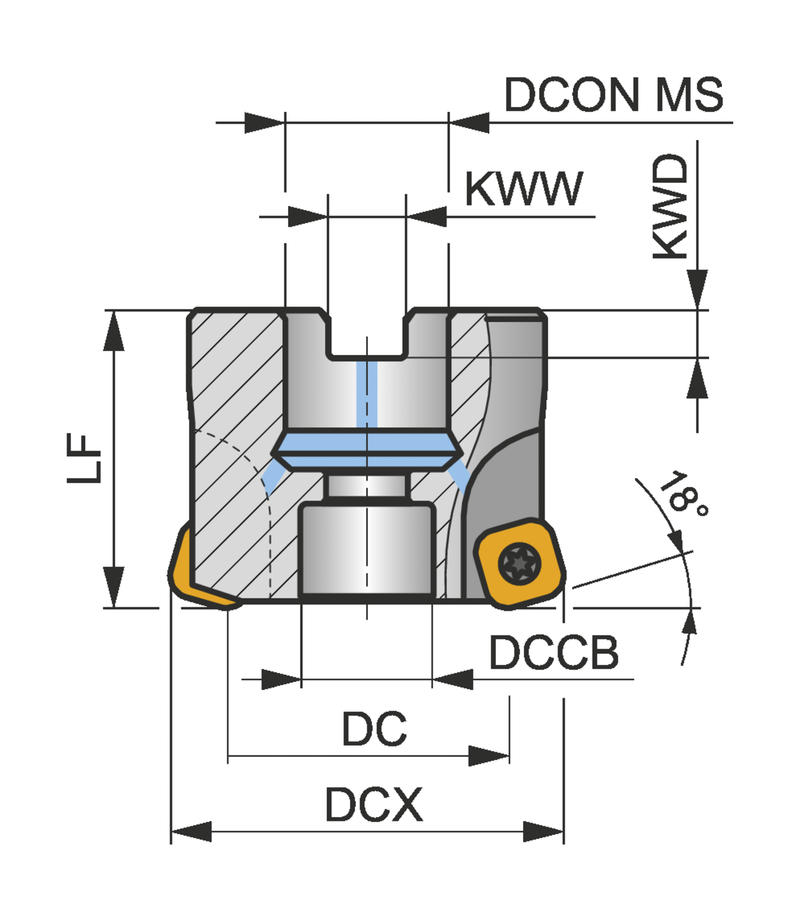

Dimensions
Cutting Diameter — in (DC)1.453"
Cutting Diameter — mm (DC)36.9 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSSN11
ShankFraise cylindrique deux tailles DIN 8030 A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number7800652
EAN3603603675025
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
200A05R-ISMOSN11-C — 3D Model STP Download
200A05R-ISMOSN11-C — 2D Model DXF Download
200A05R-ISMOSN11-C — Line Drawing PDF Download
