250A08R-ISMOSN11-C
250A08R-ISMOSN11-C
250A08R-ISMOSN11-C

250A08R-ISMOSN11-C

UGC DOR7800655
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,045.00 CAD - $1,045.00 CAD
$1,045.00 CAD
$1,045.00 CAD - $1,045.00 CAD
$1,045.00 CAD

Vendu en lots de : 1

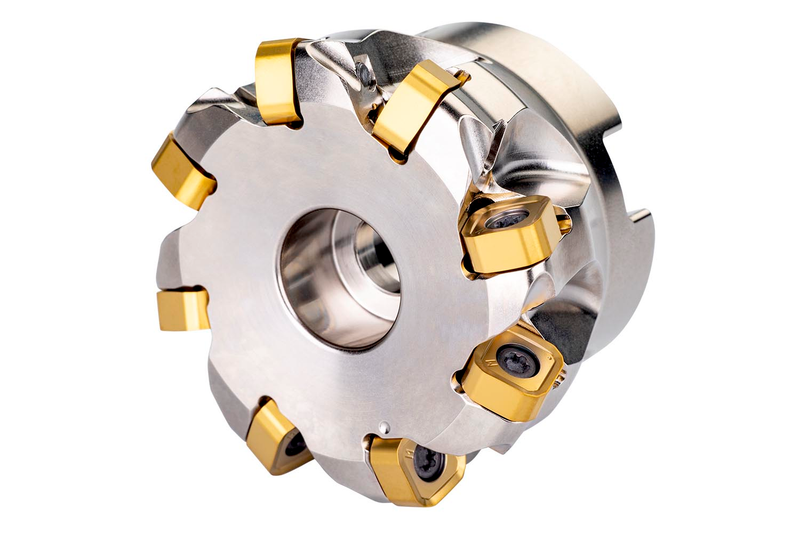

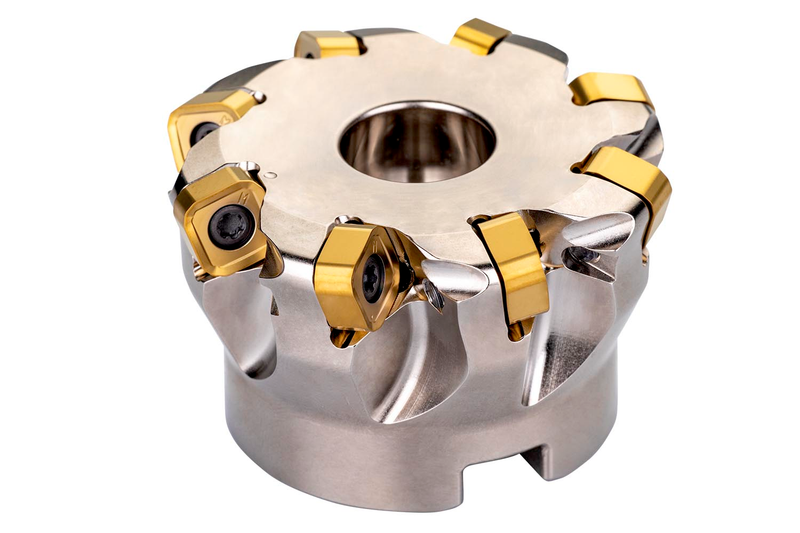

Fraise à avance élevée avec une géométrie double négative qui utilise 8 plaquettes double face SNGX 1104.., diamètre de coupe 2.500" avec un angle d'attaque de 18° et un alésage de raccordement de 0.750" selon DIN 8030-C, une longueur de dépassement de 1.575", arrosage interne et pas différentiel pour le surfaçage, le fraisage en copie, le ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 0,067"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A08R-ISMOSN11-C
Product Number7800655
Product FamilyISSN11

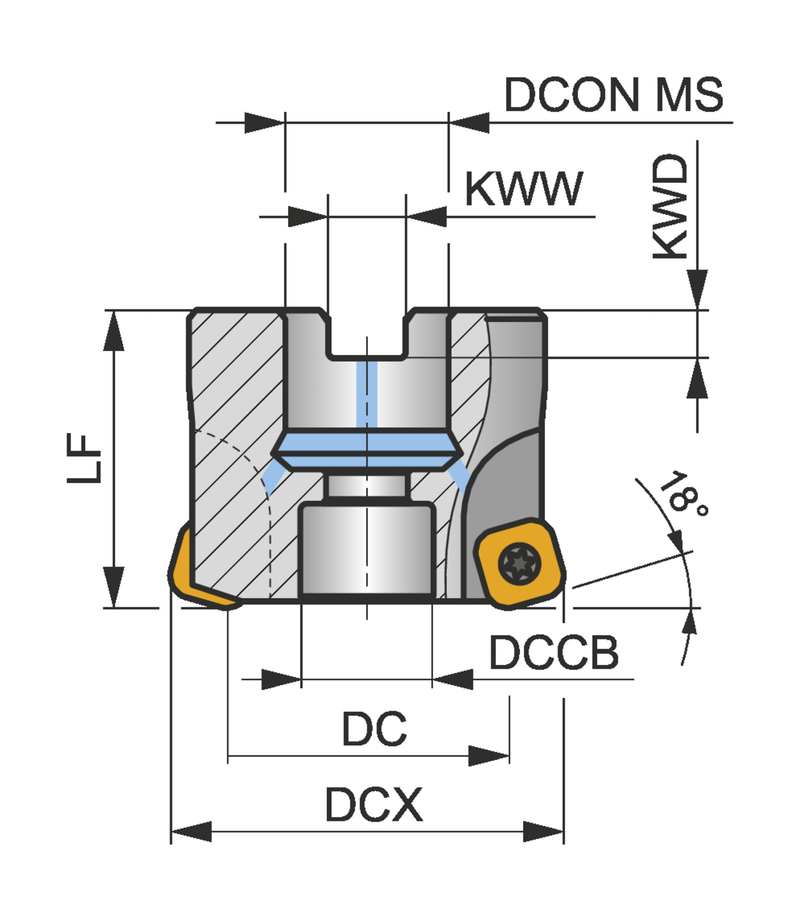

Dimensions
Cutting Diameter — in (DC)1.953"
Cutting Diameter — mm (DC)49.6 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSSN11
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7800655
EAN3603603675056
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
250A08R-ISMOSN11-C — 3D Model STP Download
250A08R-ISMOSN11-C — 2D Model DXF Download
250A08R-ISMOSN11-C — Line Drawing PDF Download
