SNGX 110416SR-MM:M8340
SNGX 110416SR-MM:M8340

SNGX 110416SR-MM:M8340

UGC DOR7799795
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.11 CAD - $31.11 CAD
$31.11 CAD
$31.11 CAD - $31.11 CAD
$31.11 CAD

Vendu en lots de : 10

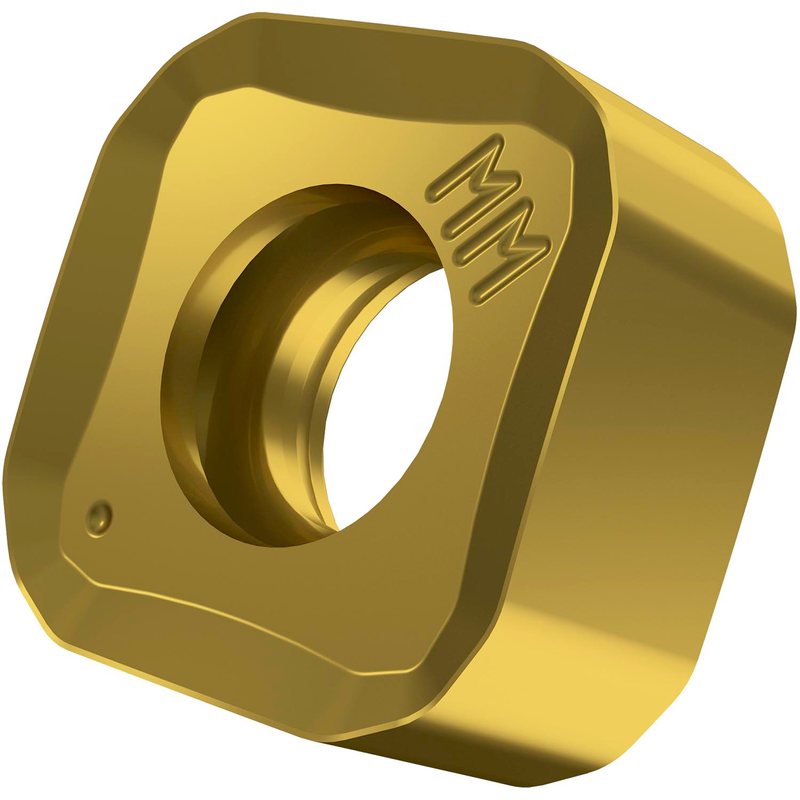

Plaquette de fraisage double face SNGX 1104, carrée pour une profondeur de coupe maximale de 1,7 mm, avec un rayon de coin de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie MM avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8340 dans les plages de nuances ISO P25 -P50/M20 -M40 et S20 -S30 pour l'usinage de l'acier, de l'acier inoxydable et des superalliages avec des fraises à avance rapide SSN11

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNGX 110416SR-MM:M8340
GradeM8340
Chipbreaker (CBMD)MM
Product Number7799795
Product FamilySNGX 11

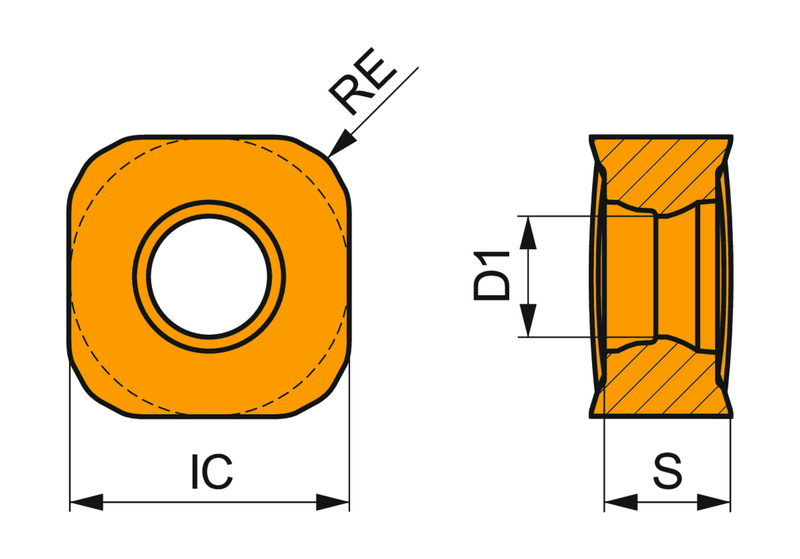

Insert Geometry
Insert DesignSNGX 11
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.417"
Inscribed Circle Dia. — mm (IC)10.6 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number7799795
EAN3603603672826
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNGX 110416SR-MM:M8340 — Line Drawing PDF Download
