SNGX 110416SR-HM:M9325
SNGX 110416SR-HM:M9325

SNGX 110416SR-HM:M9325

UGC DOR8174620
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.11 CAD - $31.11 CAD
$31.11 CAD
$31.11 CAD - $31.11 CAD
$31.11 CAD

Vendu en lots de : 10

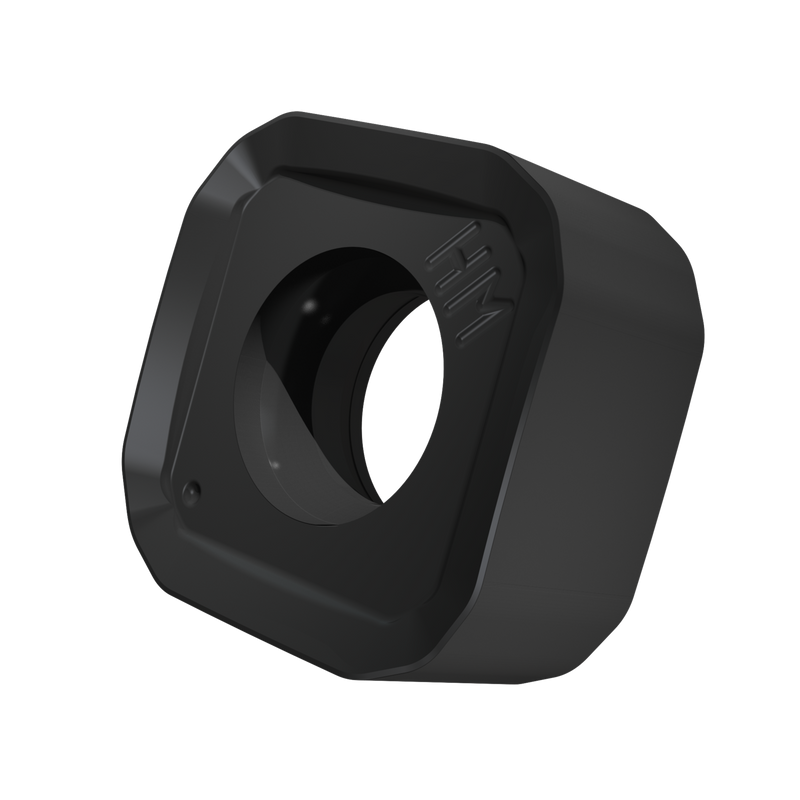

Plaquette de fraisage double face SNGX 1104, carrée pour une profondeur de coupe maximale de 1,7 mm, avec rayon de coin de 1,6 mm, une précision d'indexage selon la classe de tolérance ISO-G et une géométrie HM avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M9325 MT-CVD dans les plages de nuances ISO P10 -P30 et K10 -K30 pour l'usinage de l'acier et de la fonte avec les fraises à avancement élevé SSN11

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNGX 110416SR-HM:M9325
Chipbreaker (CBMD)SM
Product Number8174620
Product FamilySNGX 11

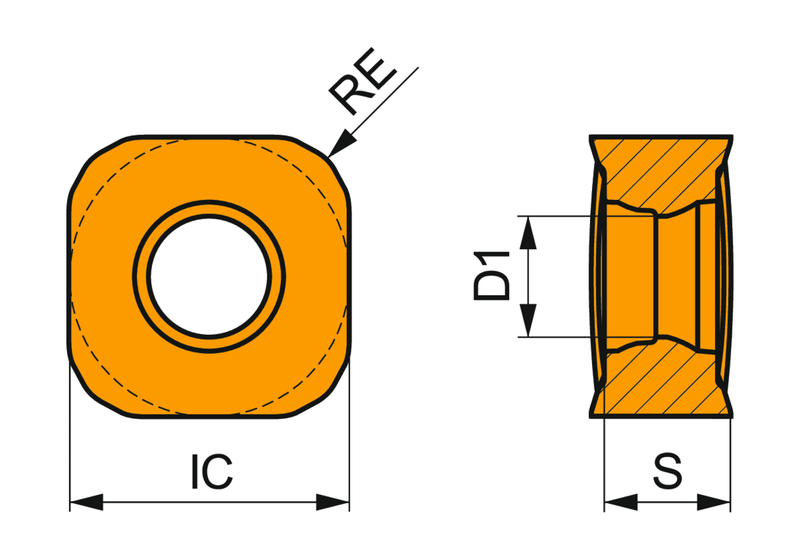

Insert Geometry
Insert DesignSNGX 11
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.417"
Inscribed Circle Dia. — mm (IC)10.6 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8174620
EAN3603603942066
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNGX 110416SR-HM:M9325 — Line Drawing PDF Download
