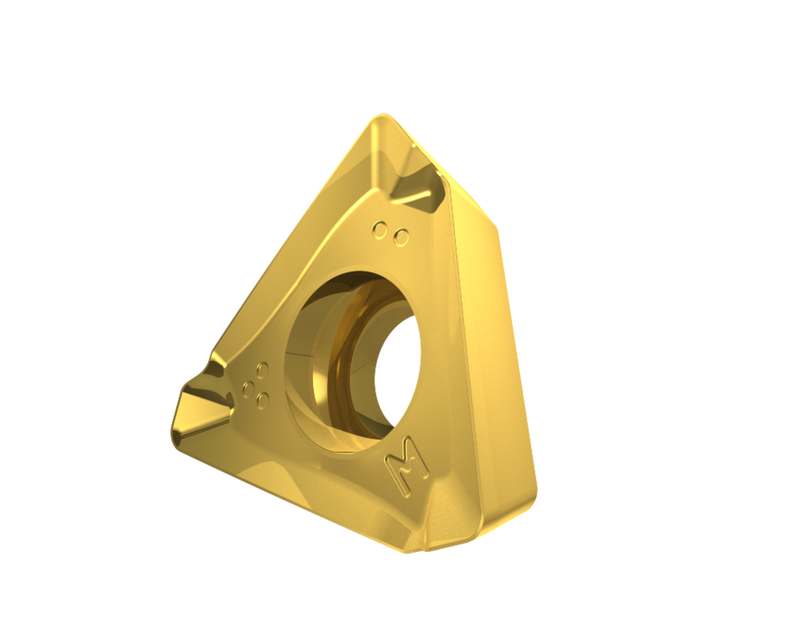

TDET 170408SR-M:M8340

TDET 170408SR-M:M8340

UGC DOR8782286
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 0,813 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie M avec des arêtes de coupe et un méplat arrondis, en carbure WC-Co à grain fin revêtu PVD M8340 dans les plages de nuances ISO P25-P50/M20-M40 pour l'usinage de l'acier et de l'acier inoxydable avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408SR-M:M8340
GradeM8340
Chipbreaker (CBMD)M
Product Number8782286
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782286
EAN3603604536196
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage possible
S — High Temperature Alloys Utilisation possible
File Type Download
TDET 170408SR-M:M8340 — Line Drawing PDF Download
