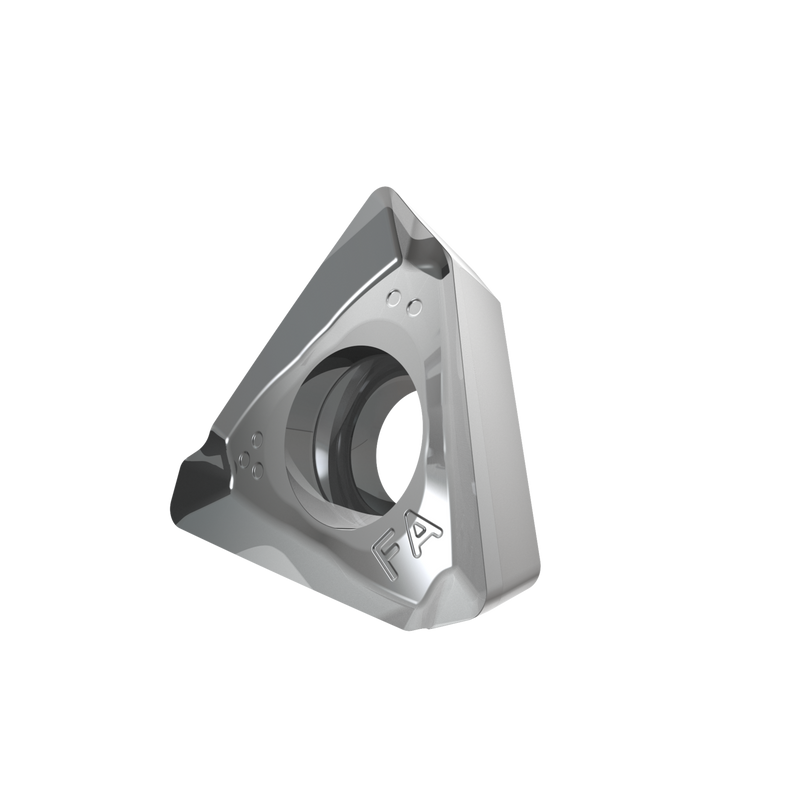

TDET 170408FR-FA:HF7

TDET 170408FR-FA:HF7

UGC DOR8782386
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.16 CAD - $16.16 CAD
$16.16 CAD
$16.16 CAD - $16.16 CAD
$16.16 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'', avec un rayon d'angle de 0,032'', une précision de positionnement selon la classe de tolérance ISO-E et une géométrie FA avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grain fin non revêtu HF7 dans la gamme de nuances ISO N10 -N25 pour l'usinage de métaux non ferreux avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408FR-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number8782386
Product FamilyTDET 17-FA
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782386
EAN3603604536394
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
TDET 170408FR-FA:HF7 — Line Drawing PDF Download
