175C14R-S90TD17D-C
175C14R-S90TD17D-C

175C14R-S90TD17D-C

UGC DOR8782518
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,412.00 CAD - $1,412.00 CAD
$1,412.00 CAD
$1,412.00 CAD - $1,412.00 CAD
$1,412.00 CAD

Vendu en lots de : 1

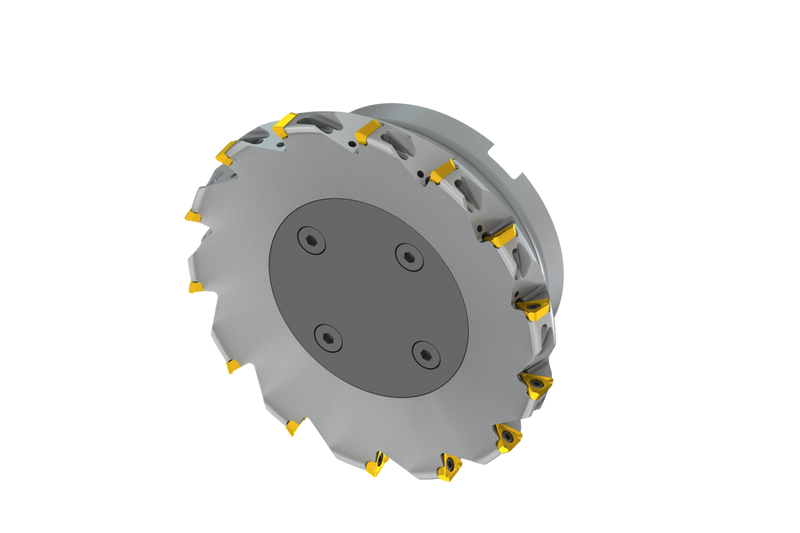

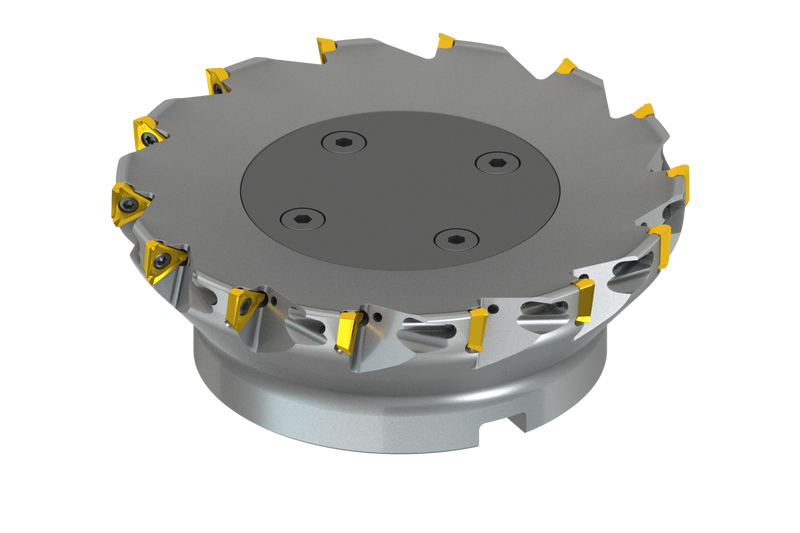

Fraise à épaulement à géométrie positive/négative qui utilise 14 plaquettes unilatérales TDMT 1704... ou TDET 1704..., diamètre de coupe 175 mm avec un angle d'attaque de 90° et un alésage de connexion de 40 mm selon DIN 8030-C, une longueur de saillie de 63 mm, arrosage centralisé et pas différentiel pour le surfaçage en bout d'épaulement peu profond, le rainurage peu profond, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 11,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)175C14R-S90TD17D-C
Product Number8782518
Product FamilyMST17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)6.89"
Cutting Diameter — mm (DC)175.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignMST17
ShankFraise conique DIN 8030 C
Reference Numbers
EDP Number8782518
EAN3603604536707
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
175C14R-S90TD17D-C — 3D Model STP Download
175C14R-S90TD17D-C — 2D Model DXF Download
