200A04R-IS90TD17D-C
200A04R-IS90TD17D-C

200A04R-IS90TD17D-C

UGC DOR8782606
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$514.00 CAD - $514.00 CAD
$514.00 CAD
$514.00 CAD - $514.00 CAD
$514.00 CAD

Vendu en lots de : 1

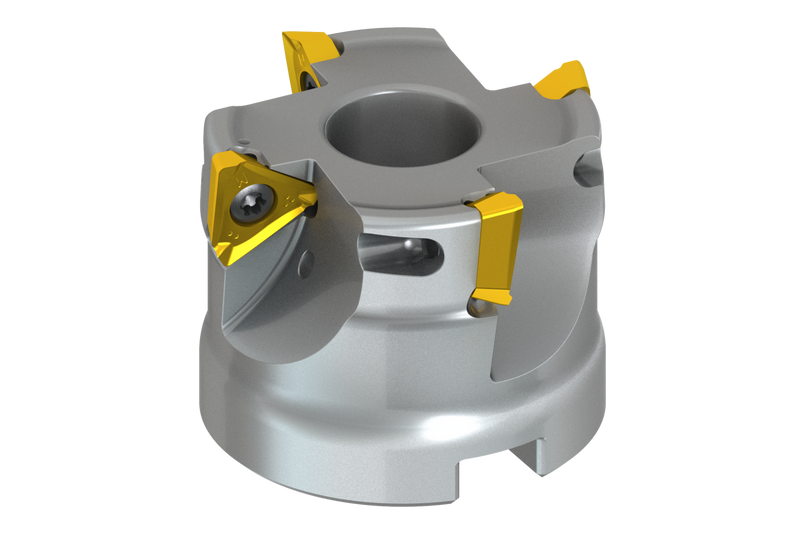

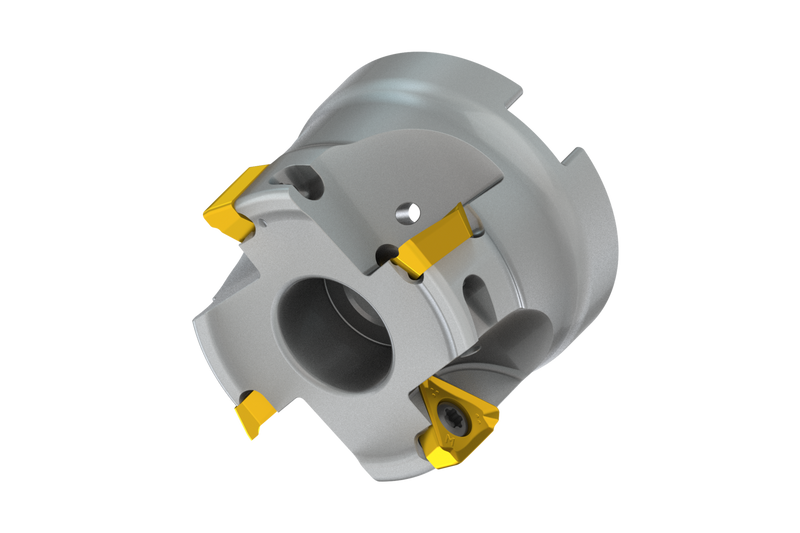

Fraise à épaule avec géométrie positive/négative qui utilise 4 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 2.000'' avec un angle d'attaque de 90° et un alésage de connexion de .750'' selon DIN 8030-A, longueur de dépassement de 1.575'', arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de .433''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A04R-IS90TD17D-C
Product Number8782606
Product FamilyISTD17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)50.8 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignMST17
ShankFraise cloche DIN 8030 A
Reference Numbers
EDP Number8782606
EAN3603604536806
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
200A04R-IS90TD17D-C — 3D Model STP Download
200A04R-IS90TD17D-C — 2D Model DXF Download
