400A10R-IS90TD17D-C
400A10R-IS90TD17D-C

400A10R-IS90TD17D-C

UGC DOR8782663
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$918.00 CAD - $918.00 CAD
$918.00 CAD
$918.00 CAD - $918.00 CAD
$918.00 CAD

Vendu en lots de : 1

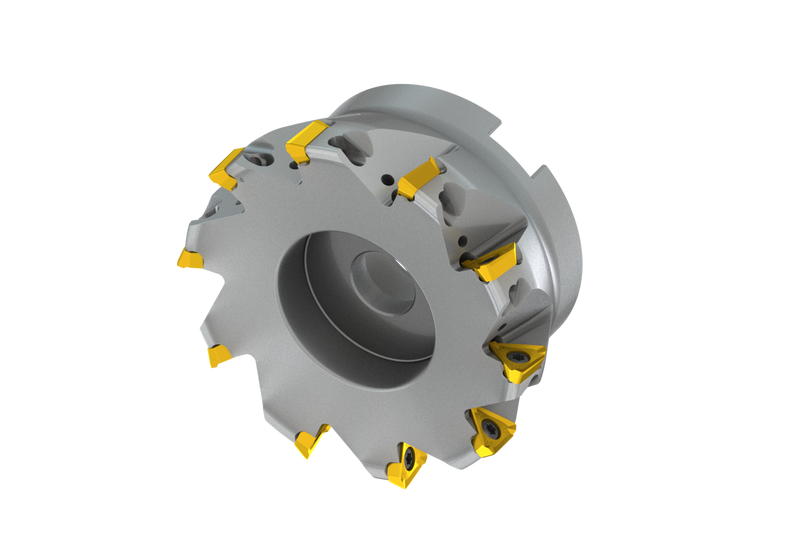

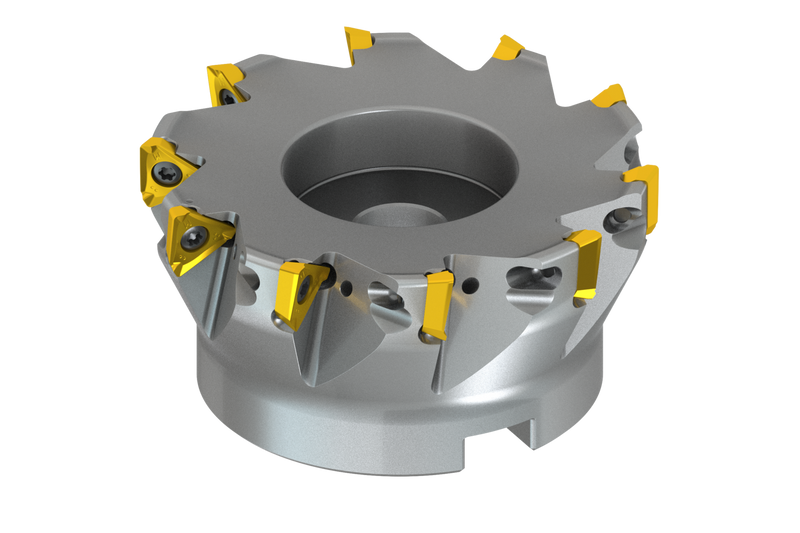

Fraise à épaulement à géométrie positive/négative qui utilise 10 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 4.000'' avec angle d'approche de 90° et alésage de raccordement de 1.500'' selon DIN 8030-A, longueur de dépassement de 1.969'', arrosage interne et pas différentiel pour fraisage d'épaulement peu profond, fraisage de rainures peu profondes, fraisage en ramping, fraisage hélicoïdal, fraisage en plongée et fraisage en plongée progressive avec une profondeur de coupe maximale de 0.433''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400A10R-IS90TD17D-C
Product Number8782663
Product FamilyISTD17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Dimensions
Cutting Diameter — in (DC)4.0"
Cutting Diameter — mm (DC)101.6 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignMST17
ShankFraise à surfacer-dresser DIN 8030 A
Reference Numbers
EDP Number8782663
EAN3603604536875
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
400A10R-IS90TD17D-C — 3D Model STP Download
400A10R-IS90TD17D-C — 2D Model DXF Download
