25A3R034A25-STN10-C
25A3R034A25-STN10-C
25A3R034A25-STN10-C

25A3R034A25-STN10-C

UGC DOR7178468
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$363.00 CAD - $363.00 CAD
$363.00 CAD
$363.00 CAD - $363.00 CAD
$363.00 CAD

Vendu en lots de : 1

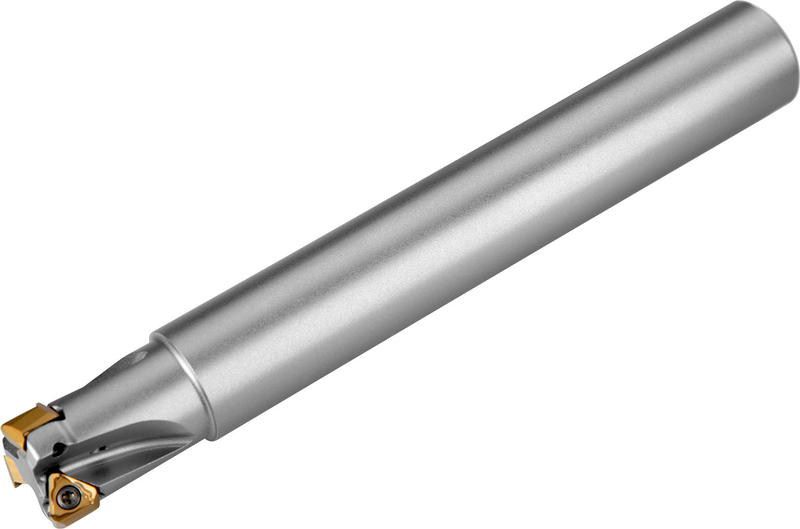

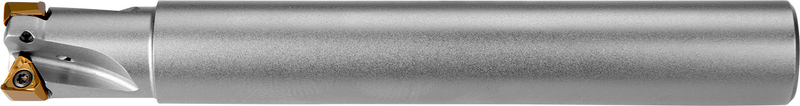

Fraise à surfacer d'épaulement à géométrie double négative utilisant 3 plaquettes double face TNGX 1004.., diamètre de coupe 25mm avec un angle d'attaque de 90° et une queue cylindrique de 25mm selon DIN 1835A, longueur fonctionnelle de 34mm et longueur totale de 170mm, arrosage par l'intérieur pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A3R034A25-STN10-C
Product Number7178468
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

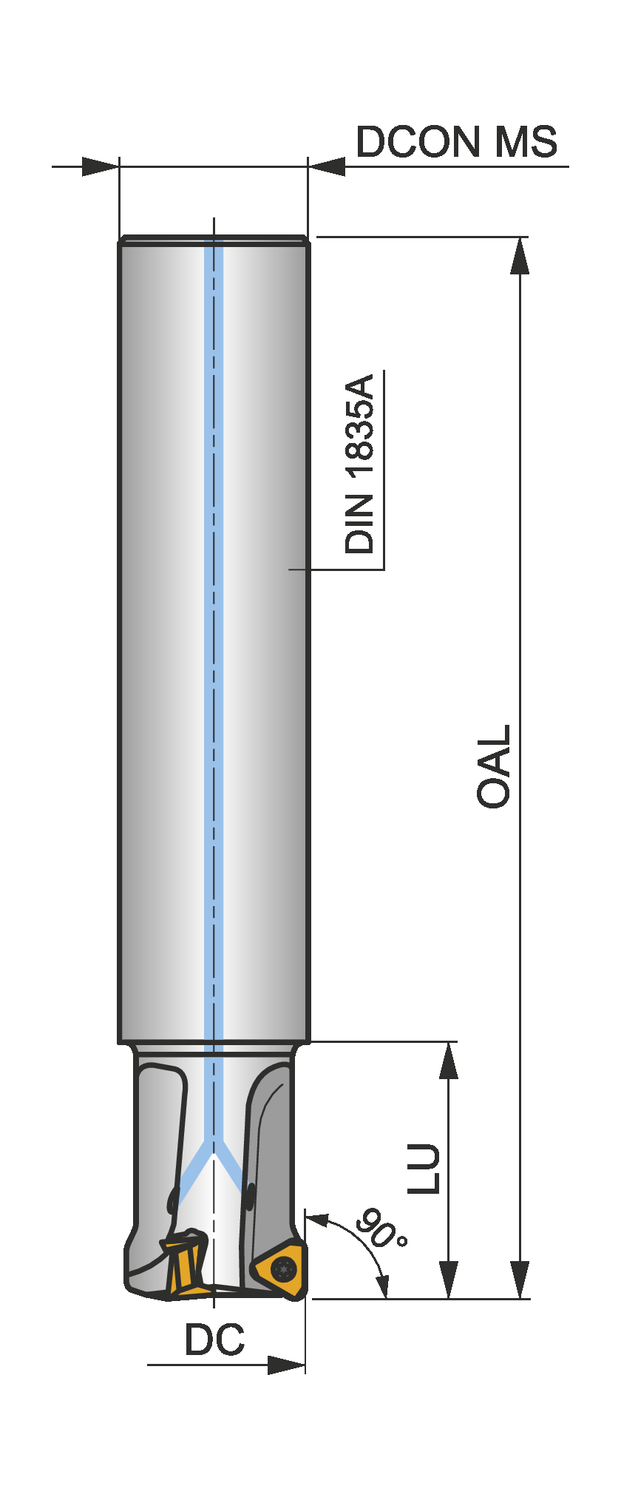

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)6.693"
Overall Length — mm (OAL)170.0 mm
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSTN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178468
EAN3603603173118
File Type Download
25A3R034A25-STN10-C — 3D Model STP Download
25A3R034A25-STN10-C — 2D Model DXF Download
25A3R034A25-STN10-C — Line Drawing PDF Download
