40A04R-S90TN10-C
40A04R-S90TN10-C
40A04R-S90TN10-C

40A04R-S90TN10-C

UGC DOR7178521
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$440.00 CAD - $440.00 CAD
$440.00 CAD
$440.00 CAD - $440.00 CAD
$440.00 CAD

Vendu en lots de : 1

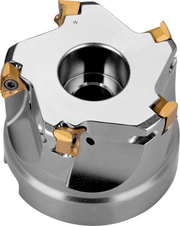

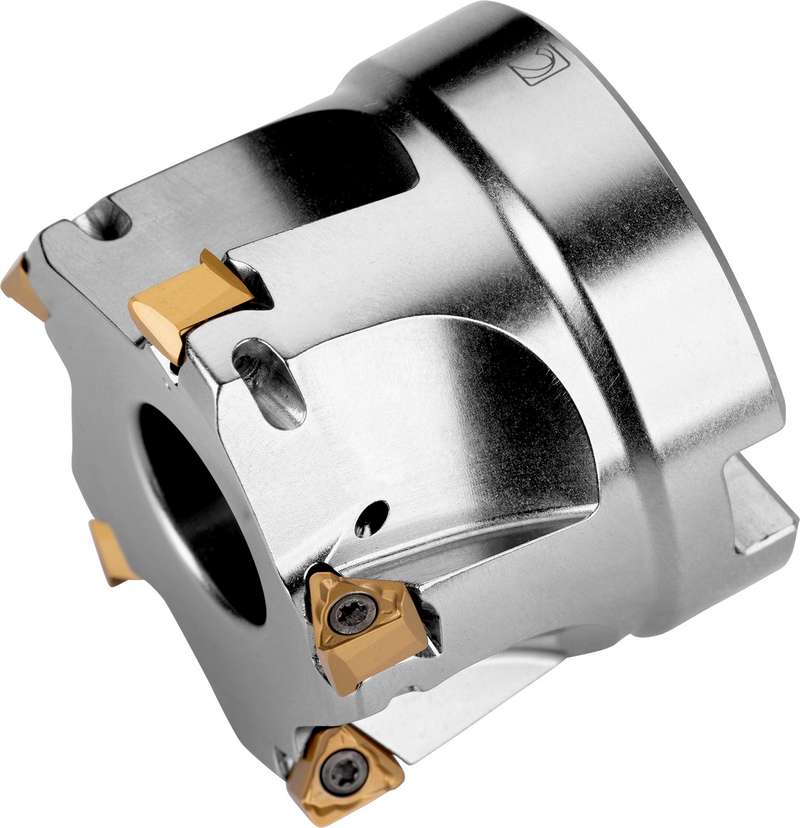

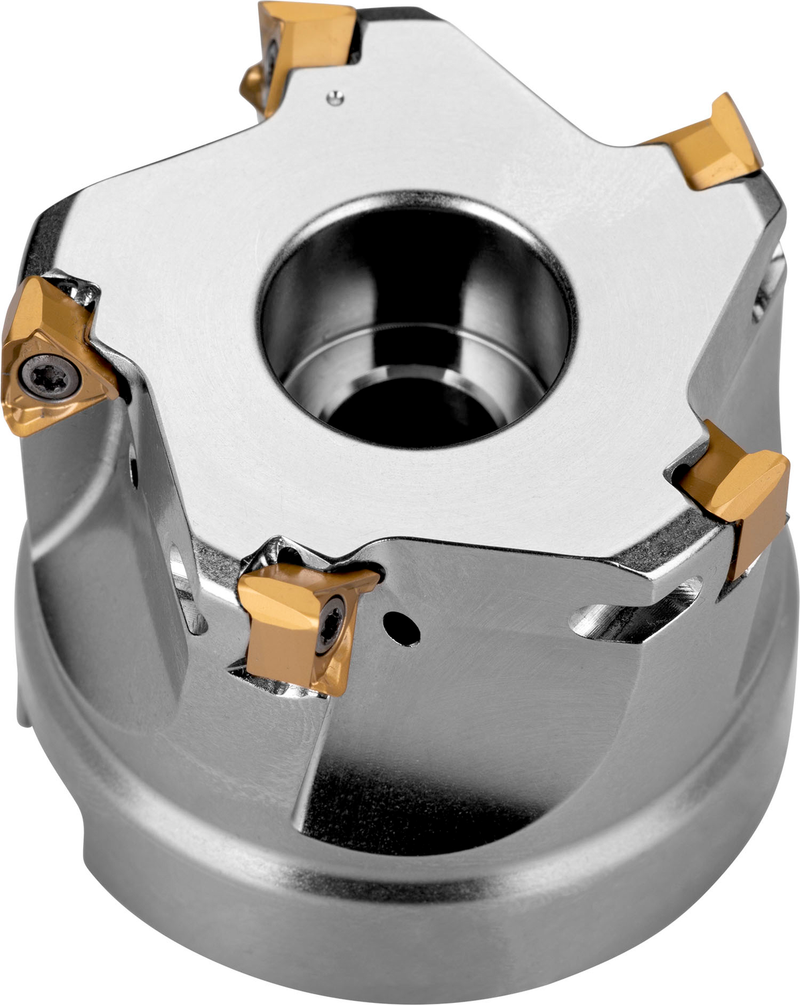

Fraise à surfacer-équarrir à géométrie double négative utilisant 4 plaquettes TNGX 1004... double-face, diamètre de coupe 40 mm avec angle d'attaque 90° et alésage de connexion 16 mm selon DIN 8030-A, longueur de dépassement 40 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A04R-S90TN10-C
Product Number7178521
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

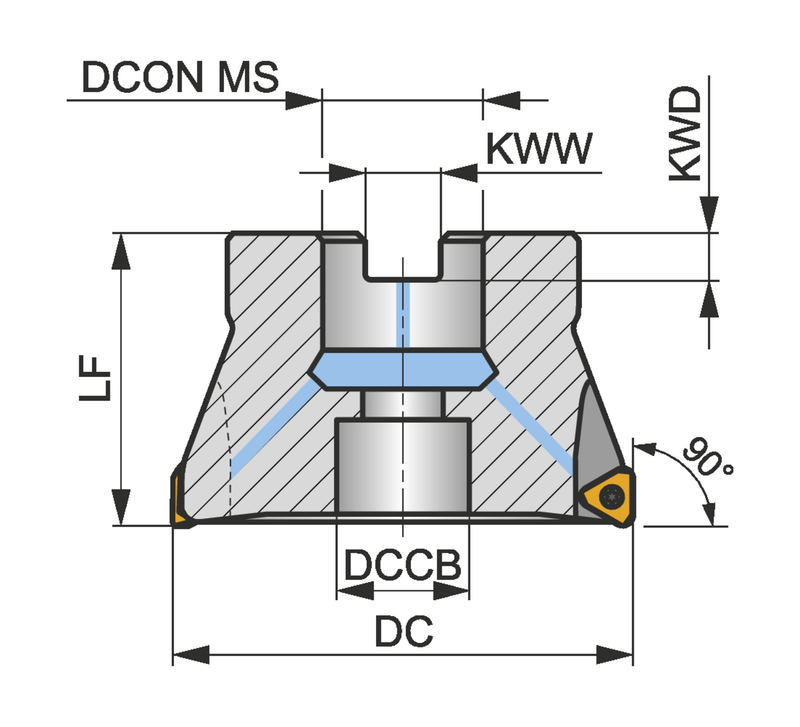

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN10
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178521
EAN3603603173293
File Type Download
40A04R-S90TN10-C — 3D Model STP Download
40A04R-S90TN10-C — 2D Model DXF Download
40A04R-S90TN10-C — Line Drawing PDF Download
