125A4R150W125-ISTN10-C
125A4R150W125-ISTN10-C
125A4R150W125-ISTN10-C

125A4R150W125-ISTN10-C

UGC DOR7276929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$420.00 CAD - $420.00 CAD
$420.00 CAD
$420.00 CAD - $420.00 CAD
$420.00 CAD

Vendu en lots de : 1

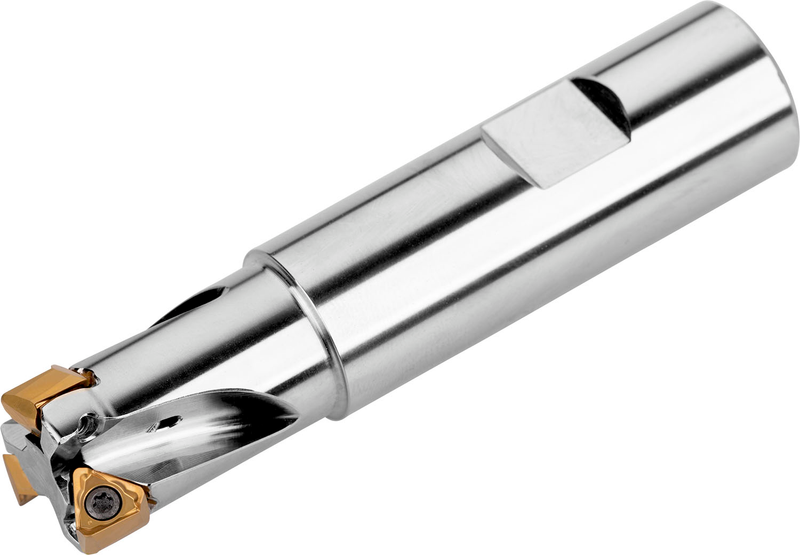

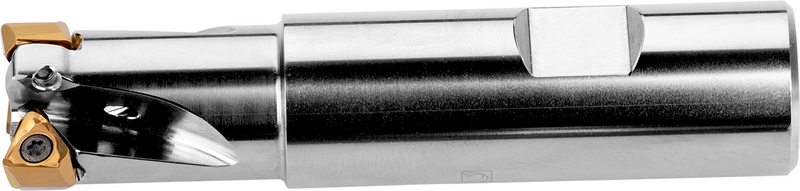

Fraise à surfacer d'épaulement avec double géométrie négative qui utilise 4 plaquettes double-face TNGX 1004.., diamètre de coupe 1.250'' avec angle d'attaque de 90° et queue Weldon de 1.250'' selon DIN 1835B, longueur fonctionnelle de 1.500'' et longueur totale de 4.331'', arrosage interne pour le surfaçage, le fraisage d'épaulement peu profond et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A4R150W125-ISTN10-C
Product Number7276929
Product FamilyISTN10

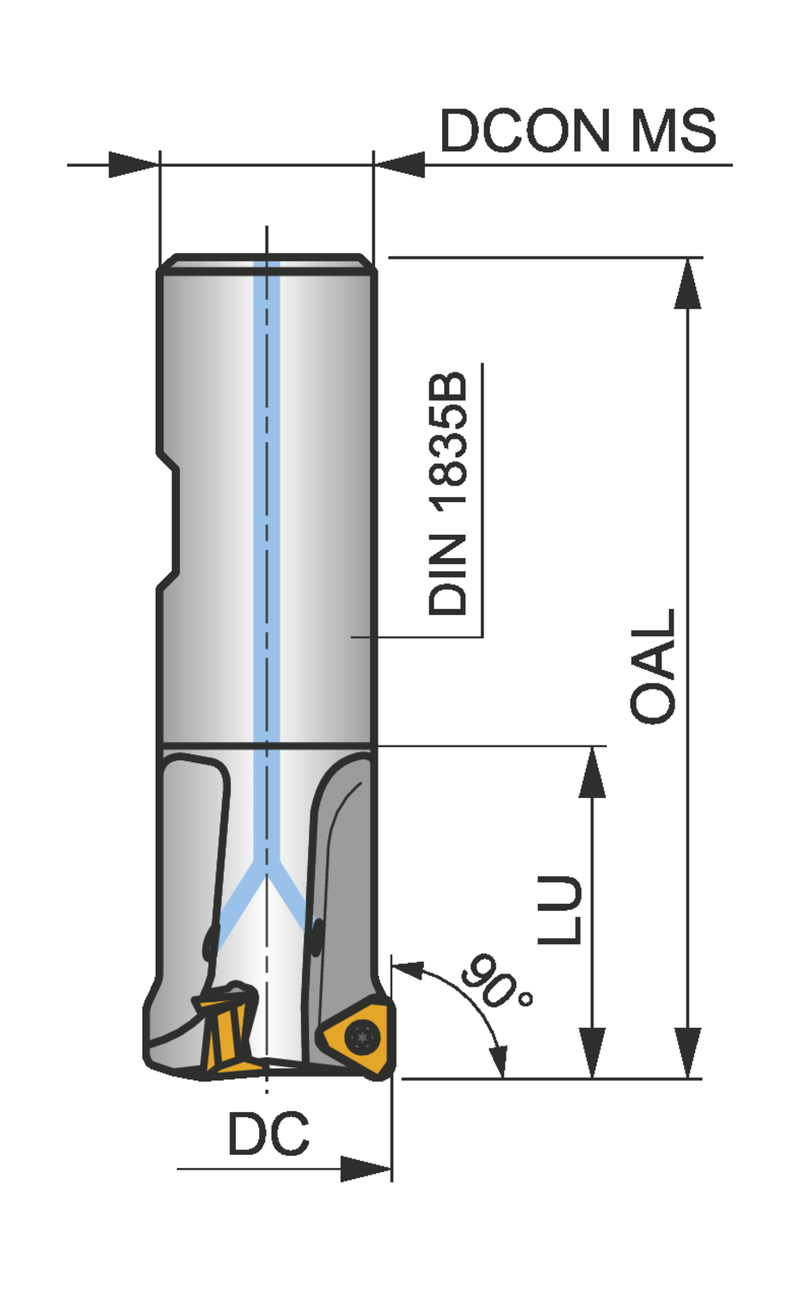

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — in (LU)1.5"
Usable Length — mm (LU)38.1 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276929
EAN3603603242128
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
125A4R150W125-ISTN10-C — 3D Model STP Download
125A4R150W125-ISTN10-C — 2D Model DXF Download
125A4R150W125-ISTN10-C — Line Drawing PDF Download
