125A5R169M16-ISTN10-C
125A5R169M16-ISTN10-C

125A5R169M16-ISTN10-C

UGC DOR7276942
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$409.00 CAD - $409.00 CAD
$409.00 CAD
$409.00 CAD - $409.00 CAD
$409.00 CAD

Vendu en lots de : 1

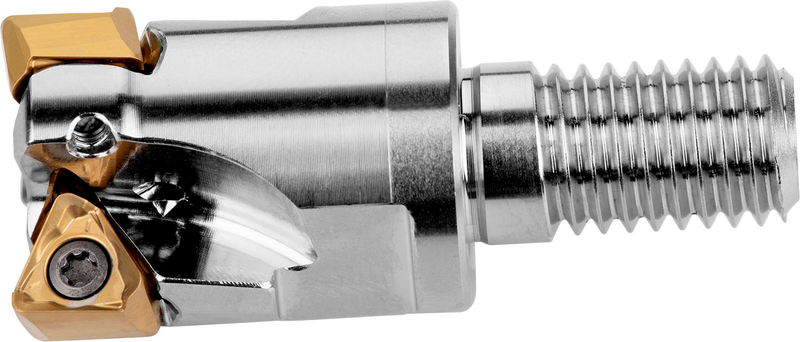

Fraise à surfacer d'épaulement à géométrie double négative qui utilise 5 plaquettes double face TNGX 1004.., diamètre de coupe 1,250'' avec angle d'attaque de 90° et queue filetée M16 pour porte-outils modulaires standard, longueur de dépassement de 1,693'', arrosage central pour le surfaçage, le fraisage d'épaulement peu profond et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A5R169M16-ISTN10-C
Product Number7276942
Product FamilyISTN10

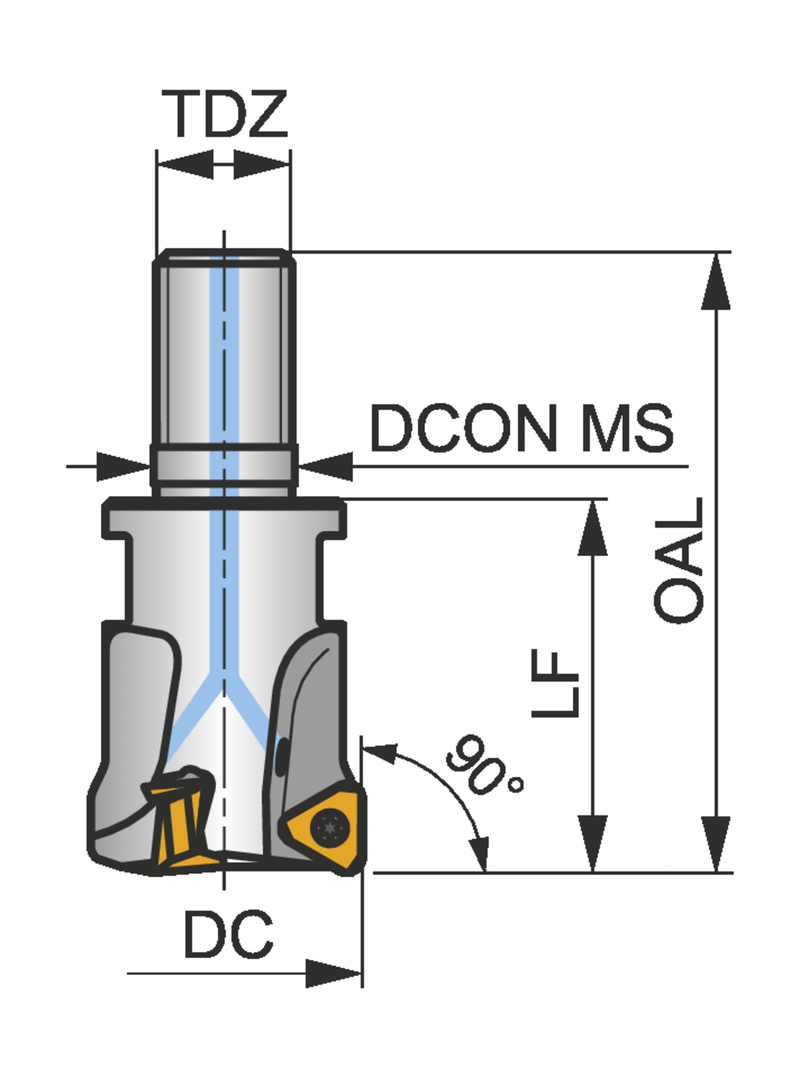

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSTN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276942
EAN3603603242258
File Type Download
125A5R169M16-ISTN10-C — 3D Model STP Download
125A5R169M16-ISTN10-C — 2D Model DXF Download
125A5R169M16-ISTN10-C — Line Drawing PDF Download
