250A06R-IS90TN10-C
250A06R-IS90TN10-C
250A06R-IS90TN10-C

250A06R-IS90TN10-C

UGC DOR7276922
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$656.00 CAD - $656.00 CAD
$656.00 CAD
$656.00 CAD - $656.00 CAD
$656.00 CAD

Vendu en lots de : 1

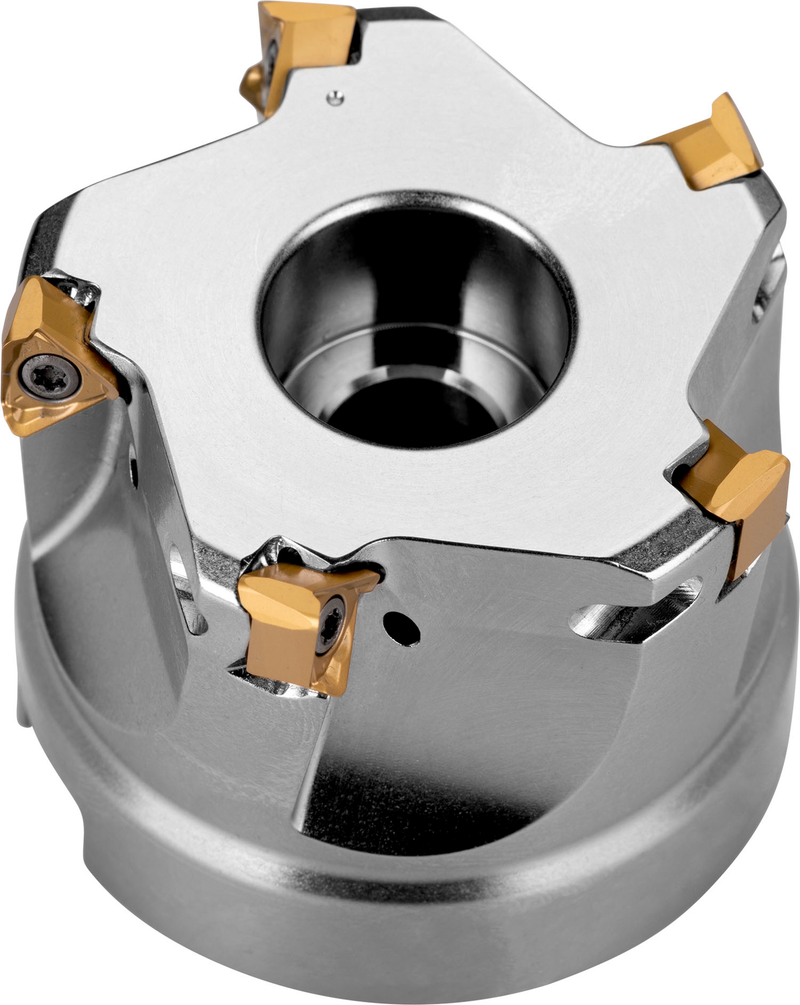

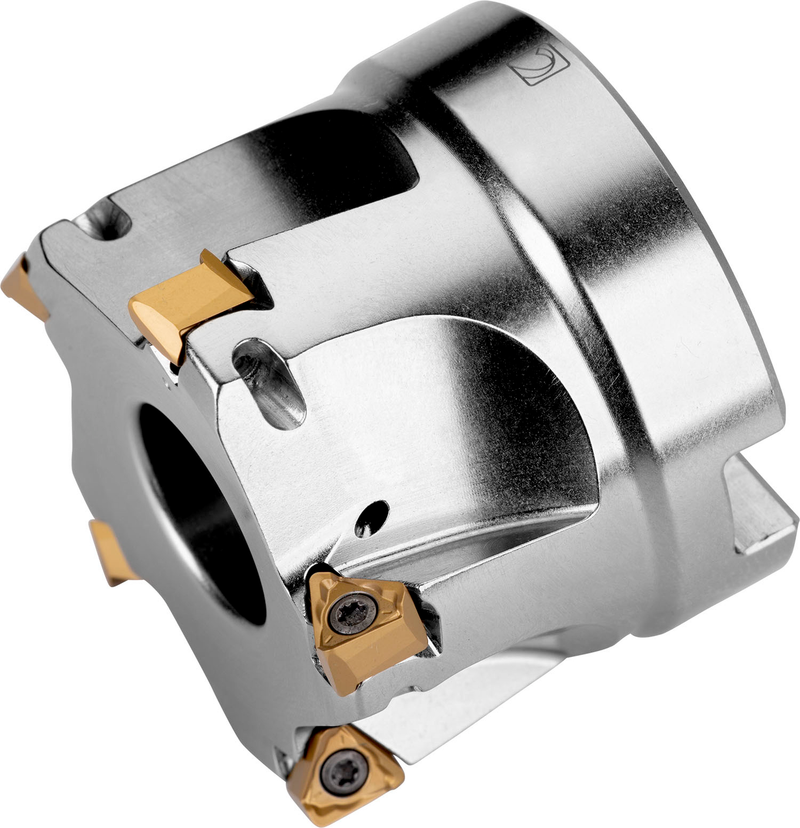

Fraise à surfacer-équarrir avec géométrie double négative utilisant 6 plaquettes double face TNGX 1004.., diamètre de coupe 2,500'' avec un angle d'attaque de 90° et un alésage de connexion de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-IS90TN10-C
Product Number7276922
Product FamilyISTN10

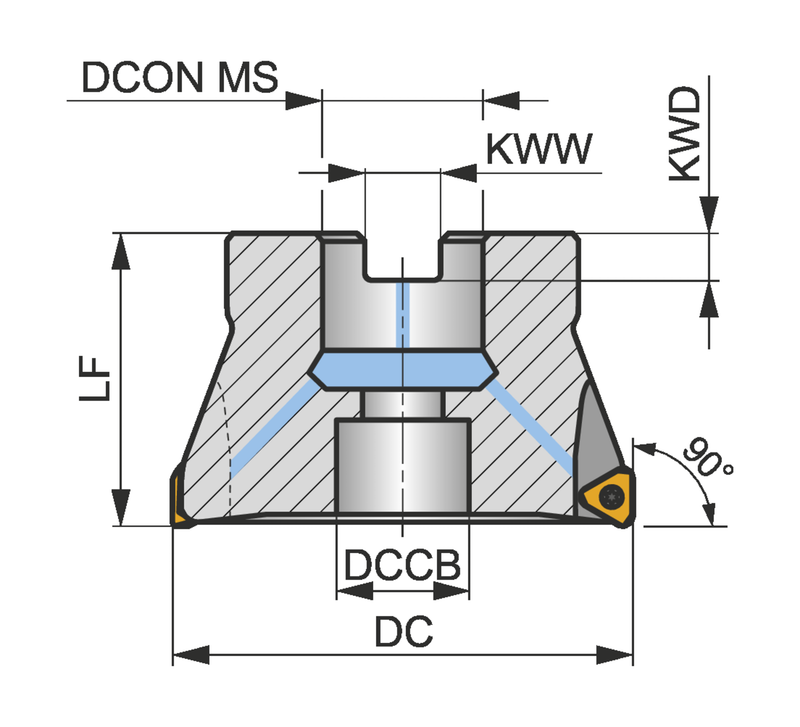

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSTN10
ShankFraise-cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276922
EAN3603603242050
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
250A06R-IS90TN10-C — 3D Model STP Download
250A06R-IS90TN10-C — 2D Model DXF Download
250A06R-IS90TN10-C — Line Drawing PDF Download
